12m 13m 17m 19m Steel Power Pole Burial Type For Electric
Specification:
| Material: | Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50 |
| Pole’s height | 3m –15m |
| length | Within 16m once forming without slip joint |
| Wall thickness | 2.3mm-30mm |
| Pole's Shape: | Round, Polygonal, Octagonal, Taper round, Round conical, Square |
| Arm type: | Single arm, Double arm, Tri-arm, Four-arm |
| Application: | Outdoor illumination, Road illumination, Street illumination |
| welding |
It has past flaw testing, internal and external double welding makes the welding beautiful in shape. It confirms with the international welding standard of CWB. |
| Galvanizing |
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985. |
| Painting color: | Refer to client’s requirement and then according to (RAL)Color card |
| Finishing 1: | Black pole, Rough pole |
| Finishing 2: | Hot dip Galvanizing antirust. |
| Finishing 3: | HDG. with powder coating |
| Temperature range | -35 °C~+45 °C |
| Max wind velocity | Aganist wind pressure of 160Km/h |
| Base plate mounted |
Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
| Ground mounted | The length buried underground as per customer’s requirement. |
| Quality Control |
We are well equipped with superior production equipments, solid technical strength, excellent managing mode and quality control system, perfect after service. We have passed the ISO9001:2008 Quality Systems Authentication. |
| Certificates | ISO9001-2008, Audited Supplier, The AAA grade certificate of goodwill |
| Other | Less land occupation & easy maintenance. |

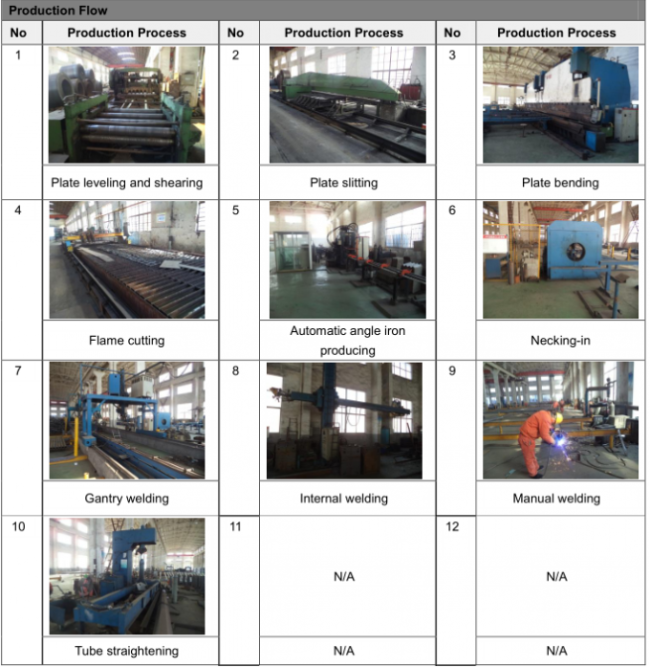

Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
The information to inquiry or purchase
-Steel pole height
-Dimension of the flange
-Position and dimension of the service door
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Wind speed
-Destination port
-Other.
Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
