20000mAh Battery Geo-Fence Portable GPS Tracker Movement Alarm
20000mAh Battery Geo-Fence Portable GPS Tracker Movement Alarm
Performance Parameters:
|
Content |
Specs. |
| Product Name | Portable GPS Tracker |
|
Dim. |
12(L)cm x 6.5(W)cm x 5(H)cm |
|
Weight |
0.450kg |
|
Functions1 |
Movement Alarm |
|
Band |
900/1800/1900MHz |
|
GPS chip |
Ublox Chip |
|
GPS sensitivity |
-159dBm |
|
GPS accuracy |
<30 m |
|
Time To First Fix |
Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
|
Work Voltage |
DC4.2V |
|
Battery |
rechangeable 3.7V / 20000Mah battery |
| Standby | 180 days |
|
Standby work current |
< 10mA |
|
Storage Temp. |
-41°C to +85°C |
|
Operation Temp. |
-20°C to +70°C |
|
Humidity |
5%--95% non-condensing |
Functional features:
- Portable GPS Tracker support E-fence function.
- With Mobile Phone App For Android and Iphone system.
- Sleep model ,20000MAH battery.
- Long standby time for 180 days
-
Low battery alarm to remind owners.
- Inlayed 3D accelerator,moving and static state, energy smart.
- Change the time interval of uploading automatically according to the speed.
- Admin checks the altitude and longitude and location information by texting.
- A-GPS(LBS+GPS) solutions,shorter locating time,higher precision.
- LED Indicator: Green LED->GPRS Work status , Blue Led ->GPS Work status,
- Alarm: Movement alarm, Overspeed alarm Drop alarm
Sleeping power-save mode
On normal status, when the unit stoped over 10minutes, it will change to sleeping mode, on this mode, the power consumption is 4mah/h only. When it get any command or been moved, it will start GPS locating automatically.
Forced sleeping mode, Setting: Send SMS “sleep+password”, the unit will reply “sleep ok”, it enter to forced sleeping power-save mode.
Start device, send SMS “nosleep+password”,the unit will reply “nosleep ok”, it start GPRS and GPS locating.
Applications:
1. Track Transport Vehicle etc.
2. Container/cargo/asset tracking
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.

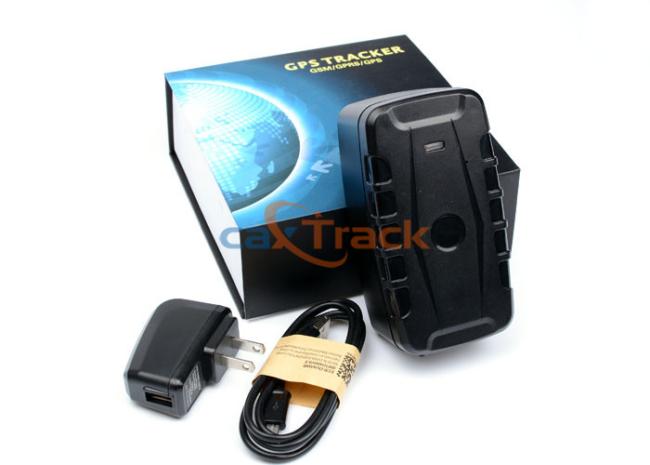

Product Configuration:
1. Standard configuration
1) Portable GPS Tracker 1 pcs
2) Charger 1 pcs
3) USB cables 1 set
4) 20000mAh Battery 1 set
