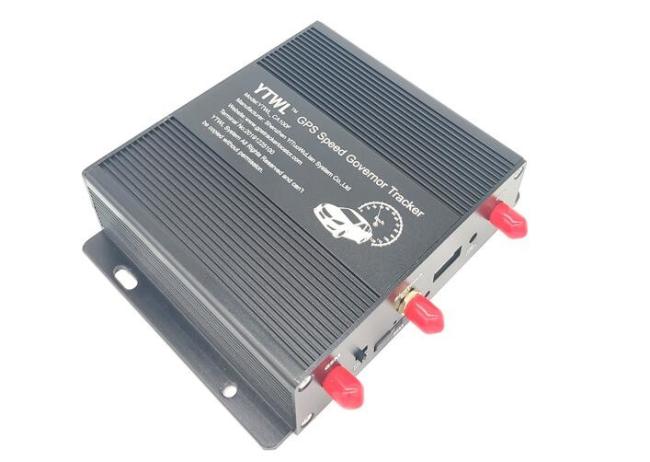

Overspeed Alert Road Speed Gonorver Steel YTWL_CA100F With 2 Years Warranty

Name: Overspeed Alert Road Speed Gonorver Steel YTWL_CA100F With 2 Years Warranty
Brand: SHENZHEN YITUOWULIAN SYSTEM CO.,LTD

Price Negotiable

Price: negotiation

MOQ: 10 pcs

Delivery Time: 1-10 working days after received your payment

Brand: cartrack

Product Description

YTWL_CA100F Electrical Speed Limiter with Ethiopia Standard Road Speed Gonorver

1 Product Specifications

Color	Black	Application	free android and IOS app
Input Fuse	5A	CPU	TI:MSP430F5419(100MHz)
Battery	Lithium battery :400mA( working time is about 3.5 hours)	Warranty	2 years
Item Name	Top selling shine	Function	camera gps fleet tracker
Working Temperature	Anna Shi	MOQ	5 Pieces
GSM Module	GSM Module:SIM5320 Band:850/900/1800/1900/2100MHz, Tally with: GSM phase 2/2+ -Class 4 (2W @ 850/900MHz) -Class 1 (1W @ 1800/1900MHz) Max RF Output: 33.0dBm±2dBm Dynamic Input Range: -15 ~ -102dBm Receiving delicacy: Class RBER≤2%(-102dBm) Frequency Stability: > 2.5ppm Max Frequency Deviation: ±0.1ppm RMS Deviation: ≤5deg	GPS Module	GPS chip set: SiRF Star III Frequency: L1, 1575.42 MHz Number of Channel: 20 Reacquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s
Current	Not working Current 16mA working Current:60~150mA Current of opening infrared of Camera at night :100~200mA Charging current: Max<500mA	Input I/O	8 I/O input/output Port 1 main power check 1 port use to check the engine ( ACC check) 1 port use to SOS 1 analog Input port( Fuel sensor) 1 Output port ( Car engine control ) 3 Extend ports ( Input/Output control by software)

YTWL_CA100F Electrical Speed Limiter with Ethiopia Standard Road Speed Gonorver

The speed limiting function shall be performed progressively in such a mariner that excessive juddering or discomfort is not caused;
The speed limiting function shall not cause engine back firing;
The speed limiter function or the road speed limiter shall not cause uncontrolled engine power;
Speed limiter devices shall be so constructed that the vehicle may not be accelerated by the operation of the acceleration devices, such as the accelerator pedal, when the vehicle is running at its set speed;
No malfunction or unauthorized interference shall result in an increase in engine power above the demanded by the position of the driver's accelerator. The malfunction of the speed limiter devices shall not affect the normal vehicular performance;
The speed limiter function shall be obtained once the vehicle speed reaches the set maximum speed regardless of the position action on the accelerator a driver may apply.

YTWL_CA100F Electrical Speed Limiter with Ethiopia Standard Road Speed Gonorver

The speed limiter function shall be independent of the condition or soundness of the speedometer ;
When the vehicle, running at its set speed and with the driver's accelerator at its position of maximum travel, is subject to an accelerating force due to a down gradient, the limiter shall control speed by restricting the engine power to the limiter's minimum
engine power control setting ;
The speed limiting device shall be so designed, constructed and assembled so as to resist vibrations, corrosion, dust, humidity, petrochemicals and aging phenomena to which it may be exposed;
The road speed limiting device shall be resistant to reverse polarity connections.

3. Technical Parameters:

Ethiopia Standard Electronic Speed Governor GSM GPS Vehicle Speed Limiter

Item	Parameters
Overall Size	20.0 X 9.2 X 4.5 CM
Host Net Weight	0.4 KG
Processing chip	STC
Speed Limiting Zone	20-200 Km/H
Speed Limiting Deviation	±5Km/H
Mechanical Bearing Capacity	400N
Working Voltage	9-36 V
Rated Power Consumption	<0.3 W
Working Current	<60 mA
