Ethiopia Car Truck Speed Limiter Town Speed Limit 30KM/H Safty Driving With Printer

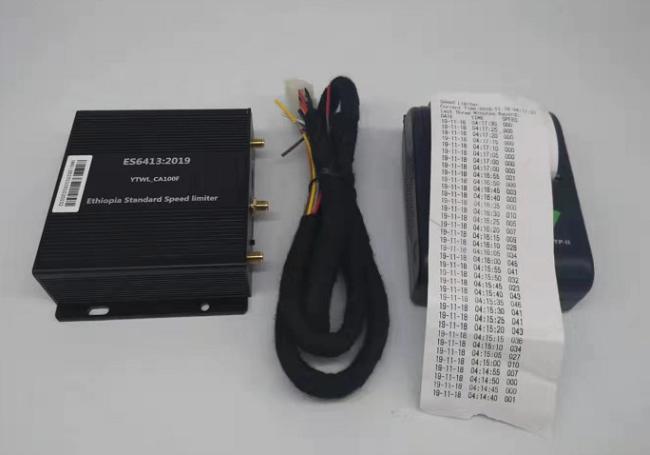

Ethiopia Standard Car Truck Speed Limiter Town Speed Limit 30kM/H Safty Driving with Printer
1 Speed Limiter GPS Product Specifications

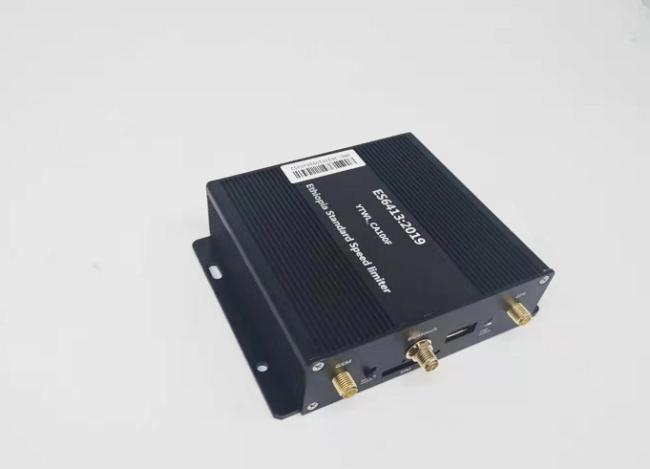

Vehicle speed limiter CA100F is an intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.Speed control precision is very high and the performance is reliable. It will not affect the big throttle start nor the power torque, stable and reliable. It only limits the maximum speed and the vehicle will not stall during speed limiting, and ensure the throttle pedal free movement in the right speed range.
| Dim. | 117*92*31 (mm) |
| Band | 850/900/1800/1900MHz |
| GPS chip | U-blox |
| Bluetooth Module | BT360I |
| Work Voltage | DC 9V－36V |
| Battery | Rechargeable 3.7V |
| Standby work current | < 40mA |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
| CPU | STM32F105RBT6 |
2. Speed Limiter GPS Attention
Ethiopia Standard Car Truck Speed Limiter Town Speed Limit 30kM/H Safty Driving with Printer
- Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself;
- Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and the installed device will send out alarm to the authorized numbers.
- Remote controlling oil and circuit: you can control the oil and circuit via the device by SMS in anywhere and anytime;
- Remote Monitoring: In anywhere and anytime, call the phone number in the device, when it connects, you can monitor the sound around 5 meter.
- Movement Alert: Send SMS to the device to start the movement alert function. When the vehicle is moving, the device will send the movement alert to all authorized numbers.
- Overspeed Alert: Send SMS to the device to start the movement alert function. When the vehicle is overspeed, the device will send the overspeed alert to all authorized numbers.
3.Speed Limiter Analysis of the content of tcp reply:
Ethiopia Standard Car Truck Speed Limiter Town Speed Limit 30kM/H Safty Driving with Printer
| 1 | FACTORY*123456 | Setting back to factory default |
| 2 | CHANGEPW*123456*138138 | New Password:138138 |
| 3 | SPEED*123456*080 | Set Speed OK: 80 |
| 4 | RESET*123456 | Cancel all alarm setting and re-power on |
| 5 | INTERVAL*123456*030 | Set Interval 30 s OK |
| 6 | IP*123456*S121.201.110.106,5300 | IP SET OK |
| 7 | NUMBER*123456*13612345678 | NEW ID: 13612345678 |
| 8 | TIMEZONE*123456*+08 | TIMEZONE: +08 |
| 9 | UPGRADE *123456*39.108.130.237,2332 | Upgrade Main Starting!!! |
| 10 | ACCON*123456*30 | Set Acc On Interval 30s OK |
| 11 | ACCOFF*123456*60 | Set Acc Off Interval 60s OK |
| 12 | TCP | Device Info |
| 13 | PULSE*123456*450 | Set PULSE parameter 450 OK |
| 14 | BTprint*123456 | Bluetooth printer start to print |
| 15 | print*123456*010 | change the Bluetooth print time is 10 minutes |
| 16 | Supplyoil*123456 | Supply fuel remotely |
| 17 | Cutoil*123456 | Cut off the fuel remotely |
| 18 | ALARMPHONE*123456 | Send alarm to admin phone number |
| 19 | openpulse*123456 | Open limp mode |
| 20 | Tcp | TP121.201.110.106 P7000DD000019171223244F0000S0014R0000O N30OFF60VJun 12 2020A:CMNET,p450,s80,c15, 0.360V, 0.720V,12.43V,a0,G00,-59 dbm |
(TP121.201.110.106P7000DD000019171223244F0000S0014R0000ON30OFF60VJ
un 12 2020A:CMNET,p450,s80,c15, 0.360V, 0.720V,12.43V,a0,G00,-59 dbm)
TP121.201.110.106 P7000: IP and port
DD000019171223244: device ID number
F0000S0014: upload data fail 0 times, successful 14 times
R0000: memory data is 0
ON30OFF60: interval of acc on is 30 seconds, and acc off is 60 seconds
VJun 12 2020: firmware of the devices is JUN 12 2020
A:CMNET: the APN is CMNET
p450: Pulse coefficient is 450 (If the pulse coefficient is larger, the speed will be
smaller)
s80: speed limiter max =80km/h
c15: For mechanical throttle, the time to disconnect the fuel line is 15 seconds
0.360V, 0.720V: Two throttle voltage values for electronic throttle vehicles
12.43V: vehicle voltage values
a0: a0 is acc off, a1 is acc on
G00: G00 means GPS not fixed, G10 means 10 satellites found
-59 dbm: GSM signal
- How to connect the relay?
Answer:Relay have 4 lines:87A and 30PIN are respectively connected to the two ends of the cut oil pump line;86 connects 12V or 24V power line in series;85PIN connects to the white line of the GPS speed limiter.Note: Control the speed of the speed limiter with above way, the delay of the speed limit will be relatively large. For example, if the speed limit is set to 40km/h, the car can also run up to 50km/h during acceleration. So, find the car pulse speed line and calibrate the pulse speed, the delay will be much smaller.For vehicles with mechanical throttle, if want to limit the speed without delay, need connect a solenoid valve and use a relay to control the solenoid valve to achieve the purpose of real-time speed limit.
- Does the speed limiter have the managment fleet platform?
Answer: Yes.the paltform is www.gps-go.com
- Does the speed limiter send the data when the power is cutting down?
Answer:The speed limiter will alarm when the power is cutting down and upload the data to the paltform.
5. Speed Limiter maintenance and troubleshooting instructions:
- The red light is the power indicator. If it is steady, it indicates that the main power is on, and the off indicates that the main power is off, if the red light is not on, please check the power connection is normal or not
- Blue is the GPS indicator, always on indicates GPS positioning, and off means that GPS is not positioned, if GPS can't fix the position, please check the GPS antenna is connected normal or not.
- Green is the system indicator. If it is steady, it indicates that the GSM network is not registered. please check the SIM card is normal or not, and GSM antenna is normal or not?
