Road Speed Limiter Ethiopian Vehicle Speed Control YTWL_CA100F

Price Negotiable
Price: 75-90
MOQ: 10
Delivery Time: 2-10days
Brand: YITUOWULIAN
Product Description

YTWL_CA100F Road Speed Limiter Ethiopian Standard Vehicle Speed Control 2021



Supply and Installation of Speed Limiter with the integrated GPS system on 200 units of vehicles
Reference: ITB/2020/13893
Beneficiary Country: Ethiopia
Registration level: Basic

Ethiopia has provisionally agreed on new rules that state speed limiters will become mandatory for all vehicles sold throughout the country.

Road Speed Limiters were developed to improve safety and the environment by controlling the speed of vehicles, thus reducing serious accidents and pollution. The basic function of the system is to limit the maximum speed of a vehicle to a pre-set level without affecting any of the performance of the vehicle.



Technical Parameter:



Content Specs.
Dim. 117*92*31 (mm)
Weight 280g
Network GSM/GPRS/GPS
Band 850/900/1800/1900MHz
GPS chip U-blox
GSM/GPRS Module SIM800C
Bluetooth Module BT360I
CPU STM32F105RBT6
Power IC TD1509-ADJ
Anti-jamming Strengthened Anti-jamming
GPS sensitivity -159dBm
GPS accuracy 5 m
Time To First Fix

Reacquisition 0.1s

Cold status 45s

Warm status 35s

Hot status 1s

Work Voltage DC 9V-36V
Battery Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable)
Standby work current < 40mA
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +70°C
Humidity 5%--95% non-condensing





YTWL_CA100F Road Speed Limiter Ethiopian Standard Vehicle Speed Control 2021



2. Application Field:


Fixed Speed Control
The customized fixed maximum top speed limit increases the safety and fuel economy of your fleet.

Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed increases safety during a statistically high-risk category of operation.

Acceleration Control
Controls the rate at which the vehicle is able to accelerate. Inhibiting aggressive driving behaviors, increasing safety, and greatly improving fuel economy.

Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top speed limiting at any time with our optional SpeedIQ kit. The upgrade offers even override Mode
Configurable overrides by a variety of input methods. This capability is especially useful for Emergency Services and others who require access to full speed and acceleration at times.



Designed for the Ethiopia market, the YTWL-100F Vehicle speed limiter is intelligent terminal equipment that can realize precise speed limits for vehicles. It is not only a speed limiter but also a Professional Multifunctional Vehicle GPS Tracker.





YTWL_CA100F Road Speed Limiter Ethiopian Standard Vehicle Speed Control 2021

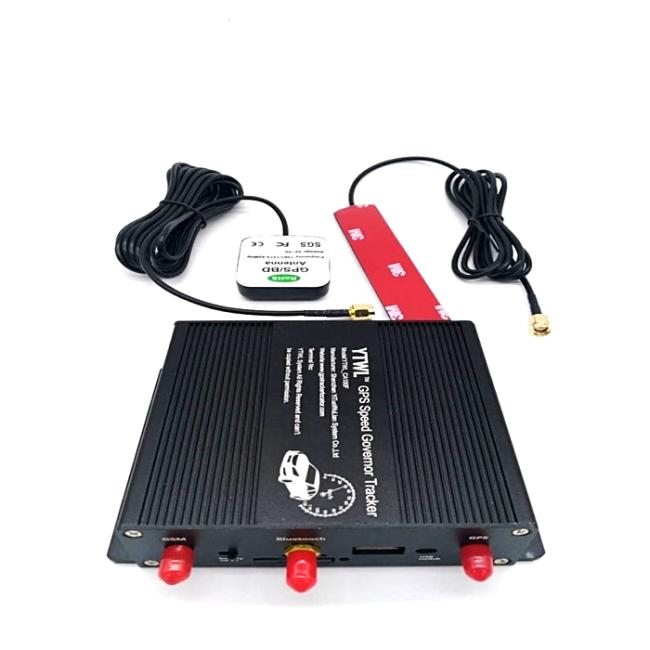

Product Accessories:

① Power wire

② Executor wire

③ Buzzer

④ GPS Antenna

⑤ GSM Antenna

⑥ SIM Card Slot

⑦ Bluetooth printer ( Optional )

⑧ Bluetooth antenna

Realtime Speed Limit Test in Vehicle

To simulate the test of the speed limit, we connect the device with a bulb and set the speed limit, when the speed reaches 95%, there is an alarm; when the speed reaches 100%, the GPS speed limiter starts to cut off the power supply. When speed comes down, the GPS speed limiter does not control.

Q&A about GPS Speed Limiter for Ethiopia:



0. Is your GPS Speed Limiter well approved, testified, and recognized by the Ethiopian market?



Yes, as one of the very first several companies who invented GPS Speed Limiters for the Ethiopia market according to the standard of the Ethiopian government our GPS Speed Limiters have been well approved, testified, and recognized by the Ethiopia market. And we have been exporting quite a number of GPS Speed Limiters to Ethiopia every month.



2. What mechanism will the device use to limit the speed of electronic throttle vehicles and the additional device it uses?

Our speed limiter is an electronic type that works with electronic throttle vehicles without requiring additional accessories.



How can I buy it?



We accept T/T, Western Union, and Paypal after payment cleared. then we will send goods to you.



What is your WhatsApp?



My WhatsApp is +86 18673367060
