YTWL_CA100F Ethiopia Vehicle GPS Speed Limiter Ethiopia Speed Governor

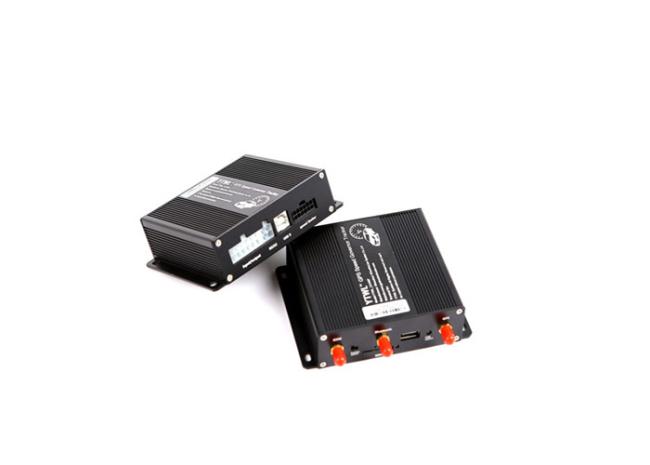

YTWL_CA100F intelligent Ethiopia Vehicle GPS Speed Limiter/Ethiopia speed governor
Product Description
Ethiopia has provisionally agreed on new rules that state speed limiters will become mandatory for all vehicles sold throughout the country. Road Speed Limiters were developed to improve safety and the environment by controlling the speed of vehicles, thus reducing serious accidents and pollution.
2. Technical Parameter:
| Content | Specs. |
| Dim. | 117*92*31 (mm) |
| Weight | 280g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900MHz |
| GPS chip | U-Blox |
| GSM/GPRS Module | SIM800C |
| Bluetooth Module | BT360I |
| CPU | STM32F105RBT6 |
| Power IC | TD1509-ADJ |
| Anti-jamming | Strengthened Anti-jamming |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5 m |
| Time To First Fix |
Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
| Work Voltage | DC 9V-36V |
| Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
| Standby work current | < 40mA |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |

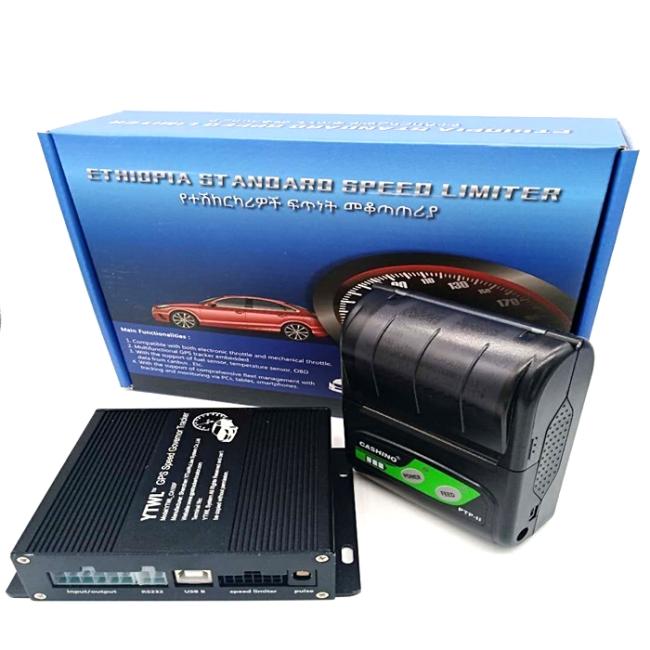

YTWL_CA100F intelligent Ethiopia Vehicle GPS Speed Limiter/Ethiopia speed governor
3. Installation:

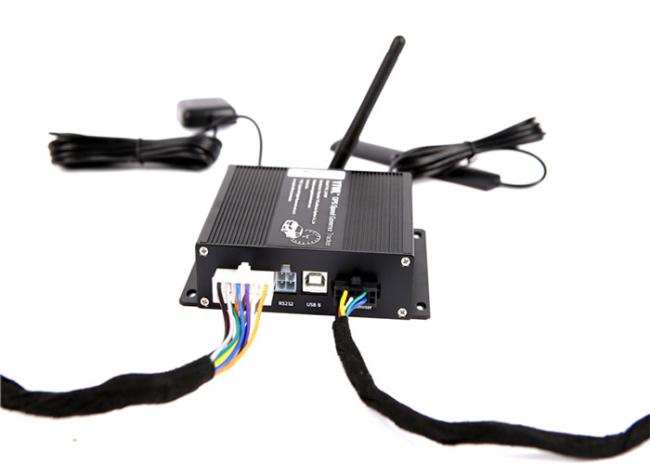

1) Product Accessory:
① Power wire
② Executor wire
③ Extension wire
④ Speaker
⑤ GPS Antenna
⑥ GSM Antenna
⑦ SIM Card Slot
⑧ User Manual
YTWL_CA100F intelligent Ethiopia Vehicle GPS Speed Limiter/Ethiopia speed governor
Speed governor or speed limiter is a device designed to limit the speed of vehicles like trucks, school buses, car forklifts,s and so on. Most of the speed governors are fitted because of government regulations.
Nowadays, we are researching and developing the devices as a fleet management tool. With the function of real-time tracking, Geo-fence, and data recorded, the speed limiters are widely adapted by some governments like Kenya, Nigeria, and also some fleet teams. For safety, the school buses and buses team should be installed the devices properly.
Also about the forklift speed limiter, it's a great tool to reduce accidents and discipline the forklift team. With the lower prices but good quality control, the devices will save you a lot of costs in a very short time. For OEM/ODM to customize the functions you like, you can also contact us.
Main Features
Vehicle Speed limiter with GPS Car Tracking System is designed to reduce accidents. They limit the maximum speed of a vehicle by restricting the fuel supply to the engine; Hence Speed Limiter improves road safety with increased fuel efficiency and reduced repair cost.
Main Features
- USB flash download speed data, date, time, etc.
- Speed Limit Range from: 10km/h-120km/h.
- Can force to limit the speed intelligently, the safe speed limit.
- Maximum pre-set speed can be set by the administrator.
- Can record and retrieve speed data between 72 to 360 working hours.
- Support Mechanical Electronic accelerator pedal speed limit.
- Can be applicable for trucks, cars, school buses.
Bluetooth Printing
GPS speed limiter supports work with wireless Bluetooth printer. Click the SOS button on the speed limiter, GPS speed limiter shall automatically connect with the speed limiter and start print the last 1 hr data with over speed data included.
USB Disk Downloading
Users can connect to the device USB port with a FAT32 format USB disk and download the last 72 hr driving data stored in GPS speed limiter memory. Beep sound when USB is inserted, Long beep sound when data is all downloaded.
Q&A about GPS Speed Limiter for Ethiopia:
0. Is your GPS Speed Limiter well approved, testified, and recognized by the Ethiopian market?
Yes, as one of the very first several companies who invented GPS Speed Limiters for the Ethiopia market according to the standard of the Ethiopian government our GPS Speed Limiters have been well approved, testified, and recognized by the Ethiopia market. And we have been exporting quite a number of GPS Speed Limiters to Ethiopia every month.
1. What mechanism will the device use to limit the speed of mechanical vehicles and the additional device it uses?
Our speed limiter is an electronic type. For the vehicles which are mechanical type, an extra relay can be used as an adapter at its cost. Together with the relay, the speed limiting can be carried out while a Solenoid valve shall be needed for accurate speed limiting.
