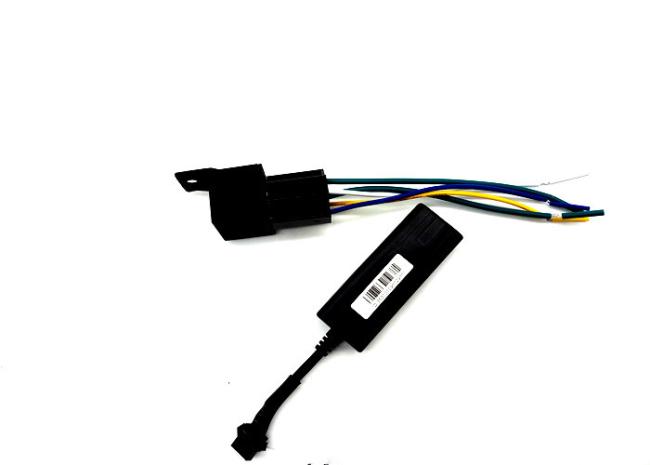

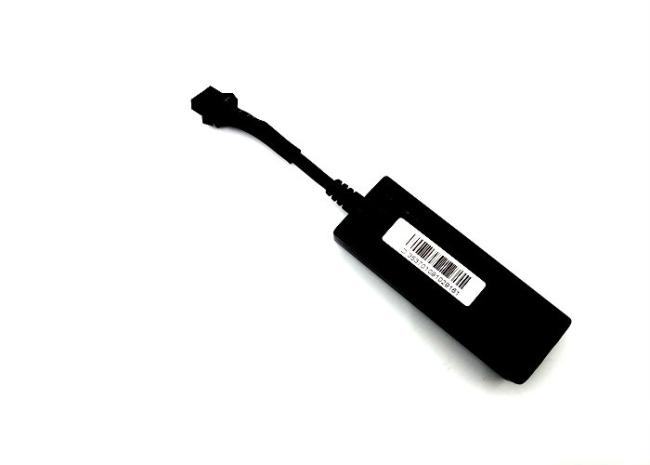

Mini 3G 4G GPS GSM Tracker Anti-lost GPS Tracking Device For Car Motorcycle
Mini 3G 4G GPS GSM Tracker Anti-lost GPS Tracking Device For Car Motorcycle

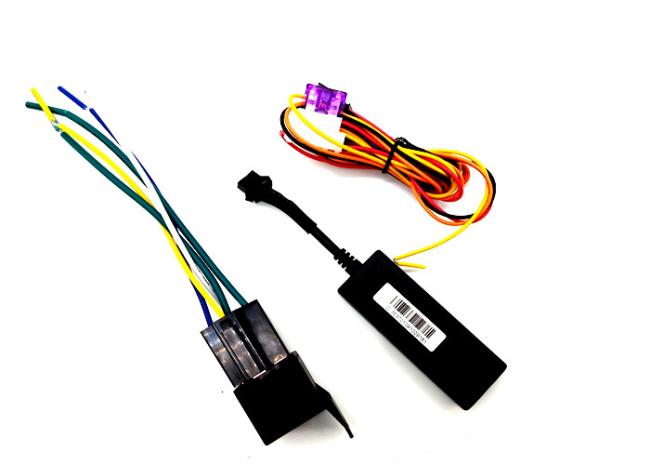

Accessories
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
Mini 3G 4G GPS GSM Tracker Anti-lost GPS Tracking Device For Car Motorcycle
Description
| GSM two-way | 850/900/1800/1900 MHz |
| GPS positioning | GPS sensitivity: -162dBm |
| GPS positioning accuracy: 2 meters (under open conditions) | |
| Speed accuracy: 0.1 m/s | |
| Cold start time: <38 seconds | |
| Warm start time: <32 seconds | |
| Hot start time: <2 seconds | |
| Base station positioning | Support base station positioning, positioning accuracy: 10~200 meters |
| Vandalism | Support anti-counterfeiting base station, anti-detection function |
| Working current | Average current <30mA (12VDC), maximum current <100mA (12VDC) |
| Operating temperature | -20~+70℃ |
| Material | Engineering plastics |
| Weight | 50G |
| Network | 4G LTE/3G/2G |
| Dim. | 90*40*15mm |
| Storage Temp. | -40°C to +85°C |
| Accuracy | 5-20m |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
| Working Voltage | 9-80V |
| CPU | MTK6261 |
| RAM | 32MB |
| ROM | 32MB |
Functions:
| GSM850/900/1800/1900mhz |
| WCDMA850/900/1900/2100 Mhz |
| Voltage range: 9-100VDC; |
| GPS / LBS real-time positioning |
| Support the computer to track the car, |
| Mobile search |
| Vehicles and wechat search vehicles |
| SMS text query location information |
| ACC ignition signal detected |
| Built-in vibration sensor |
| Able to set a specific number for SOS alarm and burglar alarm |
Mini 3G 4G GPS GSM Tracker Anti-lost GPS Tracking Device For Car Motorcycle
| LIGHT | Functions |
| Red LED | Connect DC 9-100V power supply and will light continuously. |
| The red LED is the power signal, | |
| It is always on when the external DC is connected. | |
| blue LED | It is he GSM signal indicator. |
| It is always on when there is no GSM; | |
| It flashes when GSM is normal; | |
| It flashes quickly when transmitting data. | |
| yellow LED | It is the GPS signal indicator: |
| It is always on when there is no positioning; | |
| It flashes after positioning. |
Device wiring requirements
1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.
2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
3 When finishing the power supply wire connection, please make the plug of power supply to the device
Mini 3G 4G GPS GSM Tracker Anti-lost GPS Tracking Device For Car Motorcycle
Proper Use of The Product
Install→Power on→Settings→Register
Installation: GPS antenna should be facing toward the sky, above the mounting location
must be no material (such as metal, window film) absorption of electromagnetic waves
sheltered place.
Boot: Insert the SIM card correctly, connect the wire according to diagram, then turn on
the power.
Setting: Must be done, or can not do other operations, mobile phone owners send text
messages to set the owner number and a specific number to the terminal SIM card.
Registration: Registration method is different subject to dealer platforms, please consult
your dealer.
In particular that:
1. Any technical changes to the product in the future without prior notice.
2. Any changes of appearance, color of products, to prevail in kind.
3. The warranty card is only available in the following listed IMEI / ID Number warranty
Services.
4. Please keep this service card, please show this card and the original purchase receipt
for warranty.
5. See the table below illustrate specific warranty.
This card is a basic warranty certificate, user please fill out the card and keep it.
