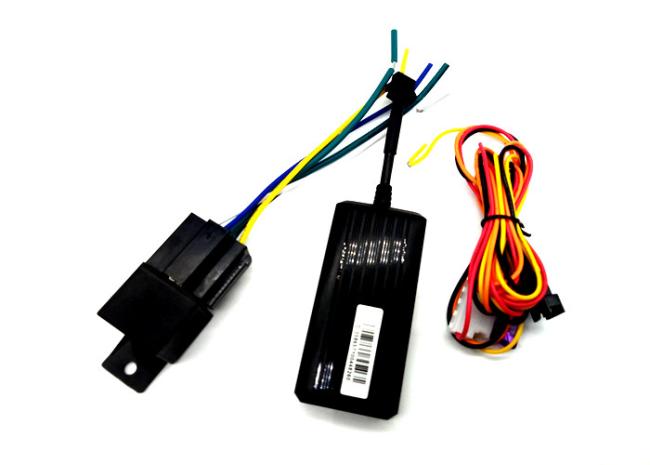

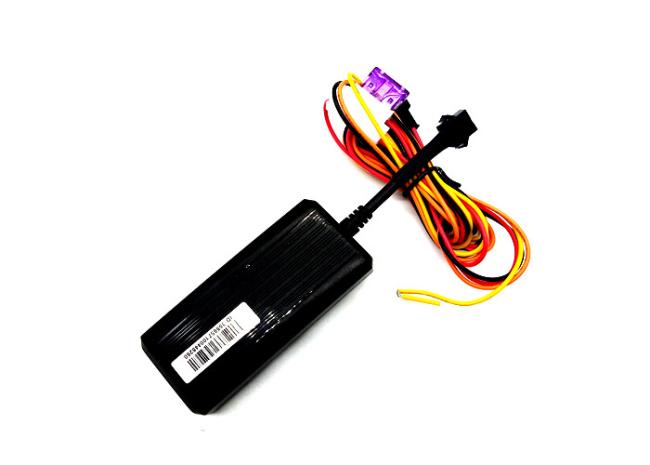

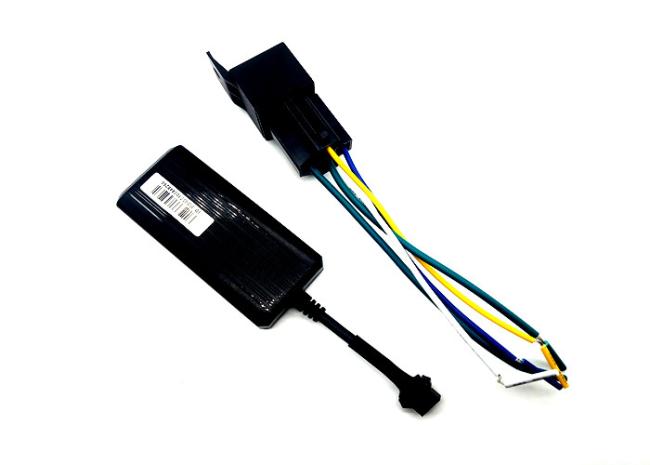

Wideband 4G GPS tracker C003-01-4G Model with GT06 protocl Mini motorcycles GPS tracker
Wideband 4G GPS tracker C003-01-4G Model with GT06 protocl Mini motorcycles GPS tracker
4G Bands in different countries:
Europe / Middle East / Africa / South Korea / Thailand
EC25-E:
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
North America
EC25-A:
LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
EC25-V:
LTE FDD: B4/B13
Australia/New Zealand/Taiwan/Brazil:
EC25-AU:
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
EC25-AUT:
LTE FDD: B1/B3/B5/B7/B28
WCDMA: B1/B5
EC25-AUTL:
LTE FDD: B3/87/828
Japan EC25-J
LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19
Wideband 4G GPS tracker C003-01-4G Model with GT06 protocl Mini motorcycles GPS tracker
Main Feature:
* 4G 3G 2G bands
* Built-in acceleration sensor for vibration alarm and power saving
* Built-in battery, power disconnection alarm function
* Super wide working voltage input range: 9-100V
* The ACC ignition signal detection, vehicle status indicators
* SMS Arm / Disarm
* Watchdog function, reboot automatically after breakdown
* Suitable for Vehicles/Cars/Motorcycles/E-bike etc
* SOS ,microphone ,Relay is optional
Dvice parameter
| Electronic Character: | |
| Power Supply | built-in battery |
| Work Voltage | DC9-100V |
| Work Current | ≈22mA (12vDC) |
| Work Current | ≈12mA (24vDC) |
| Battery Capacity | 200mah |
| Environment Character: | |
| Work Temp: | -20℃～+70℃ |
| Storage Temp: | -30℃～+80℃ |
| Work Humidity: | 20%～80%RH |
| Communication Character | |
| Module Brand/Chip Module | MT6261 |
| Band: | B1/B3/B8B34/B38/B390/B40/B41/BC0 |
| SIM Card: | Standard SIM card |
| Aerial: | Internal |
| GPS/BD Positioning Character: | |
| Cold start | 38s(Open sky) |
| Warm start | 32s(Open sky) |
| Hot start | 2s(Open sky) |
| Shape | |
| Dimension | 90mm*40mm*15mm |
| Weight | 50g |
Wideband 4G GPS tracker C003-01-4G Model with GT06 protocl Mini motorcycles GPS tracker
Move Alarm Setting
Move alarm setting instructions: move123456 300
Re: move ok
Unit: meter
Under alarm situation GPS reply: move alarm! GPS security off
Move alarm cancel (default): move123456 000
Re: move ok
SMS armed and disarm setting
SMS armed: SF
Re: SF OK
SMS disarm: CF
Re: CF OK
SMS Off Fuel(Optional)
When the vehicle thefts, by monitoring background to send off fuel directive, to ensure the vehicle is in safe driving premise, cutting stolen vehicle fuel, unable to start the vehicle to achieve the purpose.
NOTE: To ensure the safety of vehicles, the terminal is active only in the GPS targeting state, and the vehicle speed is less than 20KM / H or stop to cut off fuel.
When theft alarm is over, you can restore fuel manually through background, terminal performs recovery operation, the vehicle will continue to travel.
SMS fuel off: DY
SMS fuel on: KY
Wideband 4G GPS tracker C003-01-4G Model with GT06 protocl Mini motorcycles GPS tracker
Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
Note:The metal cover will lessen the receiving of GPS signals.
