Anti-Theft Real Time GPS LBS Positioning TK003 GPS Tracker With Vibration Alarm

Price Negotiable
Price: negotiation
MOQ: 10pcs
Delivery Time: 1-10 working days after received your payment
Brand: Cartracker
Product Description

Anti-Theft Real Time GPS LBS Positioning TK003 GPS Tracker With Vibration Alarm

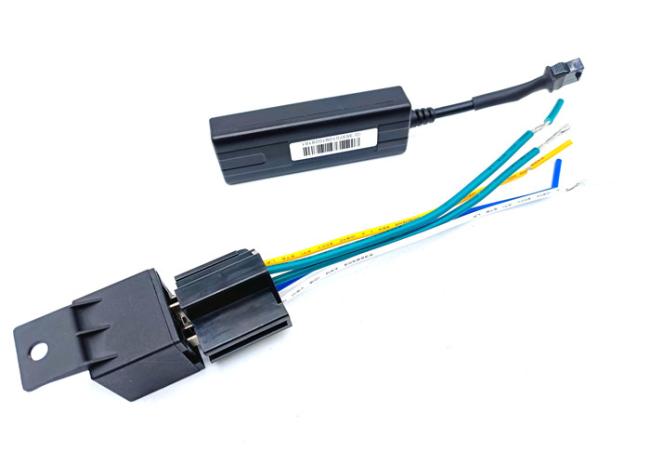

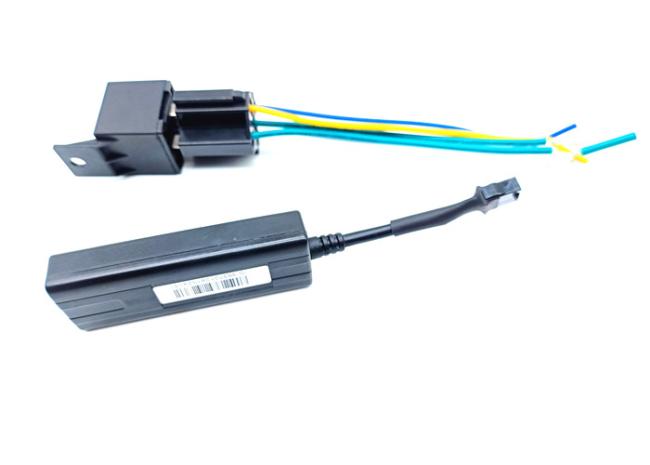

TK003 is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. Mini size, built-in antenna and waterproof designed, easy to be installed and concealed, with power voltage range from 9V~100V,therefore can satisfy tracking and security demands for all kinds of vehicles.



Specification

Items Parameters
2G Module 2G MTK6261
4G Antenna 100-500m
GPS Sensitivity -159 dBm
GPS Chipset U-blox7
GPS Positioning Accuracy 5-10m, 2D RMS
Working Voltage 9VDC~100VDC
Working Current <30mA
Operating Temperature -20℃—70℃
Humidity 20%—80%
Size 76mm × 26mm × 15mm
Simcard Normal simcard
Battery Rechargeable battery 180mAh
Internal battery Standby <1h



Features:

1. Quad-band, GSM frequencies 850/900/1800/1900MHz

2. MTK6261 GPRS model , Ublox-7 GPS model

3. Sleep model

4. Compact size, easy for hiding

5. Low energy consumption

6. Cut oil or circuit (relay is optional )

7. Power cut off alarm

8. Acc ignition detection

9. Built-in battery is 180Mah



Interval tracking
The terminal can upload location information automatically according to the set interval time



Virtual fence
Any area can be set as virtual fence, and time period can be added to the fence. Once the terminal gets in and out of the fence in this period, the system will alarm immediately



Blind area tracking
When the terminal can track but is in the network blind area, it can automatically store the tracking data and automatically transmit it when the network signal is normal



Historical track
You can query the historical track of the terminal at any time

Anti-Theft Real Time GPS LBS Positioning TK003 GPS Tracker With Vibration Alarm

FAQ
Q: Are you a manufacturer?
A: Yes, we have been focusing on the development and production of high-precision tracking for more than 10 years.

Q: Do you need SIM card from cellular service provider?
A: Yes, the bracelet needs to be inserted into the SIM card.

Q: How do I track the location of the car?
A: You can use our free PC and app software to track the location of the car.

Q: Can you provide SDK or API for us to make our own applications?
A: Yes.

Q: What is your minimum order quantity?
A: We accept a formal order of at least 1 sample and at least 100 units.

Q: Do you accept OEM / ODM?
A: We can use your logo and package for you, and free of charge, you can also modify the hardware and software according to your requirements.

Q: Can you send samples free of charge?
A: You are required to pay for the sample and transportation.

Q: What is the final price?
A: The final price depends on the quantity of your order.

Q: What are your payment terms?
A: 30% deposit TT and 70% balance TT before shipment. You can also pay through Alibaba.

Q: When do you deliver the goods?
A: The sample takes 1-3 days; the bulk order is about 15-45 days according to the quantity.

Q: What mode of transportation can you offer?
A: According to the customer's request, shipping / air transportation is OK.

Q: How long is your guarantee?
A: We offer 12 month guarantee.
