Products Technical Specification

Product Name

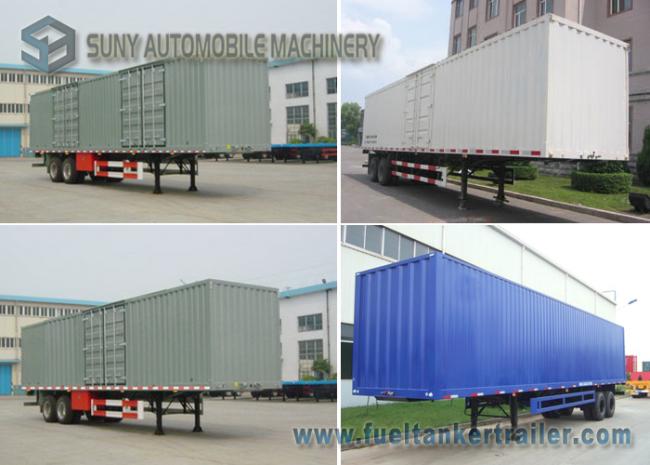

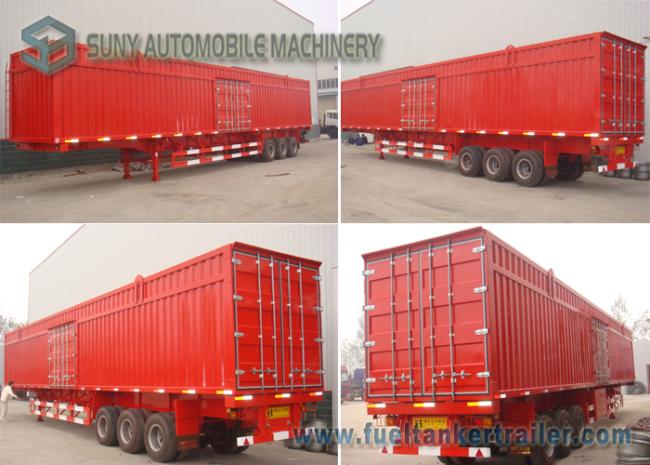

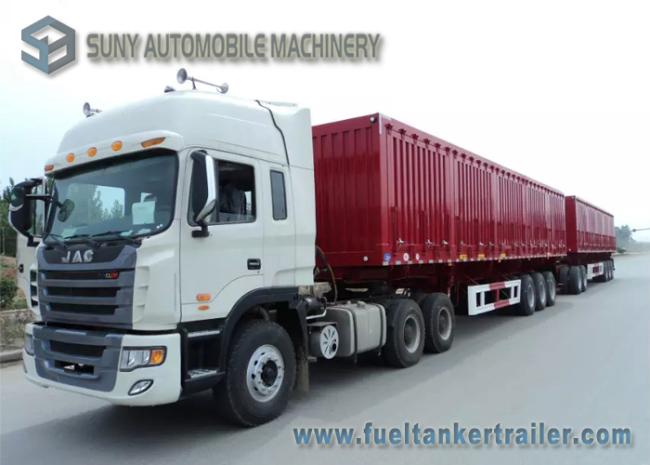

3 axles Van Semi Trailer

Vehicle Model

SY9400XXY

Overall dimensions

13000 * 2550 * 3990 mm

GVW (kg)

40000

Mass in working order (kg)

8500

Fact loading capacity (kg)

standard type 40000 - 55000

extra-heavy type 50000 - 80000

Van dimensions

12750 * 2400 * 2470 mm

Wheel base(mm)

6830+1310+1310

F/R track base(mm)

1830/1830/1830

F/R axle-load

-/23900 (3 axle)

Approach/Departure angle(°)

-/14

Axle

13 T and 16 T FUWA

Outrigger

28 T Single-action

Pin traction

90 #

Braking system

Brake made in China

Standard Equipment

(standard type)

13 T FUWA axle, 11.00R 20 tire 14/14+6 square beam ,14#channel steel side

Frame ,4S/2M chamber , ABS made in China ,3 mm flat ,13*90-10pcs springs ,

double spare tire carrier , and other equipment . 7 doors , Open top.

Standard Equipment

(extra-heavy type)

16 T FUWA axle, 12.00R 20 tire 16/18+10 welded beam ,

channel beam , 4S/2M

Chamber , ABS made in China ,4 mm flat,16*90-10pcs springs ,

and other Equipment..7 doors , Open top.

Optional Configuration  (√ : Standard Equipment  ○: Optional  ×: Not )

Others

Painting , Marking , Side Guard ,Tool box .

According to the requirement of the buyer

2 axles , BPW Brand, Tire , van thickness ,etc
