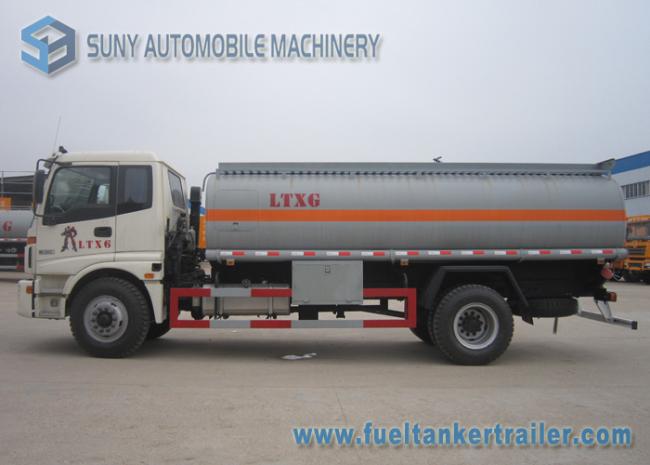

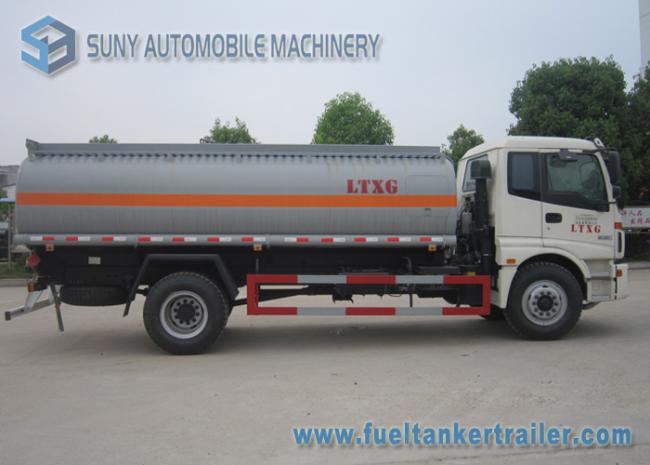

Foton Auman 14m3 210HP Oil Tank Truck 4x2 Trucks BJ5163GYY-AB Chassis
Foton Auman 4x2 Tanker Truck 14 m3 Oil Tank Truck 210 HP Fuel Tank Truck
Description & Applications:
1. The tank can be designed as a single compartment or several compartments.
2. Tank material: carbon steel, stainless steel, aluminum alloy material tank for choose.
3. You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm
Thickness, insulation can be used rock wool, glass wool, polyurethane foam, aluminum silicate. The cladding
4. At the end or side of tank, it can be installed 1-3 self-flow valve.
5. According to users’ needs, the tank can be designed as a single compartment or several compartments to contain different oils.
Foton Auman 4x2 Tanker Truck 14 m3 Oil Tank Truck 210 HP Fuel Tank Truck
|
Vehicle Description |
Vehicle model |
SLA5163GYYBJ8 |
|
Vehicle type |
Oil tank truck |
|
|
Drive form |
4*2 |
|
|
Overall dimension (mm) |
8450*2460*3100 |
|
|
G.V.W (kg) |
16000 |
|
|
Load capacity (kg) |
9065 |
|
|
Curb weight (kg) |
6805 |
|
|
Chassis Description |
Chassis model |
BJ5163GYY-AB |
|
Axle load (kg) |
6000/10000 |
|
|
F/R overhang (mm) |
1365/2385 |
|
|
Approach/Departure angle ( ° ) |
16/10 |
|
|
Tread (mm) |
1960/1847 |
|
|
Wheelbase (mm) |
5000 |
|
|
Spring plate |
10/10+9,10/10+8 |
|
|
Tyre size & quantity |
10.00-20 18PR,10.00R20 18PR,9.00R20 16PR,10R22.5 16PR & 6+1 |
|
|
Cab |
One and half row |
|
|
Engine Description |
Engine model |
ISDe210 40 |
|
Displacement (ml) |
6700 |
|
|
Max power (kw) |
155 |
|
|
Horsepower (hp) |
210 |
|
|
Max speed (km/h) |
79 |
|
|
Emission standard |
Euro 4 |
|
|
Type of fuel |
Diesel |
|
|
Tank Description |
Tank volume (m³) |
13.49 |
|
Transport medium |
Gasoline |
|
|
Density (kg/m³) |
700 |
|
|
Tank size (mm) |
5800*2200*1500 |
