Dongfeng 10 Ton 4X2 Cargo Middle Duty Wrecker With Cummins Engine
Dongfeng 10 Ton 4X2 Middle Duty Wrecker Tow Truck With Cummins Engine
Description:
1) Flat bed tow truck can tow 2 units truck at one time. It ’ s mainly for towing light cargo truck, mini bus and car;
2) Wrecker truck is mainly for towing medium duty and heavy duty cargo truck and bus;
3) Rotator tow truck, its boom can rotate 360 degree and suitable for all the direction towing work. It ’ s mainly for towing heavy duty cargo truck and super heavy duty trailer.
Applications:
Our high quality and competitive price 10 ton SYTW10IDF wrecker is mainly for towing middle duty cargo truck and super middle duty trailer.
Competitive Advantage:
1) Wireless remote control boom, winch and under - lift is optional;
2) 16 ton towing rating;
3) Mainly made by alloy steel, high quality and competitive price.
Specifications:
Dongfeng 10 Ton 4X2 Middle Duty Wrecker Tow Truck With Cummins Engine
|
Model |
10 ton Wrecker |
||
|
Kerb weight |
10805 |
||
|
GVW ( 3 persons ) |
16000 |
||
|
Dimension ( mm ) |
Length |
8700 |
|
|
Width |
2500 |
||
|
Height |
3250 |
||
|
Wheelbase ( mm ) |
5600 |
||
|
Front wheel span / Rear wheel span ( mm ) |
1880 / 1800 |
||
|
Angle of approach / Angle of mosey ( ° ) |
20 / 18 |
||
|
drive type |
4x2 |
||
|
Tyre size |
10 . 00 - 20 |
||
|
Max HR ( km / h ) |
90 |
||
|
Engine |
type |
ISB180 40 ( EURO IV ) |
|
|
power ( HP / r / min ) |
180 / 2500 |
||
|
torque ( N · m / r / min ) |
630 / 1500 |
||
|
fuel exhaustion of 100km ( L / 100km ) |
Diesel, 15 . 3 |
||
|
Under-lift capacity ( kg ) |
8000 |
||
|
Boom capacity ( kg ) |
10000 |
||
|
Winch quantity ( unit ) |
1, planetary type |
||
|
Single winch capacity ( kg ) |
10000 |
||
|
STANDARD FEATURES |
|||
|
|||
|
Notice: Equipment can be modified according to the customer ’ s requirement. |
|||

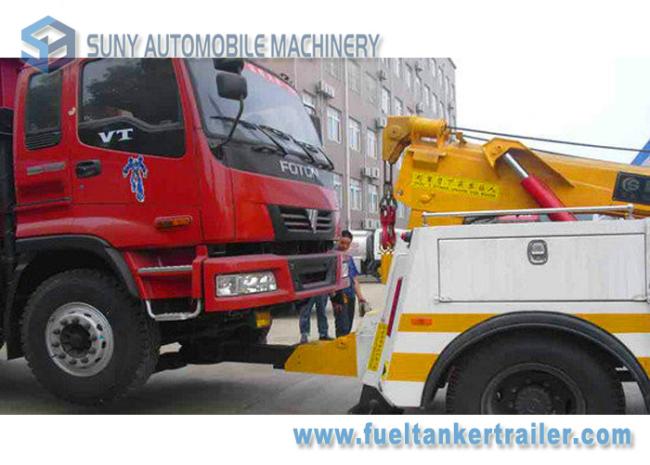

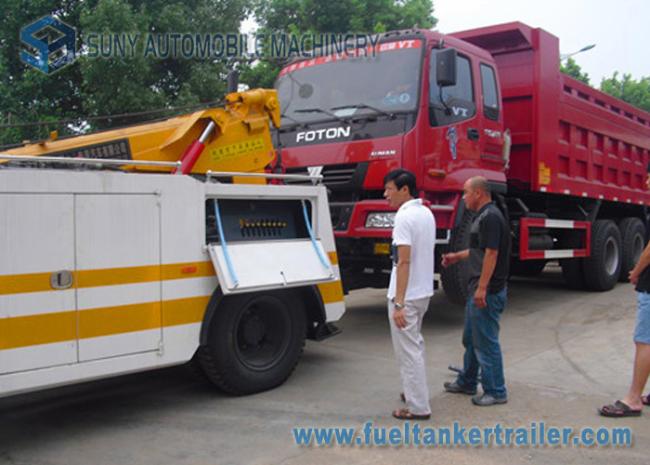

More pictures:
