Custom Q235 / Q345 40 Foot Flatbed Semi Trailer 50 Ton For Transportation
40 FT ISO Container Skeleton Container Semi Trailer 3 Axles Container Transport Frame Trailer Load 50 Tons
Description:
Semi trailer is our company's main product. We configure Grid type semi trailer ,low bed semi trailer, container semi trailer, flat bed semi trailer, LPG tank semi trailer, fuel tank semi trailer, water tanker semi trailer, fecal suction semi trailer, sewage suction semi trailer, compactor garbage semi trailer, van semi trailer, box semi trailer, water tank semi trailer, bitumen semi trailer, bulk cement semi trailer, dump semi trailer, chemical tank semi trailer and etc. We produce tank semi trailer with plastic lining, aluminum tank, aluminum alloy tank, rotational molding, carbon steel, stainless steel, production according to the customer's requirement.
Specification:
ISO 20FT / 40FT Transportation Container Skeleton Container Transport Semi Trailer
( skeleton container trailer material: carbon steel)
( skeleton container trailer opting 20FT, 30FT, 40FT, or with lift cylinder unloading )
( skeleton container trailer axle opting: 1, 2, 3, 4 axle & lift axle semi trailer / full trailer )
|

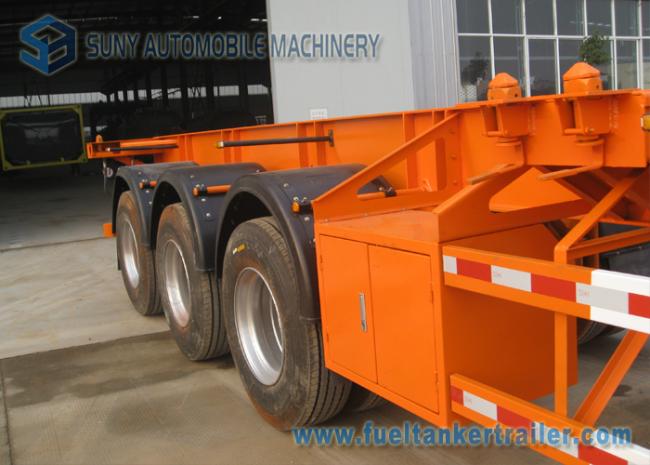

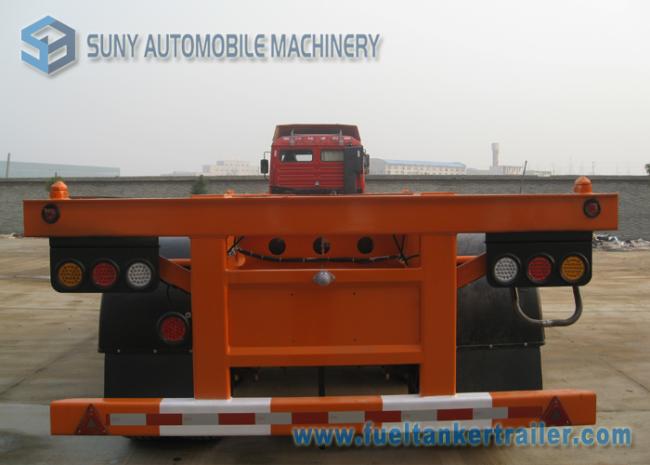

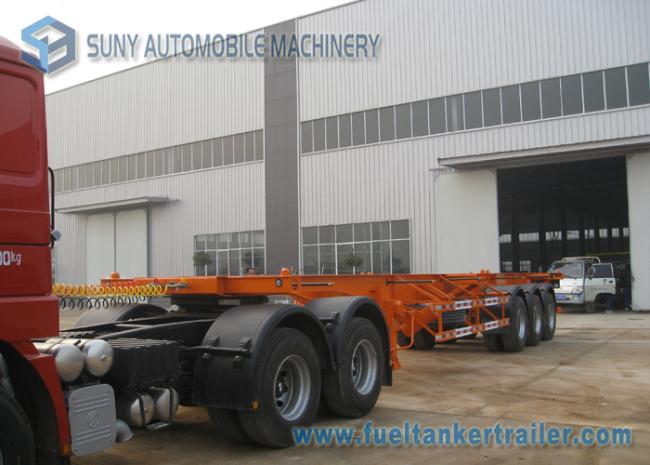

Skeleton Container Semi Trailer Specifications ( SY9305GJ 3 axle skeletal container semi trailer for 2 sets 20ft or 1 set 40ft ISO container ) |
|
|
Overall dimensions (L*W*H) |
12390 * 2480 * 1490 mm (3525 mm height with hydraulic tipping cylinder) |
|
Design Loading |
50000 kg = 50 tons ( for 2 sets 20ft or 1 sets 40ft container ) |
|
GVW |
Approx 56200 kg |
|
Mass in working order |
Approx 6200 kg |
|
Axle specification |
13 T × 3 pcs ( FUWA axle ) optional: FUWA 15 T, BPW 12 T |
|
Axle load |
-/ 24000 kg ( 3 axles) |
|
Wheel base |
7300 + 1310 + 1310 mm |
|
Front / Rear track base |
- / 1840 / 1840 / 1840 mm |
|
Suspension system |
Mechanical suspension, opting air suspension. |
|
Front / Rear suspension |
-/ 1350 mm |
|
Approach / Departure angle |
- / 26 ° |
|
Tire specification |
11.00R22.5 × 12pcs (vacuum tires) opting single tire type |
|
Spring few films |
13 × 90-10 (optional: -/8/8/8, -/10/10/10) |
|
King pin |
50 # China brand kingpin, opting 90# / JOST. |
|
Landing leg |
28T load landing leg, optional JOST. |
|
Braking system |
Optional: China brand 4S/2M ABS / WABCO ABS |
|
Twist Lock |
8 No. Of ISO twist lock for 2 sets 20ft / 1 set 40ft container |
|
Accessories |
|
|
Mudguards |
PVC Mudguards |
|
Side protection |
Nil. |
|
Fire extinguishers carriers |
2 pcs |
|
Spare tire carrier |
1 pc |
|
Container locker |
8 sets |
|
Tool box |
1 tool box with our factory's standard free tools |
