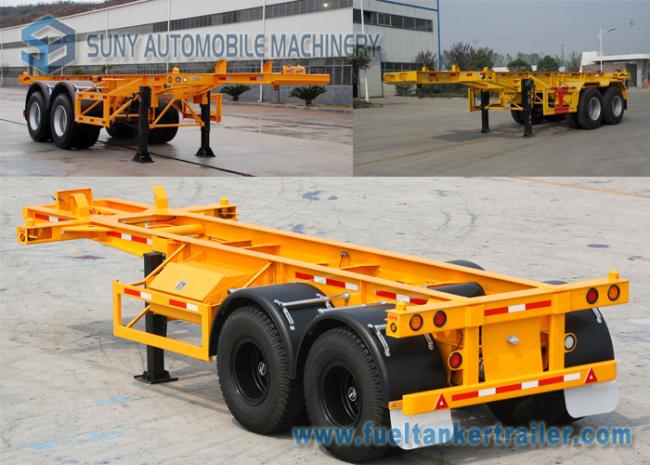

20 ft 2 Axles Flat Bed Skeletal Semi Trailer Steel Q345 12R22.5 Tire
20 ft 2 Axles Flat Bed Skeletal Semi Trailer Steel Q345 12R22.5 Tire
Optional Equipment:
1. 3 Axles Skeletal trailer / 4 Axles Container Trailer
2. BPW Axle , YORK Axle , etc.
3. Container Trailer Size 20 ft , 40 ft , 45 ft , 53 ft ,etc.
4. Load Capacity of Container Skeletal Semi Trailer : 20 T , 25 T , 30 T , 35 T , 40 T ,etc
5. Tire : Vacuum Tire , Radial Tires , Nylon Tire.
Semi trailer is our company's main product . We configure Grid type semi trailer , low bed semi trailer , container semi trailer , flat bed semi trailer , LPG tank semi trailer , fuel tank semi trailer , water tanker semi trailer , fecal suction semi trailer , sewage suction semi trailer , compactor garbage semi trailer , van semi trailer, box semi trailer , water tank semi trailer , bitumen semi trailer , bulk cement semi trailer , dump semi trailer , chemical tank semi trailer and etc . We produce tank semi trailer with plastic lining , aluminum tank , aluminum alloy tank , rotational molding , carbon steel , stainless steel , production according to the customer's requirement .
|
DIMENSIONS & WEIGHT |
|
|
Vehicle Dimensions |
7160 * 2490 * 1560 mm |
|
Tare Weight |
Approx. 3600 kg |
|
Payload |
25000 kg |
|
SPECIFICATION |
|
|
Chassis |
Heavy duty and extra durability designed , Opting for high tensile steel Q345 . Main beam height is 500 mm , Upper plate is 14 mm , lower plate is 16mm , middle is 8 mm. |
|
Axle |
2 axles |
|
FUWA brand 13 T |
|
|
Suspension |
Mechanical with 8 - piece leaf spring |
|
King Pin |
2.0’’ or 3.5’’ traction pin (bolts type) |
|
Landing Gear |
19 T |
|
Wheel Rim |
9.0R22.5 stud steel rim 9 pieces |
|
Tire |
12R22.5 Tubeless Tire , include one spare tire , 9 pieces |
|
Braking System |
One units of WABCO , Four double and two single chamber |
|
Electric |
International standard 24 v circuit 7-pin ISO socket ; Tail lamp with turn signal , brake light & reflector , side lamp etc . One set 6-core standard Cable . |
|
Light |
LED brand , Front marker lamp front corner marker lamp is red , Reflector lamp is white Side marker lamp Orange Rear lamp Red Turn signal lamp Orange |
|
Container Twist Locks |
12 pieces |
|
Tools box |
1 piece |
|
Painting |
Sand blasting processing clean rust 1 coat of anticorrosive primer , 2 coats of finish urethane paint color at customer’s choose. |
|
Packing |
One container carry two units . |
