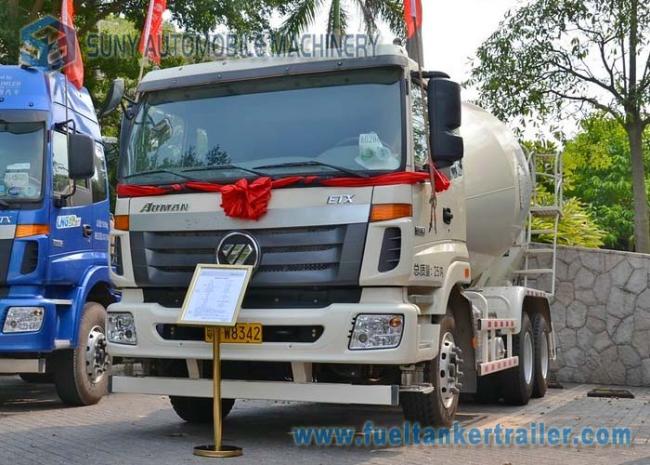

Foton Auman ETX 11 M3 Cement Mixer Truck With Mercedez Benz Technology
Foton Auman ETX 11 M3 Cement Mixer Truck With Mercedez Benz Technology
1. Strong truck chassis for rough road
2. Truck engine for strong power and oil save
Why choose us?
( 1 ) Our products
1. Competitive price with excellent quality
2. World first - class trucks and engines technology
3. A great variety of different models to meet customer requirements
4. Exported to Southeast Asia , Africa , Europe and other regions
( 2 ) Our company
1. A full - service system integrating manufacture , distribution , repair service and domestic & International trade
2. Our service is as close as your phone
3. Customer satisfaction is our highest pursuit
4. Located in China ' s newest economic zone kashgar – the most convenient port city to middle and south Asia and middle east countries
( 3 ) Our team
1. Highly trained team members with overseas working experience
2. Response quickly with effective information in 12 hours
3. Provide timely professional technical support service
4. Not only to sell but to solve customers ’ problems
5. Considerate after-sale service
Specifications
|
Tank Volume |
8 cbm - 12 cbm |
|
|
Tank Material |
High Quality 16Mn Q345 |
|
|
Chassis |
Brand |
FOTON |
|
Chassis model |
BJ5253GMFJB - S |
|
|
Drive type |
6X4 , LHD / RHD |
|
|
Tire |
11 . 00R20 |
|
|
Tire No . |
10 + 1 ( spare ) |
|
|
Braking System |
Air braking |
|
|
Clutch |
Uniwafer , dry clutch , hydraulic remote control |
|
|
Transmission |
9 forward gear , 1 reverse gear , manual mechanical type |
|
|
Engine |
Model |
WP10 . 336 |
|
Horse Power ( hp ) |
336 |
|
|
Displacement ( cc ) / Power ( kw ) |
9726 / 247 |
|
|
Emission |
Euro 3 |
|
|
Main Parameters |
Overall dimension ( L * W * H / mm ) |
9200 * 2500 * 3950 |
|
Wheelbase ( mm ) |
3575 + 1350 |
|
|
Axles No . |
3 |
|
|
GVW ( kg ) |
25000 |
|
|
Curb Weight ( kg ) |
12920 |
|
|
Leaf spring No . |
8 / 12 |
|
|
Approaching / Departure Angle ( ° ) |
25 / 30 |
|
|
Front / Rear trace ( mm ) |
1986 , 1860 / 1860 |
|
|
Front / Rear suspension ( mm ) |
1462 / 2340 |
|
|
Max speed ( km / h ) |
80 |
|
|
Front / Rear Axle Load ( kg ) |
7000 / 13000 * 2 |
|
More photo :
