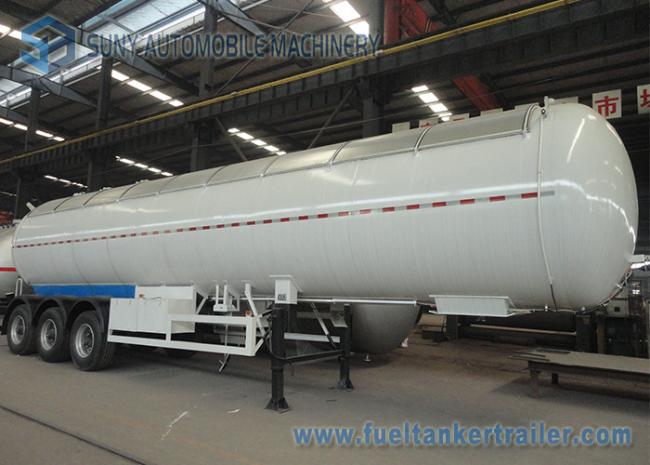

56000 L 12 Wheel LPG Tank Trailer Three Axle Trailer With Air Suspension
LPG tank design and produce advantage :
1 ) The various types LPG tank is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency.
2 ) We inspect the quality of lpg tank product strictly,ensure that A and B type of welding seam pass the examination of level two radiographic test,C and D type of welding seam pass the examination of level one radiographic test.
3 ) There are domestic or imported safety accessories with high quality ,its matching is complet for lpg tank.
4 ) The anticorrosion coating of LPG tank adopt the following process, sandblast, spray painting ,purging and so on.
5 ) LPG tank Designing pressure:0.7~2.16Mpa Designing temperature:500C
56000L LPG tank truck specification:
| Design and production standard 1.TSG R0005-2011<Supervision regulation on safety technology for stationary pressure vessel> 2.JB/T19905-2005 < LPG transported tank truck>, GB150 1~4-2011<pressure vessels> |
||
| LPG tank truck specification | ||
| Filling gas | LPG (420kg/M3) | |
| Tank capacity | 56000L | |
| Loading weight | 23520kg | |
| Overall dimension | 12875*2500*3990mm | |
| Axles | BPW brand & three axles &12T | |
| Tire | 12.00R22.5 & 12+1units | |
| Pin | Jost Brand & 50# or 90# | |
| Loading leg | Jost Brand & 25T | |
| Suspension | Leaf spring suspension | |
| LPG tank specification | ||
| Tank material | Q345R | |
| Tank Designed thickness | End cover | 12mm |
| Tank body | 12mm | |
| Tank dimension | Dia2450mm*length 12508mm | |
| Tank weight | 9900kg | |
| Designed pressure | 1.77Mpa | |
| Testing water pressure | 2.66MPa | |
| Air tight test pressure | 1.77Mpa | |
| Heat treatment | Wholly get rid of stress | |
| Rust thickness | 1mm | |
| Design temperature | 500C | |
| Use Years | Ten years | |

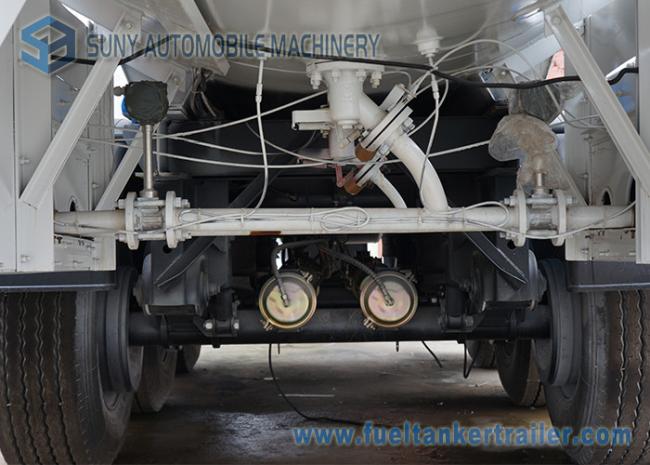

| other equipment | 1.double tool box 2.double valve box 3.double Emergency Cut-off Valve 4.single pipe liquid out 5.single side loading and unloading 6.With safe valve, Liquid level meter, Emergency cutting valve, Inlet and outlet |
|
