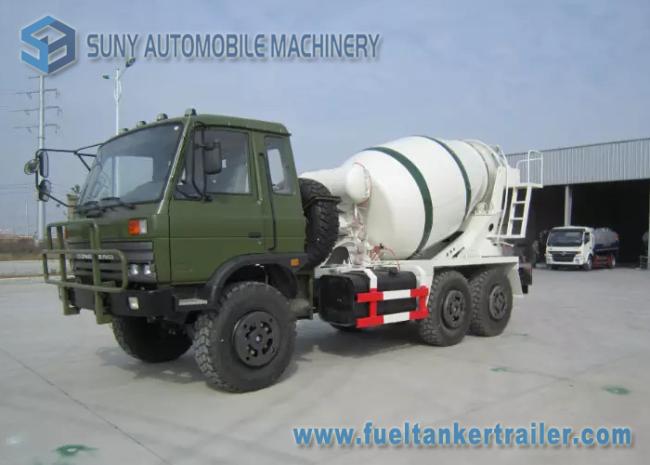

Dongfeng 6 X 6 All Wheel Drive 5 M3 Concrete Mixture Truck Off Road
Dongfeng 6 X 6 All Wheel Drive 5 M3 Off Road Cement Mixer Truck
Specification:
|
Dongfeng EQ5160G 6 X 6 off road cement mixer truck 5 cbm |
|||
|
brand |
Dongfeng |
|
|
|
Name |
EQ5160G 6 x 6 off road mixer truck |
model |
DFD5160G |
|
G . V . W ( Kg ) |
16050 |
Stirring volume |
5 cbm |
|
Load weight ( Kg ) |
7900 |
Overall dimension ( mm ) |
7825 × 2500 × 2925 |
|
Curb weight ( Kg ) |
7955 |
Cargo box size ( mm ) |
4850 × 2300 × 800 |
|
Cab passenger |
3 |
|
|
|
Approach / departure angle |
38 / 30 |
Suspension front / rear ( mm ) |
1450 / 1625 |
|
Axle number |
3 |
Wheelbase ( mm ) |
3500 + 1250 |
|
Axle load weight ( Kg ) |
4020 / 6015 / 6015 |
Top speed ( Km / h ) |
95 |
|
The others |
1. Net engine power corresponding to: YC6J180 42 to 128kW, ISDe185 40 is 130kW; 2. Side protection: Material Q235, connections after bolting under protection: Material Q235, bolted connection, section size 120 × 60mm, ground clearance 450mm; 3. Optional cab styling with form; 4. Installation with a satellite positioning function of tachograph. 5. ABS models: 3631010 - C2000, manufacturer: Dongfeng electronic Technology Co . , Ltd. brake systems: option |
||
|
Chassis parameters |
|||
|
chassis |
EQ5160GLJ |
Chassis |
Special truck chassis |
|
Brand |
Dongfeng |
manufacturer |
Dongfeng Motors |
|
Chassis overall dimension ( mm ) |
7565 × 2470 × 2850 |
Tire number |
6 |
|
Approach / departure angle |
35 / 36, 38 / 36 |
Tire specification |
12 . 5R20 |
|
Leaf spring |
10 / 12 |
Front wheel tread ( mm ) |
1916 |
|
Fuel fort |
diesel |
Rear wheel tread ( mm ) |
1876 / 1876 |
|
Emission standard |
Euro III or IV |
||
|
Engine model |
Engine manufacturer |
Displace ( ml ) |
Power ( Kw ) |
|
YC6J180 42 ISDe185 40 |
Yuchai diesel engine Dongfeng Cummins diesel |
6494 6700 |
132 136 |
|
Air conditioner |
With A / C |
Vehicle color |
Can be chosen |
Our Services
1. Factory Supply:
A. the biggest and famous vehicle manufacturer in china,
B. more than 300 kinds of special truck for your selecting.
2. OEM Ability: can be made according to your requirements, the material, the size, the color and the logo can be optional.
3. Good Quality:
A. has solid technology, advanced equipment; reliable quality and flexible modes of operation also have strict quality control system,
B. ISO9001 - 2008 standard and the 3C ( China Compulsory Certification ),
C. China top brand with good reputation at home and abroad.
4. Good Service: 24 - hour hotline and email. Offer quickly no more than 5 minutes.
5. Fast Delivery: 10 - 35 days after payment, safe and quick delivery depends on your order quantity.
FAQ
1. Price term: FOB Shanghai in China. CIF for destination port.
2. Payment: T / T 30 % deposit after order confirmation, 70 % balance cash before delivery.
3. Delivery time: 10 - 35 working days after payment is received.
4. Standard Steering: Left - hand drive, if you need Right - hand drive type, please inform us in advance, we can make the special order for you.
