Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity
Black HOWO 6X4 Concrete Mixer Truck 7 Cubic Metre Drum Volume Mixing Capacity

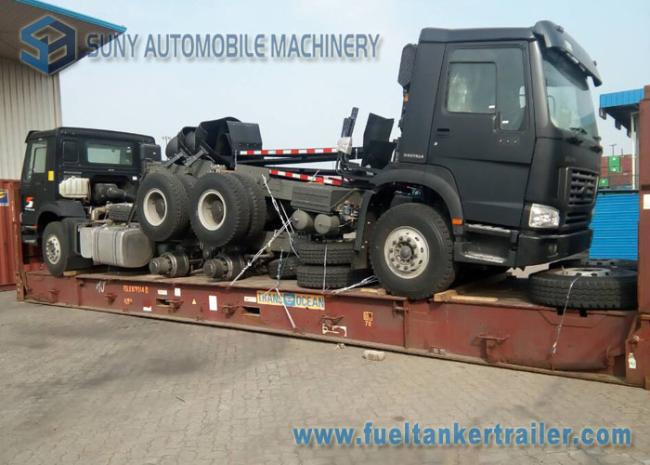

1 . Container guarantee to not be damaged at the shipping .
2 . Protective Packaging
3 . Protective packaging according to the characteristics of the products .
Packages after the water spray test , no water leakage .
4 . Proof packaging
Take the necessary measures moisture proof packaging goods .
5 . Rust - proof packaging
Products sealed with rust - proof material has a very good rust resistance , easy to remove .
Specifications:
Black HOWO 6X4 Cement Mixer Truck 7 Cubic Metre Drum Mixing Capacity
MAIN DESCRIPTION | |||
| Overall Dimensions | 8410mm * 2480mm * 3720mm ( L * W * H ) | ||
| Tare Weight | 10480kg | Payload | 15000kg |
| Front Overhang | 1500mm | Rear Overhang | 2335mm |
| Wheelbase | 3225mm + 1350mm | Track ( F / R ) | 2022mm / 1830mm |
CHASSIS | |||
| Chassis Brand | SINOTRUK HOWO | ||
| Chassis Model | ZZ1257M3241 , driving type 6 x 4 | ||
| Cab | Standard HW70 , left hand drive , air - conditioner , no sleeper | ||
| Engine | SINOTRUK WD615 . 62 , 336hp , Euro III emission standard , 4 - stroke direct injection Diesel engine , 6 - cylinder in - line with water cooling , turbo - charging and inter - cooling , displacement 9 . 726L | ||
| Transmission | HW15710 , No . of speeds : 10 forward & 2 reverse | ||
| Steering | German ZF8098 , turning system pressure 18MPa | ||
| Rear Axle | HC16 tandem axle , rated load 2 x 13ton , ratio 5 . 73 | ||
| Wheels and tires | Rim 8 . 00 - 20 ; tire 11 . 00 - 20 , 10 units ; Spare wheel carrier : with one spare wheel | ||
| Brakes | Service brake : Dual circuit pneumatic brake ; Parking brake : Spring energy , compressed air operating on rear wheels ; Auxiliary brake : Engine exhaust brake | ||
MIXING SYSTEM | |||
| Mixing Volume | 6cbm | ||
| Water Tank Volume | 400L | ||
| Hydraulic Pump | Brand : ARK , Italy | ||
| Motor | Brand : ARK , Italy | ||
| Speed Reducer | Brand : PMP , Italy | ||
| Mixing Drum | Body steel plate thickness 6mm , Front end thickness 8mm . | ||
1 . Q : How about warranty ?
A : 18 month since successful installation .
2 . Q : What certificate do you have ?
A : ISO9001
3 . Q : What is the productivity of concrete mixer and concrete batching plant ?
A : The productivity of concrete mixer ranges from 6m3 / h to 100m3 / h . The productivity of concrete batching plant ranges from 25m3 / h to 180m3 / h.
4 . Q : What is the brand of mixer ?
A : Most of mixer is manufactured by ourselves and achieved the domestic leading technology , the international advanced level . If you want the SICIMA which is also provided , for we have cooperated with SICOMA for many years . So the price is the best .
5 . Q : How many days it need to install the concrete mixing plant ?
A : It takes about 10 days , it ’ s modular production and easy to install .
More Pictures :
