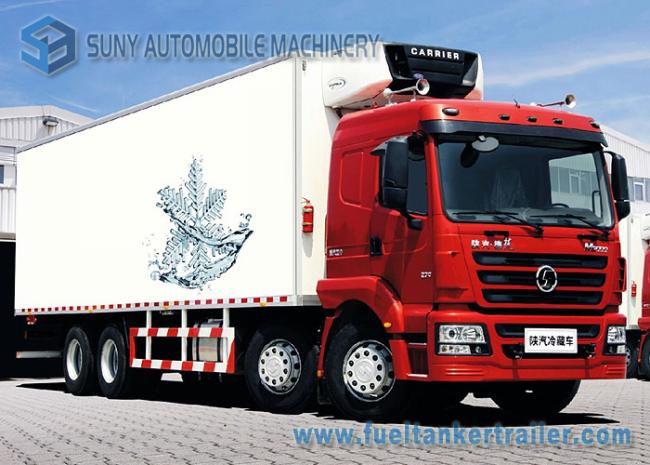

Box 50 Cubic frozen truck rental Shacman 8x4 Heavy Cooling Van Truck 260 HP
Box 50 Cubic frozen truck rental Shacman 8x4 Heavy Cooling Van Truck 260 HP
8x4 Shacman Refrigerated trucks, Refrigerator Trucks, Frozen Truck , Reefer Van Truck , Cooling Box Truck , Insulation Van Truck (no refrigerator unit)
Thickness: FRP inside & outside of the van, polyurethane as the insulation.
Stainless steel, Q235A steel sheet or aluminum are all optional.
Refrigerators chosen from:
South korean Hanya, HuaSu.
American Thermoking, Carrier.
Chinese Xinfei, Kingbo, etc.
Temperature reaches from -18°C to 0°C
Total capacity: approx. 30000 KG ~ 40000 KG ~ Max .45000 KG
Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional
| Products Technical Specification | |
| Type | 260hp 8*4 Refrigerated Van Truck |
| Brand | Shacman |
| Cab | One and half row |
| Vehicle Description | |
| Overall dimensions(mm) | 11990*2550*3990 |
| G.V.W (kg) | 31000 |
| Curb weight(vehicle) (kg) | 12930 |
| Loading capacity (kg) | 25000 |
| Max speed (Km/h) | 99 |
| Engine Description | |
| Engine model | WD615.56 |
| Maximum power | 191kw / 260hp |
| Displacement (lit) | 9.726 |
| Chassis Description | |
| Chassis Model | SX1314BL366 |
| Wheel base(mm) | 1800+4575+1350 |
| F/R track base(mm) | 2011/1860 |
| F/R overhang(mm) | 1485/2780 |
| Approach/Departure angle(°) | 20/11 |
| Spring plate | 10/10/12+8 |
| Type of fuel | Diesel |
| Gear box | 9-speed with over drive |
| Brake system | Air braking |
| Operation control system | Power Steering |
| Electric system | 24V |
| Tyres&Tire quantity | 12.00R20 & 12+1 |
| Cargo Body Description | |
|
Dimension(mm):9500*2330*2490 Material: the polyurethane foam between the inner-outer color plate Independent refrigeration unit: equipped with the DS-500S,Hanya brand Temperature range: -18°C Heat preservation layer:8cm
|
|
