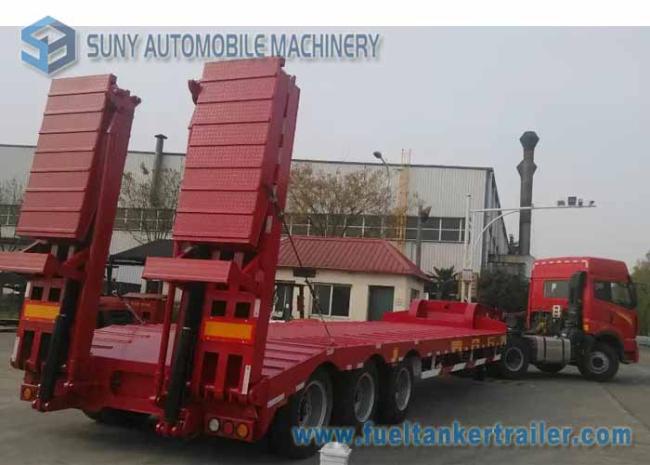

80 T Hydraulic Ladder 3 Axles Lowbed Semi Trailer , heavy duty flatbed trailer
80 T Hydraulic Ladder 3 Axles Lowbed Semi Trailer , heavy duty flatbed trailer
Semi trailer is our company's main product . We configure Grid type semi trailer , low bed semi trailer , container semi trailer , flat bed semi trailer , LPG tank semi trailer , fuel tank semi trailer , water tanker semi trailer , fecal suction semi trailer , sewage suction semi trailer , compactor garbage semi trailer , van semi trailer, box semi trailer , water tank semi trailer , bitumen semi trailer , bulk cement semi trailer , dump semi trailer , chemical tank semi trailer and etc . We produce tank semi trailer with plastic lining , aluminum tank , aluminum alloy tank , rotational molding , carbon steel , stainless steel , production according to the customer's requirement .
| Tare Weight | About 11 T |
| Dimension | 13000 mm *2500 mm * 3900 mm (Remove the ladder height 1800 mm) |
| Loading Capacity (T) | 80 T |
| Axle | 16T, FUWA Brand |
| Rim | 8.5-20 (Special for export market) |
| Tire | 12.00R20 * 13 units (with one spare tire) Triangle brand |
| Suspension | Heavy duty Mechanical suspension (Special for export market) |
| Spring leaf | 90(W) mm * 16(Thickness) mm * 10 Layer (Special for export market) |
| King pin | JOST brand 2.0 or 3.5inch Welding type |
| Support leg | JOST brand C200T |
| Main beam |
Height: 520 mm, upper plate is 25 mm, middle plate is 12 mm, 25 mm ; Material is Q345B Steel . |
| Side beam | 20 mm channel steel ( Material is Q235steel ). |
| Bottom Platform | 5 mm thickness diamond steel plate |
| Ladder | Manual type |
| Gooseneck | For choose |
| Brake chamber | WABCO RE 6 relay valve; T30 / 30 + T30 Spring brake chamber; one piece of 45 L air tanks |
| ABS | Without |
| Twist Locks | Twelve pieces (Lifting type) |
| Valve | WABCO valve |
| Light | LED light (Special for export market) |
| Voltage | 24 V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1 m×0.5 m×0.5 m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
