Hydraulic Legs red Flatbed Semi Trailer , 30 T 40 T dual axle trailer
Hydraulic Legs red Flatbed Semi Trailer , 30 T 40 T dual axle trailer
Semi trailer is our company's main product . We configure Grid type semi trailer , low bed semi trailer , container semi trailer , flat bed semi trailer , LPG tank semi trailer , fuel tank semi trailer , water tanker semi trailer , fecal suction semi trailer , sewage suction semi trailer , compactor garbage semi trailer , van semi trailer, box semi trailer , water tank semi trailer , bitumen semi trailer , bulk cement semi trailer , dump semi trailer , chemical tank semi trailer and etc . We produce tank semi trailer with plastic lining , aluminum tank , aluminum alloy tank , rotational molding , carbon steel , stainless steel , production according to the customer's requirement .
| Products Technical Specification | |
| Capacity | 40T |
| Dimension (L*W*H/mm) | 13000*2500*2980mm |
| Chassis (Main Beam) |
Heavy duty and extra durability designed, Opting for high tensile steel Q345. 500mm height; Top flange 16*140mm; Middle flange 10mm; Bottom flange 20*140mm, Side beam30﹟A, Floor Steel 3mm. 900mm from the floor to the loading plate. Tyre outside the plate |
| King pin | 2" standard welded style |

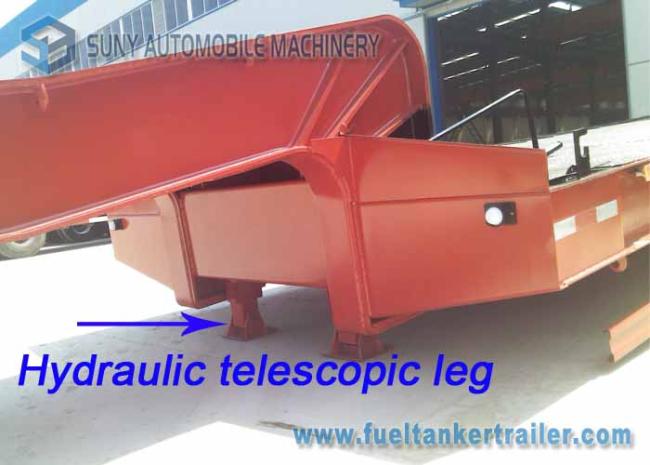

| Landing gear | China Brand Hydraulic Legs |
| Axle | Two Units of FUWA(brand) 13T 10 Hole Axle |
| Suspension | Leaf spring 90*16mm 7pcs |
| Tyre ( Wheel Rim) | 9 units of 10.00R20 Steel Tyre, include One spare tyre. |
| Brake | 9 units of 7.5-20 Wheel rim. |
| Electric |
One unis of WABCO RE 6 relay valve; Two units of T30/30 Spring brake chamber; Two units of T30 Spring brake chamber. One units of reliable local brand 40L air tank. |
| Painting |
Sand blasting processing clean rust 1 coat of anticorrosive primer, 2 coats of finish urethane paint color at customer’s choose. |
| Other | One spare tyre holder; one box with a set of standard trailer tool. Distant from King pin to the front part: 450mm |
| Packing |
Transfer to Shanghai port, and carry by ro-ro ship, the ocean freight depends on the voulumn. |

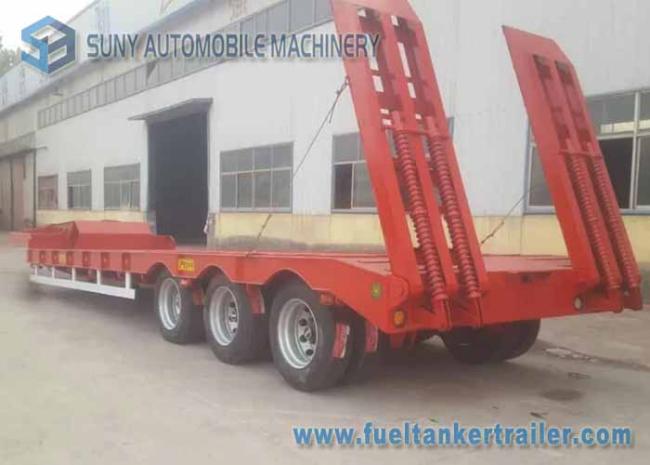

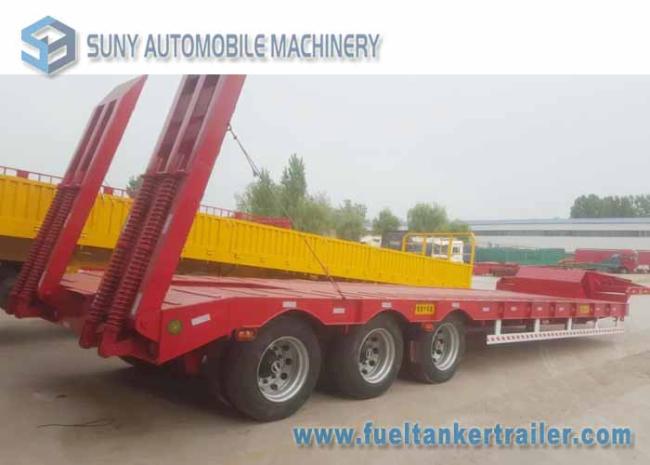

Optional 3 Axles Lowbed Semi Trailer Equipped Hydraulic Legs
