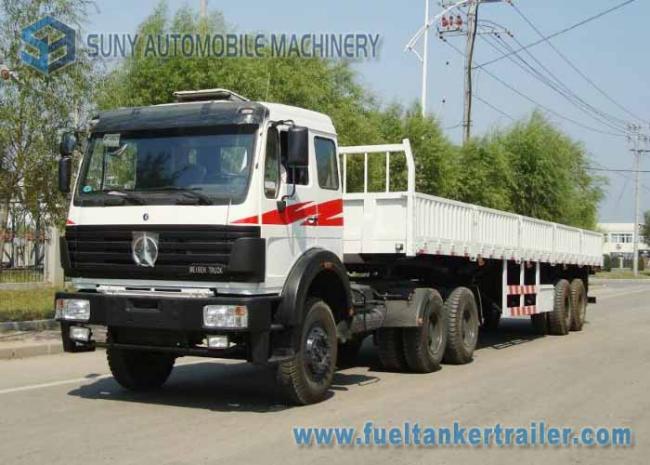

Trailer Load 30T 35 T Double Axle Cargo Smei Trailer Box Length 11 m
Trailer Load 30T 35 T Double Axle Cargo Smei Trailer Box Length 11 m
Semi trailer is our company's main product . We configure Grid type semi trailer , low bed semi trailer , container semi trailer , flat bed semi trailer , LPG tank semi trailer , fuel tank semi trailer , water tanker semi trailer , fecal suction semi trailer , sewage suction semi trailer , compactor garbage semi trailer , van semi trailer, box semi trailer , water tank semi trailer , bitumen semi trailer , bulk cement semi trailer , dump semi trailer , chemical tank semi trailer and etc . We produce tank semi trailer with plastic lining , aluminum tank , aluminum alloy tank , rotational molding , carbon steel , stainless steel , production according to the customer's requirement .
| Products Technical Specification | |
| Product Name | 2 axles Cargo semi trailer |
| DIMENSIONS & WEIGHT | |
| Overall dimensions (L×W×H) (mm) | 11500×2490×3200 |
| Wheel base (mm) | 6850+1310 |
| G.V.W (kg) | 45,000 |
| Curb weight (kg) | 6,500 |
| CHASSIS | |
| Maia beams |
Heavy duty and extra durability designed, Opting for high tensile stell Q345. 500 mm height; Upper plate is 14 mm, lower plate is 16 mm, middle is 8 mm, 3 mm diamond steel plate |
| Axles | 2 axles |
| FUWA 13T | |
| Landing gear | FUWA 28"heavy duty landing gear |
| King pin | 2.0’’or3.5’’ traction pin JOST brand(bolts type) |
| Suspension | Mechanical suspension FUWA Brand |
| Emergency Brake | WABCO |
| Brake Chamber | Four double and two single chamber( TKL brand ) |
| Wheel rim | 8.0-20 |
| Tire | 11.00r20 Triangle brand |
| Electrical | Voltage24V,Receptacle7 ways(7 wire harness) |
| Miscellaneous | Painting,Marking,Side Guard,According to the requirement of the buyer Tools box 1 pieces |
| Front marker lamp,front corner marker lamp is red, Reflector lamp is white Side marker lamp,Orange. Rear lamp,Red Turn signal lamp,Orange | |
