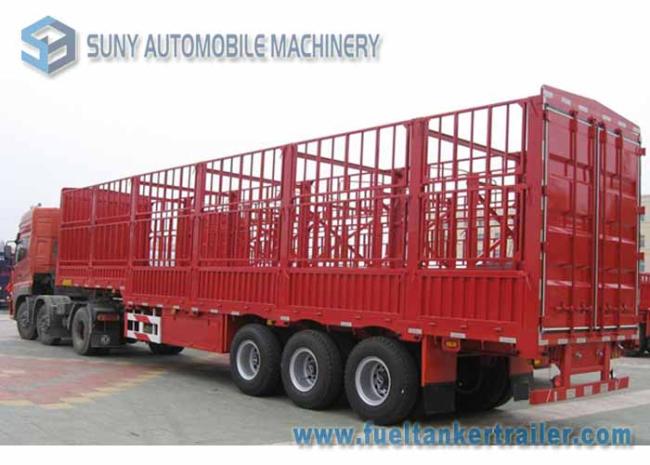

Length 12 m Fenced Flatbed Semi Trailer 3 Axles Load Capacity 50 T 55 T
Length 12 m Fenced Flatbed Semi Trailer 3 Axles Load Capacity 50 T 55 T
Semi trailer is our company's main product . We configure Grid type semi trailer , low bed semi trailer , container semi trailer , flat bed semi trailer , LPG tank semi trailer , fuel tank semi trailer , water tanker semi trailer , fecal suction semi trailer , sewage suction semi trailer , compactor garbage semi trailer , van semi trailer, box semi trailer , water tank semi trailer , bitumen semi trailer , bulk cement semi trailer , dump semi trailer , chemical tank semi trailer and etc . We produce tank semi trailer with plastic lining , aluminum tank , aluminum alloy tank , rotational molding , carbon steel , stainless steel , production according to the customer's requirement .
| Trailer Specification | ||
| Dimension (L*W*H) | 12500*2500*3500mm | |
| Height of side wall | 800mm+barrier | |
| Tare weight | Approx. 11000kg | |
| Loading weight | Approx. 60000kg | |
| Chassis | ||
| Main beam | Material | Q345Steel |
| Thickness | 500mm | |
| Plate | Upper plate is14mm; Middle plate is 8mm;Down plate is 16mm. | |
| Cross beam | 10# channel steel | |
| Side beam | 16# channel steel | |
| King Pin | 90# or 50# traction pin | |
| Twist Locks | 4 pieces | |
| Suspension type | Mechanical suspension | |
| Running system | ||
| Axle | FUWA 13T | |
| Number of axle | 3 units | |
| ABS | Equipped | |
| Tire | 12.00-20 | |
| Number of tire | 12 pieces | |
| Brake system | ||
| Brake Chamber | 6 big chamber | |
| Brake Valve | Chinese famous brand | |
| Brake system | Dual Line Brake system | |
| Others | ||
| Tool box | 1 set standard tool box | |
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| Painting | 1 coat of anticorrosive prime, twice coats of final paint. | |
| Spare Tire Carriers | 2 pieces | |
| Leading gear | 28T Manual operating, Heavy duty landing gear | |
