ISO BV SGS 50000L undergrond horizontal type cylinder LPG gas storage tank , LPG tank trailer
ISO 50000L undergrond horizontal type cylinder LPG gas storage tank
Quick Description:
1. LPG propane gas storage tank volume: 50 m3, 50 cbm, 50000 L, 50000 liters;
2. LPG propane gas storage tank diameter: 3100 mm;
3. LPG propane gas storage tank material: Q345R;
4. accessories: Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc.
5. Designing pressure:1.77 Mpa Designing temperature: -19 °C to 50 °C.
Competitive Advantage:
ISO CCC SGS BV ASME produce standard for your optional
Pproduction Process:
1. The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity, light weight and high efficiency.
2. We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.
3. There are high safety domestic or imported safety accessories for customers option.
4. The anti-corrosion coating of LPG tanker adopt the following process, sandblast, spray painting, purging and so on
Specifications:
| 20T (50M3) LPG storage tank | |||
| Tank type | III | ||
| Working Medium | LPG (propane) | ||
| Design Specific Gravity | 0.42 Kg/L | ||
| Media characteristics | Flammable and explosive | ||
| Capacity | 20MT(50M3) | ||
| External Dimensions (length*width*height) | 9182*2730*3318mm | ||
| Tank dimension (length*diameter) | L9182*2700mm | ||
| Tank weight (nominal) | 10640kg | ||
| Max payload weight | 19950kg | ||
| Tank material | Q345R | ||
| Barrel design thickness | 13.7mm | ||
| Head design thickness | 13.67mm | ||
| Welded joint coefficient | 1.0 | ||
| Design temperature | 50 0C | ||
| Working temperature | -20~50 0C | ||
| Corrosion allowance | 1.0 mm | ||
| Design pressure | 1.77 MPa | ||
| Hydraulic test pressure | 2.22 MPa | ||
| Leak test pressure | 1.77 MPa | ||
| Heat treatment type | Wholly get rid of tress | ||
| Paint | paint white color, or paint the color you request. | ||
| The first installation accessory and nozzle size | Safe valve | DN80 | 1 |
| Disconnecting valve | DN50 | 6 | |
| DN25 | 2 | ||
| Level gauge | L2940mm | 1 | |
| Pressure meter | 1 | ||
| Temperature meter | 1 | ||
| Product standard | China Standard GB150 | ||
| Standard design and manufacture |
1.JB/T4731-2005 < Steel horizontal vessels on saddle supports> 2.GB150-1998<steel pressure vessels> 3.TSG R0004-2009<Supervision regulation on safety technology for stationary pressure vessel> 4.HG20584-1998<technical requirements for fabrication of steel chemical vessels> 5.NB/T47015-2010<welding specification for steel pressure vessels> |
||

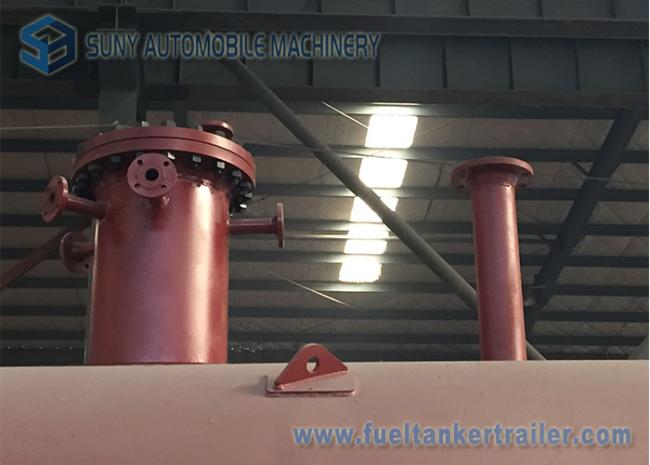

More picture show:
