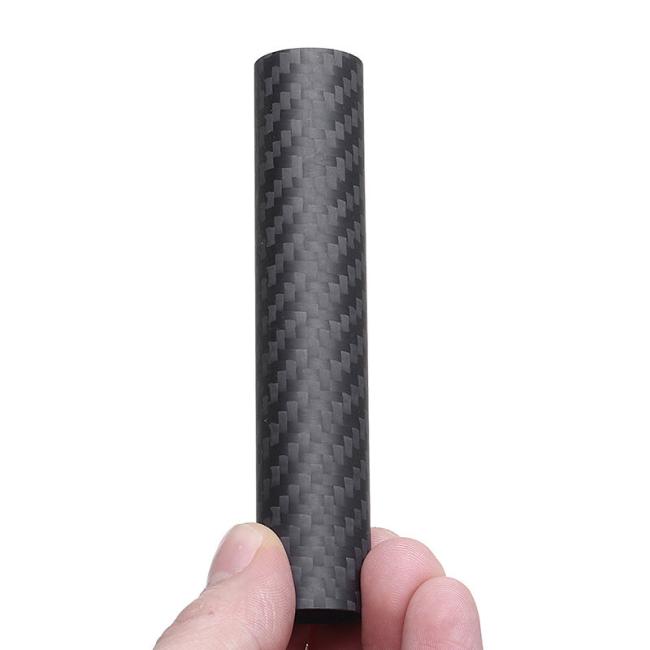

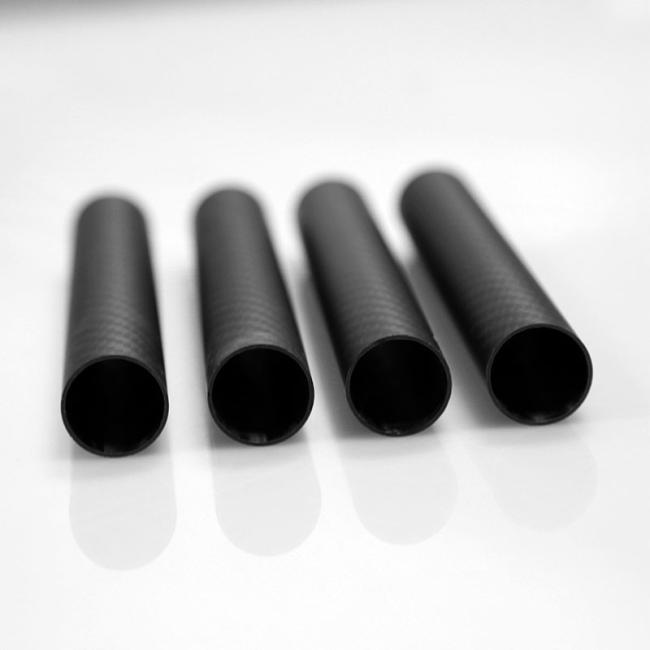

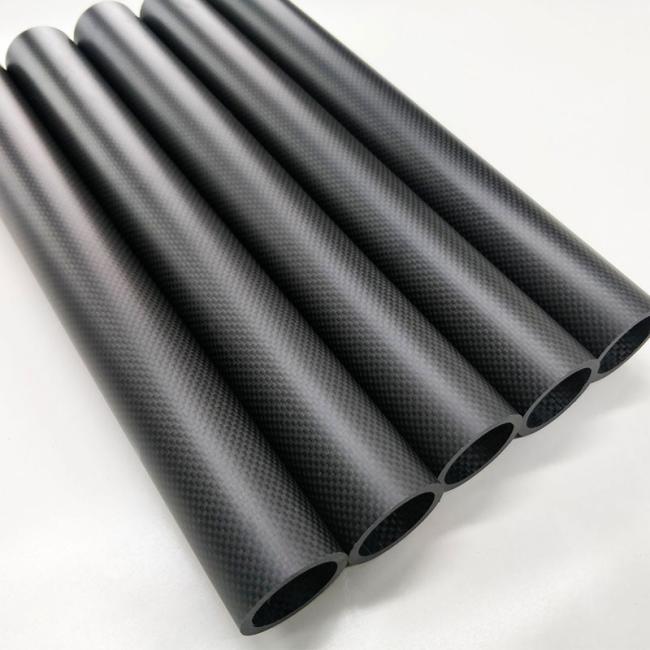

3K Roll Wrapped Carbon Fiber Twill Matte Finish Carbon Fiber Tubing

Carbon fiber tubes are produced by wrapping pre-impregnated (pre-preg) carbon fibre under tension around a mandrel, and then cured in a specialist oven. This produces a very consistent and high-quality finished tube for many different applications such as building or repairing UAV’s, robotics and RC products and outdoor products.

Carbon fiber tubes are used in numerous applications like tactical ladders, trusses, bridges, Car, and more. Carbon fiber is typically chosen over traditional materials such as aluminum, steel, and titanium because of the following properties:

• High strength and stiffness to weight
• Excellent resistance to fatigue
• Dimensional stability: Low CTE (Coefficient of Thermal Expansion)
• Resistance to corrosion
• X-Ray transparency
• Chemical resistivity

QUICK OVERVIEW

• Made of Carbon Fiber material
• High Strength
• Stable dimension and UV resistant
• High Corrosion Resistance
• High Thermal Conductivity in some forms
• Low coefficient of thermal expansion
• Non-poisonous

Carbon fiber tube rolling layers

From the surface carbon fiber tube looks are same, but different carbon rolling layers' directions will let carbon tube strength be different if used for decoration 0-90° just simple rolling tech is enough this tube won’t undertake heavyweight. If used for industry or car or another file, it needs to have very good strength 0 – 90 +45 -45°mixed layers can offer good strength for your usage. So if you could tell us your usage our engineer can recommend good carbon tube layers for you.

Typical Uses

Roll wrapped tubes are better for applications where the tube may be subject to a variety of forces including bend, twist and crush. These light 12mm tubes are suitable for demanding engineering applications including scale aircraft, gliders, helicopter U.A.V.’s, lightweight frames or structures, tubular vessels, poles, column supports or any construction that requires strength, rigidity and lightness yet appearance is also important. They are equally suited to other precision applications like robotics and automation.
