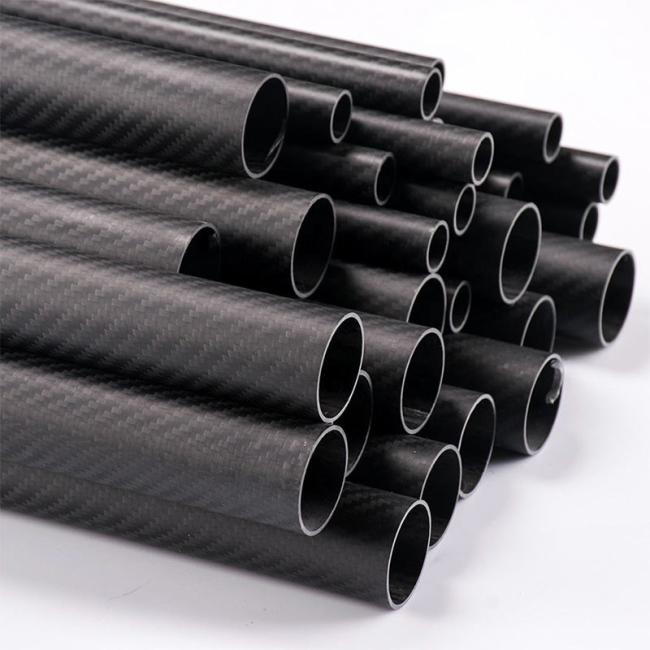

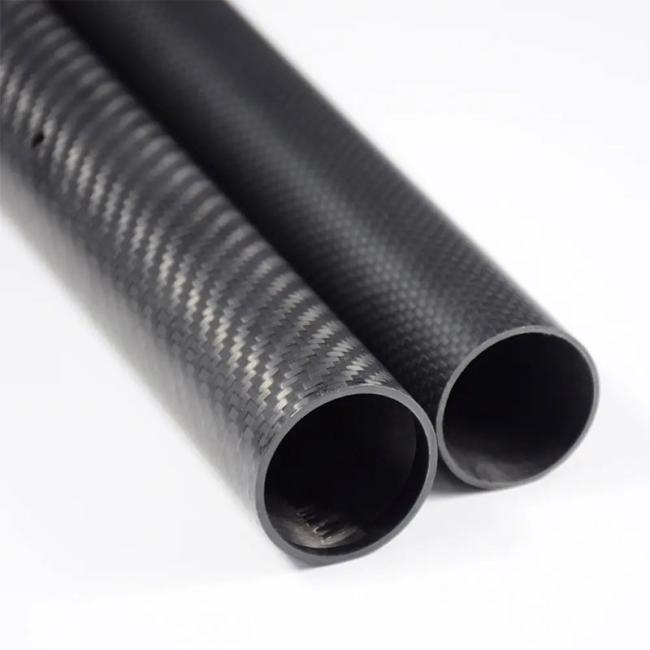

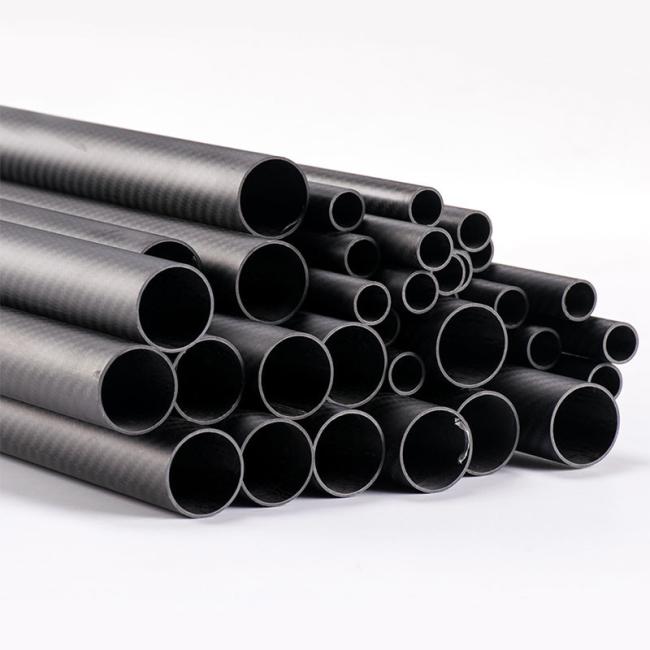

3K Roll Wrapped Twill Matte Finish Carbon Fiber Tube 8 / 10 / 12 / 16 / 22 / 25 / 30mm
8/10/12/16/22/25/30mm Available, 3K Roll Wrapped Twill Matte Finish Carbon Fiber Tube
These carbon fiber tubes are tightly wound when roll-wrapped for a low resin content 100% carbon fiber continuous tube. Each tube's inner and outer diameter specifications are very accurate. These ultra-stiff and lightweight tubes make excellent spars or drone arms/gimbal parts.
The carbon 3k matte twill carbon fiber bar has very high strength and is very lightweight. Great for DIY for many rotor copters and is a preferred material. Has very good anti-skid characteristics and makes pipe clamping very easy.
Our carbon fiber tubes are all manufactured by our own production workshops. Our carbon fiber material is imported from Japan. Because of their lightweight and high strength, which are wildly used for automation robotics, telescoping poles, FPV frame, and sports equipment.
Features:
- Lightweight, the density of carbon fiber composite materials is generally 1.6-2.1G / GM3
- Low coefficient of thermal expansion, lower than all metals
- Stiffer more than metal tubing
- Stronger than steel by weight
- Corrosion resistant than metals
- Withstands more loading cycles than metal
- Strength can be designed directionally
- low heat transfer rate
- UV resistance and corrosion resistance
- Wear-resistant and impact-resistant
- Permeability, non-toxic, stable in chemical properties, and permeable to X-rays, so they are widely used
| Material | Round Carbon Fibre Tube |
| Shape | Round/Oval |
| Technology | Roll-wrapped or pultrusion |
| Dimension | The existing inner diameter of the mold is 4mm-50mm with a length of 1m. |
| Customizable size: The maximum diameter can be 200mm, the longest can be 3m. | |
| Surface | Black glossy/matte surface/painted |
| Glossy 3k weave/matte 3k weave | |

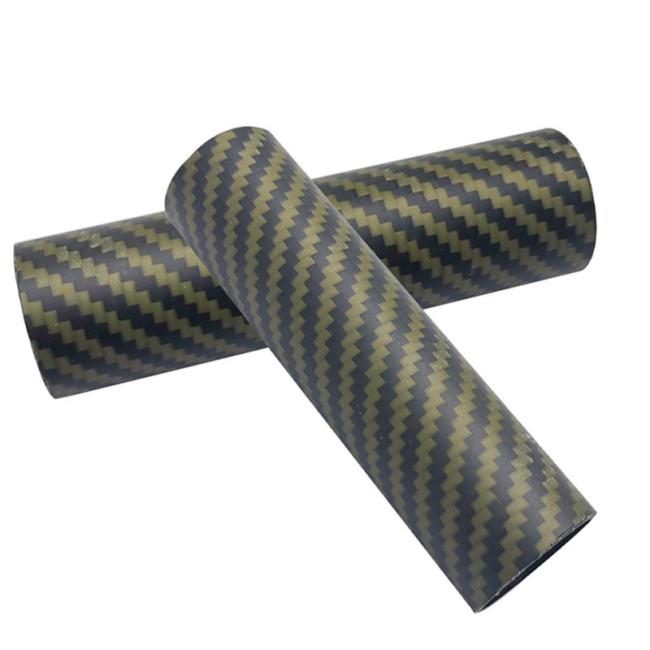

| Color metal wire weave | |
| Feature | lightweight, high strength |
| Working Temperature | Usually, -30-120 degrees, if special requirement, please let us know. |
| Place Of Origin | China |
| Function | Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products |
| Tolerance | Diameter Tolerance: +/-0.1mm |
| Length Tolerance | +/-1mm |
Typical Uses
Roll-wrapped tubes are better for applications where the tube may be subject to a variety of forces including bend, twist, and crush. These light 12mm tubes are suitable for demanding engineering applications including scale aircraft, gliders, helicopter UAVs, lightweight frames or structures, tubular vessels, poles, column supports or any construction that requires strength, rigidity, and lightness yet appearance is also important. They are equally suited to other precision applications like robotics and automation.
