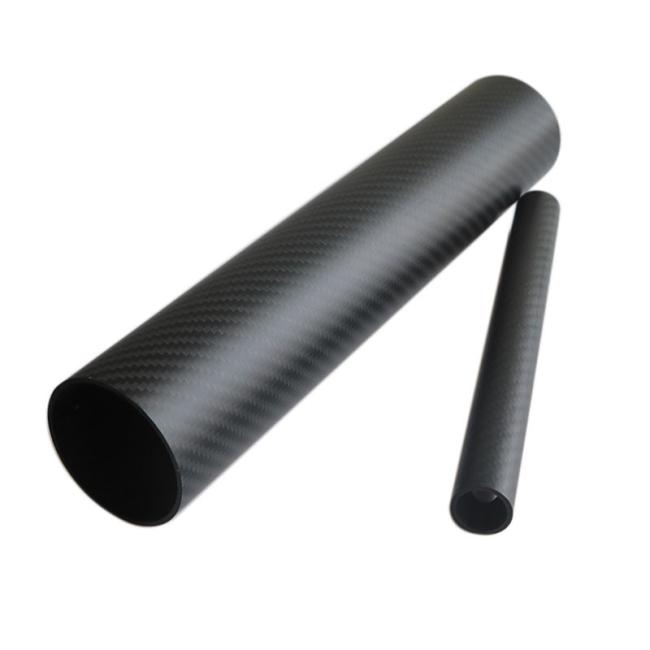

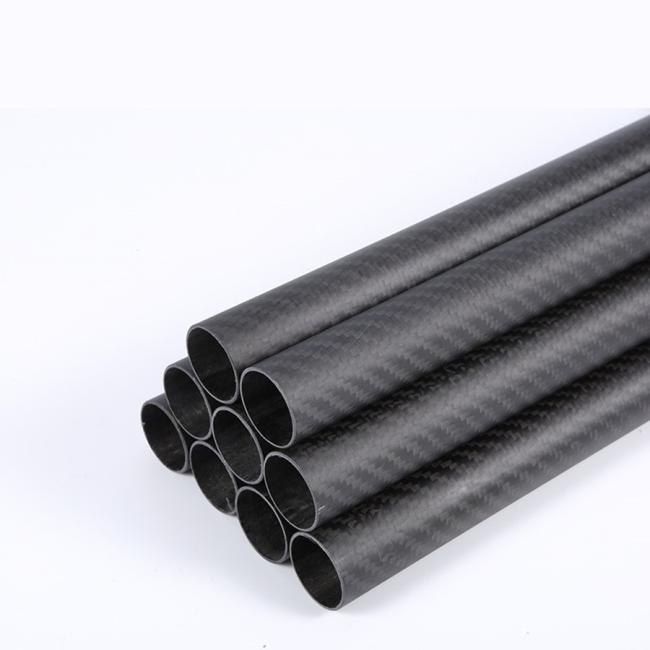

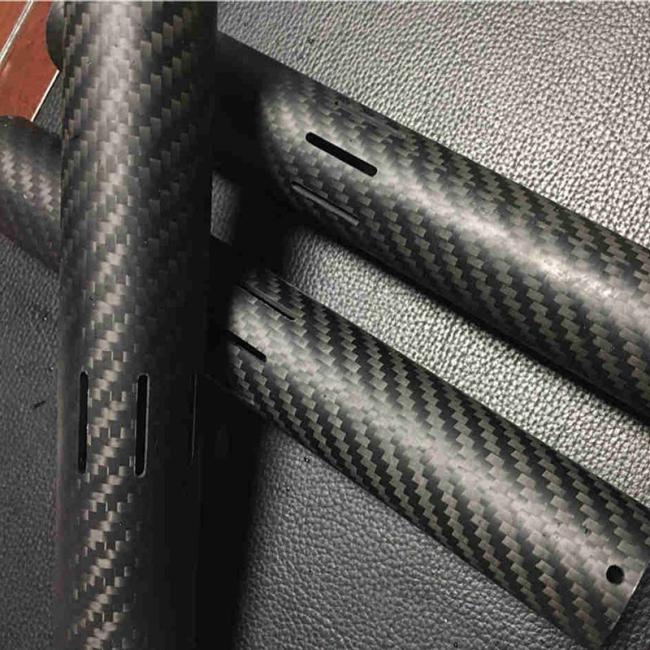

High-Performance Strong Corrosion Resistance 3K 180MM Diameter Carbon Fiber Tubes

Carbon fiber tubes are used in numerous applications like tactical ladders, trusses, beams, and more. Carbon fiber is typically chosen over traditional materials such as aluminum, steel, and titanium because of the following properties: High strength and stiffness to weight. Excellent resistance to fatigue.

Different from Pultruded carbon fibre tubes, a roll-wrapped tube is lighter in weight, stiffer and stronger. It is widely used for many projects in sports, RC, robots, etc. by hobbyists for surface protection. 3K Carbon fibre tube with high strength, stiffness, and excellent load-bearing performance.

This 3K Woven Finish tube is manufactured from alternating layers of unidirectional prepreg carbon fibre for maximum strength with the final layer swapped for 2/2 twill, 3K woven carbon fibre so that the tube has the classic appearance of woven carbon fibre. This means that although the tubes are designed for demanding mechanical applications, they also look fantastic, adding a cutting-edge carbon fibre appearance to any application.

Features

• Lightweight (4 times lower than steel)
• High strength - moderate stiffness
• Corrosion and chemical resistant (low maintenance)
• Excellent impact energy absorption
• High fatigue resistance

Highlights

• Beats high performance alloys
• Machinable like metal
• Clean production process (no emissions or water consumption)
• Technology with high quality and short process cycle
• Flexible in diameter, length, wall thickness and reinforcement direction
• Short delivery time

Main Performance:

1. Lightweight. Super low density, only about 1.5 g/cm³.
(fiberglass 1.95,aluminum 2.7 and steel 7.85) less than 1/5 of steel.
2. Super strength. About 5 times of steel.
3. High modulus
4. Corrosion-resistant. Anti-acid,anti-alkali.
5. Never rust. Which is more excellent than stainless steel.
6. UV-resistant
7. Durable. With a long lifetime.
8. Radiation-resistant
9. X-ray transparency
10. Super high temperature-resistant
11. Pretty weak thermal conductivity
12. Superior dimensional stability
13. Supremely high rigidity
14. Eco-friendly

What are carbon fiber tubes made of?

Large diameter carbon fiber tubes are typically constructed using rolled bi-directional woven carbon fiber. By combining the right fiber, fiber orientation, and fabrication process, carbon fiber tubes can be created with the proper characteristics for any application.

How strong is carbon fiber pipe?

Strength, Stiffness, and Comparisons With Other Materials

The modulus of carbon fiber is typically 33 msi (228 GPa) and its ultimate tensile strength is typically 500 ksi (3.5 Gpa).
