4× Higher Stiffness Precision Finish Superior Strength Carbon Fiber Telescoping Tube

4× Higher Stiffness Precision Finish Superior Strength Carbon Fiber Telescoping Tube

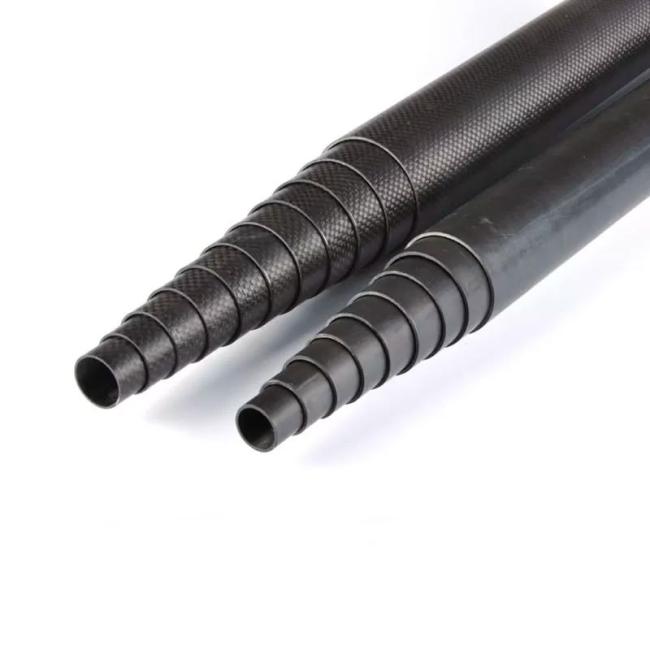

Our carbon fiber telescoping tubes are multi‑section hollow rods made from T700/T800 prepreg with a 3K twill or UD black outer layer, cured in an autoclave or via wrap‑pultrusion taper‑fit processes. Each segment extends 0.3–2 m, with total reach up to 12 m and collapse to just 1/5–1/7 of its length—solving carry, storage, and transport challenges for outdoor, industrial, medical, and photographic uses.

Carbon Fiber Telescoping Tubes deliver ultra‑lightweight extendable poles with exceptional rigidity and smooth positive‑lock sections—ideal for precision reach applications.

• Key Advantages: Up to 70 % lighter than aluminum, 4× higher stiffness, corrosion‑proof durability.
• Applications & Value: Perfect for camera masts, antenna booms, inspection poles—boosting portability, stability, and deployment speed.

Request your custom quote now from our ISO 9001‑certified factory and experience factory‑direct quality you can trust.

Core Advantages

• Ultra-Light: 1.55 g/cm³ density—60–70 % lighter than aluminum poles
• High Rigidity: 140–160 GPa flexural modulus; sag < 1 % on full extension
• Rapid Locking: Internal taper self‑lock plus external cam clamp or quick‑release pin locks in ≤ 1 s
• Corrosion‑Proof: Stable pH 3–11, 1 000 h salt‑fog tested—zero maintenance at sea
• Wide Temperature Range: −40 °C to +180 °C continuous; instant 200 °C tolerance

Structural Styles

• Taper‑Fit Sections: 0.8–1.5° taper—tightens under extension, zero play
• Straight Sections: 0.08–0.12 mm concentric clearance + spiral lock ring
• Hybrid Design: Base straight tube + tapered top segments for maximum straightness and stiffness

Typical Applications

• Marine Fishing: 3.6 m 7‑section pole, 30 kg load, 580 g total weight
• Fire Rescue: 10 m 9‑section rod + hydraulic lock, 60 kg throw
• Solar Maintenance: 6 m 6‑section brush pole—single‑person roof cleaning
• Photography: 5 m 6‑section mast + 360° head for high‑altitude shots
• Medical: 2 m 5‑section foldable stretcher rod—fits in ambulance trunk

Specifications

Appearance

This 3K Woven Finish tube is manufactured from alternating layers of unidirectional prepreg carbon fibre for maximum strength with the final layer swapped for 2/2 twill, 3k woven carbon fibre so that the tube has the classic appearance of woven carbon fibre (the same as our carbon fibre sheets for example). This means that although the tubes are designed for demanding mechanical applications, they also look fantastic, adding a cutting-edge carbon fibre appearance to any application.

To achieve the smooth, glossy appearance the tubes are surface ground, lacquered (with high-gloss UV-resistant lacquer), and then polished. The result is a carbon fibre tube of unrivalled visual appearance making it ideally suited for use in applications where it will be seen.

Performance

Although specially laminated, ground, lacquered and polished to produce a carbon fibre tube with a stunning appearance, our 3K Woven Finish tubes are serious tubes suitable for demanding engineering applications including robotics/automation, R/C models, UAVs, recreational equipment, motorsport and marine.

Order Flow

• Tell us the size of carbon fiber products, including length, diameter, width, and thickness, etc. if you have specific requirements, Pls let me know. It is better that you have a file/drawing(.dwg /.stp/.igs format ) to describe your request.
• We will analyze your request, supply you best solution then give you the best price.
• You received the price and arranged samples for us.
• We will prepare a sample for you, Normally it will take about 3~7 working days. Then we deliver the sample to you for the test.
• You received a sample and test okay. Then arrange formal order to us.

,
