Filament wound Carbon Fiber Fiberglass composite Tube 2.75Inch Cylinder

Application: Cylinder

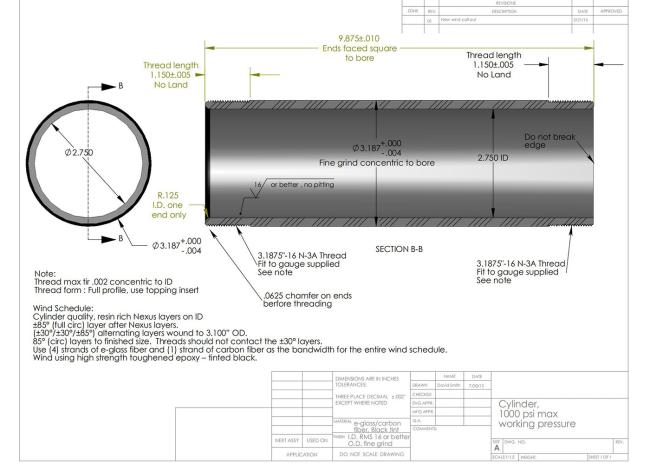

Item name: Cylinder 2.75ID 3.187OD 9.875 Lgth

-1) Material and Production: Cylinder quality, resin rich Nexus layers on ID +/-85

degree(full circ) layer after Nexus layers. (+/-30, +/-30, +/-85 degree) alternating layers

wound to 3.100 inch OD. 85 degree(circ) layers to finished size. Threads should not

contact the +/-30 degree layers. Use (4) strands of e-glass fiber and (1) strands of

carbon fiber as the bandwidth for the entire wind schedule. Wind using high strength

toughened epoxy-tinted black.

2)Size: 2.750 ID (+/-0.002) Inch, 3.187 OD(+0.000/-0.004) Inch, 9.875 Length(+/-0.010)

Inch

3)Thread: 3.1875 Inch-16 N-3A Thread Fit to gauge supplied, 0.625 Inch chamfer on

ends before threading, 1.150(+/-0.005) Inch Length No Land

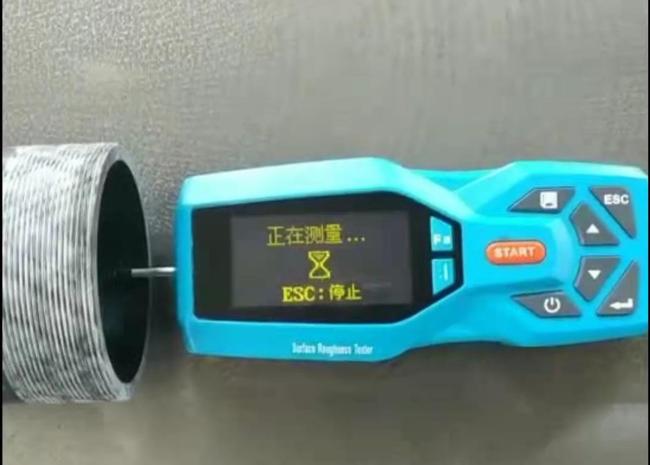

4) Internal Smoothness: RMS16 or better, no pitting

5) Other feature(s): 1) R 0.125 chamfer I.D. one end only

6) Function standard: 1000PSI Max working pressure.-

• Important features:

Internal smoothness RMS16 or better is critical for cylinder industry. High smoothness winding mandrel and precisely calculated winding angle ensures it comes out PASS.

3.1875 Inch-16 N-3A Thread Fit to gauge

How we help you:

We offer OEM filament winding carbon fiber, fiberglass cylinders.

• Let Lijin know about the key features expected from the winding tube. Our engineering team will work out a proper solution and cost indication.

Drawing will then be made for prototype purpose.

• We manage the internal quality control to make sure all the cylinders shipped to you are tested PASS.

• Production orders can usually be completed within 25-45 days after confirmation.
