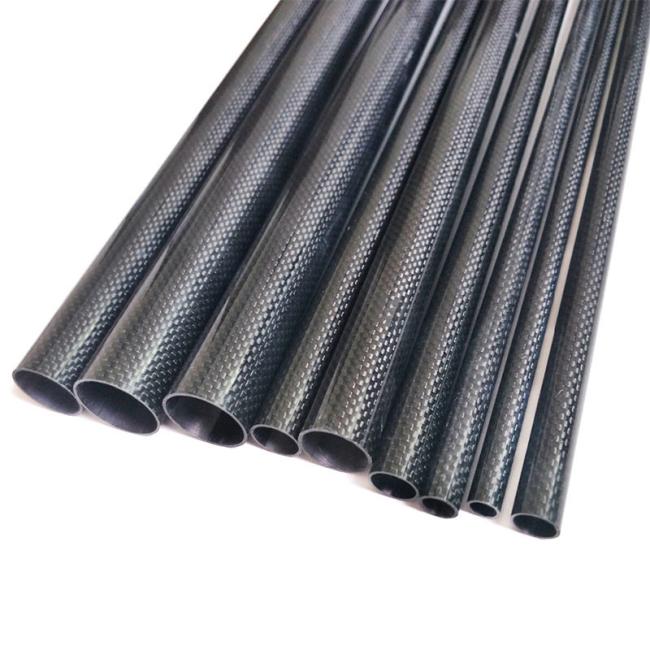

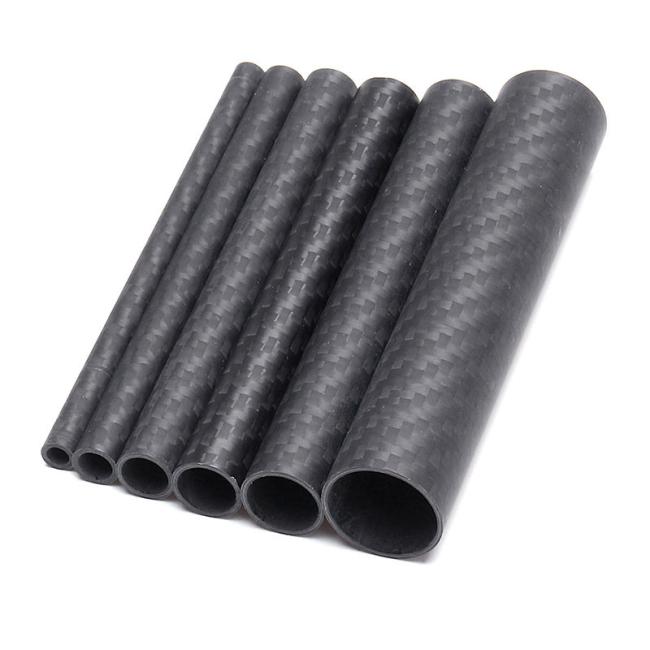

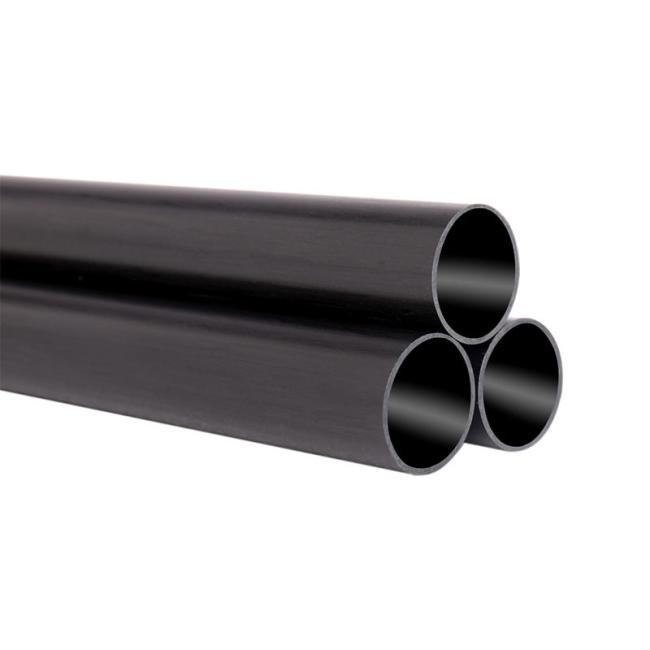

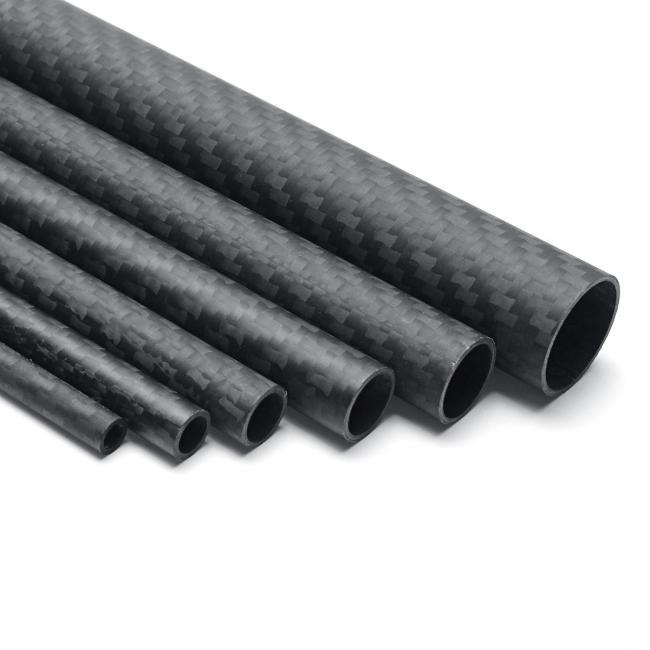

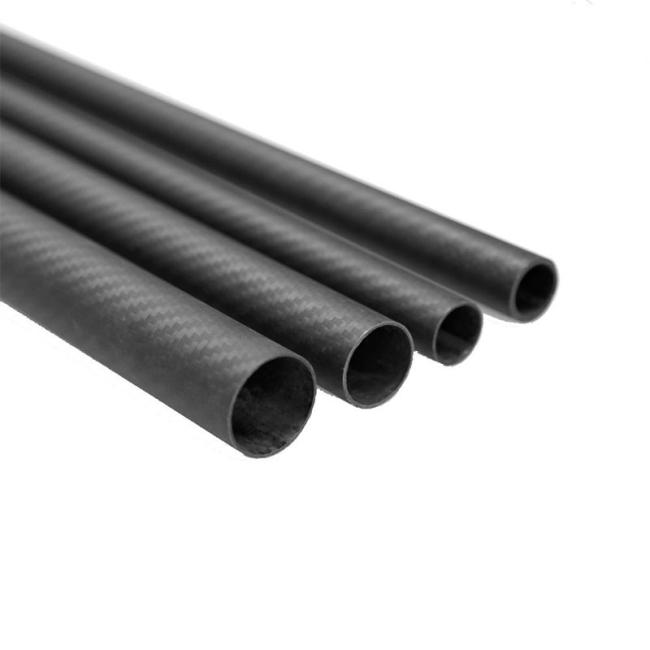

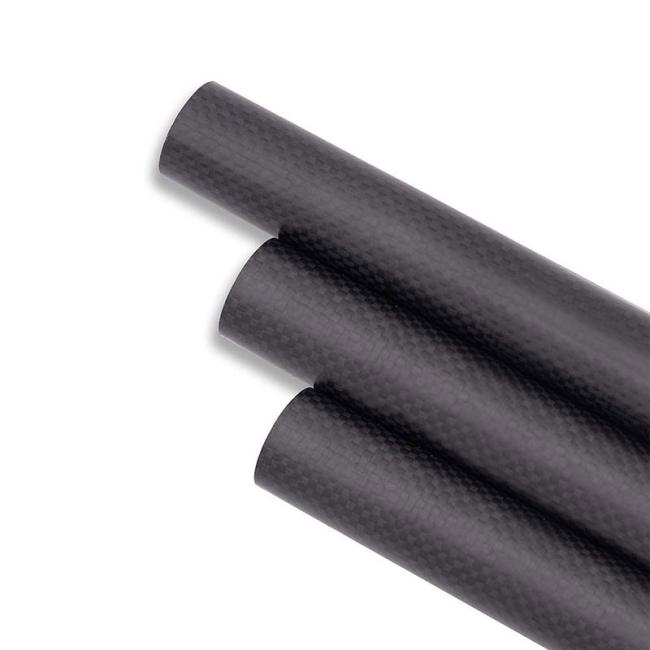

Multi-Size Specifications Carbon Fiber Oval Tube Twill Plain Glossy Matte Carbon Fiber Tube

Roll wrapped prepreg carbon fiber tubes are constructed using multiple wraps of twill and/or unidirectional fabrics. Rolled tubes are ideal for applications that require the highest bending stiffness and lowest weight, such as automation robotics, telescoping poles, idler rollers, and UAV components. Additionally, the longer-length versions of these tubes have options for high and ultra high modulus carbon fiber, as well as choices for outer fabrics, such as colored Kevlar fabrics. The standard finish is cello-wrapped gloss, but a smooth sanded finish is also available.

Material: 100% carbon fiber, Vinyl resin, Epoxy resin.
Surface: Glossy, Matte finished, Painted.

Sizes: Many sizes of Carbon Fiber Tube in several shapes including

» Round

» Square

» Rectangular

» Customize

Roll Wrapped Carbon Fiber Tube Silver Aluminized Twill Weave Gloss Finish 48″ long – This carbon fiber tube uses high strength unidirectional T-700 equivalent carbon fiber core with an epoxy resin system to ensure a strong rigid tube that will meet your needs. In addition to this high strength uni core this tube is finished with a beautiful 2×2 twill weave Silver Aluminized Fiberglass and then given a gloss finish. Due to raw material constraints it is hard to create pipes exactly at a specific measurement unless they are built over-sized and machined down so that is why our pipes may be a few thousandths off from our ideal measurement we are trying to match.

We offer many composite tubing varieties if this tube does not meet your needs. We offer pultruded materials in round solid bar, pipe, and square bar/tubing. Upon special order all of our unique fabrics can be converted into piping.

Roll Wrapping:

The phrase ‘roll wrapped’ refers to the process used to manufacture these tubes. The prepreg carbon fibre is first laid up around a mandrel in multiple layers. Once the reinforcement is in place it is spiral-wrapped with heat-shrink tape before the whole assembly is oven cured.

Features:

• Made of Carbon Fiber material
• Very Strong and Light
• high strength and stiffness
• Very high Rigidity
• very low coefficient of expansion
