Outdoor Decoration Fixture LED Linear Light CREE LED Natural White 5000K 40W 24VDC
Outdoor Decoration Fixture LED Linear Light CREE LED Natural White 5000K 40W 24VDC
About Us
Maysee's LED Wall Washer Light adopts compact & elegant appearance design. Made of extruded anodized aluminum to meet the demand of sufficient heat dissipation and anti-corrosion. To keep the high reliability & long life-span, CREE LEDs are mostly preferred and applied for RGB mixed or mono-color illumination. Especially, the perfect silicon rubber sealing technology has successfully won the good reputation and established the mutual-trust between Maysee and customers.
Maysee is also devoted to developing creative and featured LED Wall Washer besides the popular standard series which is called the customized LED Wall Washer and is designed as per customers' special concerns and requirement.
For the customized lights, Maysee is always insisting on protecting the customer's rights and benefit , we would like to sign up the Non-Disclosure Agreement before project negotiation. Join us, join the success!
Specification
| Model No.: MS-WW-RGB-C | |
| LED Q'ty | 24pcs |
| Light Source | White/RGB/RGBW |
| Rated Power | 40W |
| Dimension | 1000mmX60mmX81mm |
| Material | 316L stainless steel |
| N.W. | 5kg |
| Input Voltage | 24VDC |
| Control Mode | on/off or DMX512 |
| LED Type | CREE |
| Unit LED Power | 3W |
| Lens-angle | 10°/15°/25°/ 45°/60° 20°x50°, Option Opal/Frosted diffuse |
| Life Time | 50,000hrs |
| IP Rating |
IP67
|
The specious design is for the light can be working in the sea! The housing is full 316L stainless steel material,it resistant to corrosion by the sea water. The full stainless steel houing weight reach 5KG each. We use CREE LED Chip,Each fixture pass by IP67 test,aging 48hours,high low voltage test,viabration test before ship.
2D Drawings
Control Mode
DMX Control
RGB light is the DMX512 signal input directly,each light address by DMX controller.
The cable is 4wires, DMX+,DMX-,DC24V+.DC24V-,
Power On/off control
It's a very simple connection between the DC24V switch power supply and LED linear light. It is mainly used for showing the mono-color based on the static & constant working status.

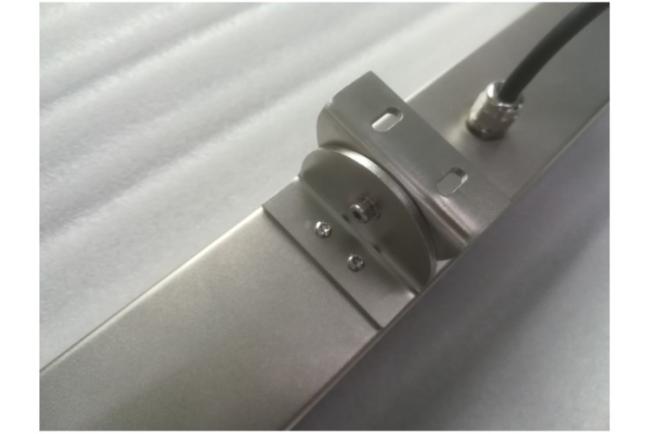

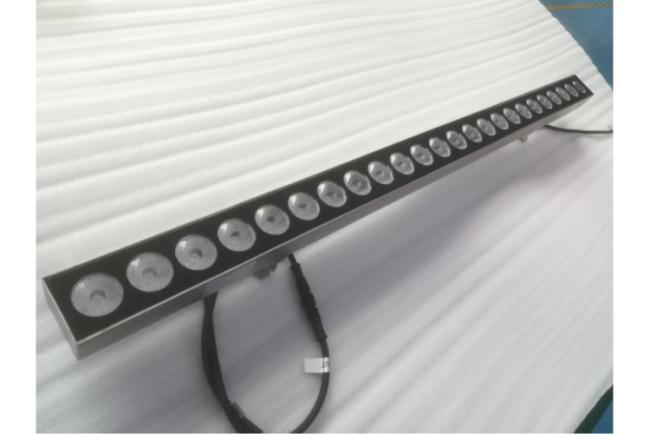

Product photo
Application
1. Museum and art gallery lighting
2. Sculpture and statue illumination
3. Bars, restaurants, clubs, hotels
4.Waterfall, pool,pond,
5. Landscape lighting
6. Road and bridge lighting
