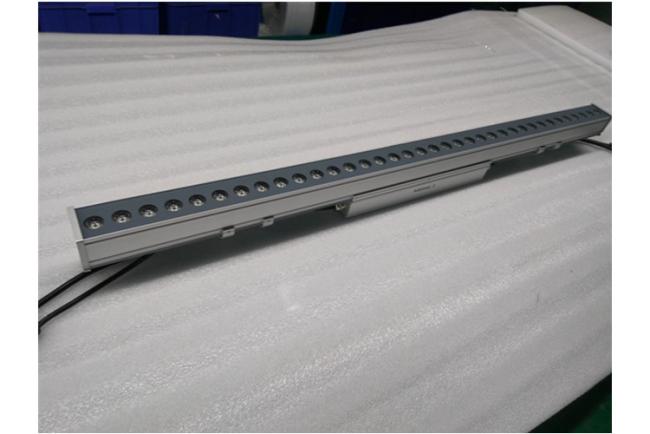

Waterproof CREE RGB LED Wall Washer , Stage Bar Outdoor Wall Wash Lighting
IP65 RGB outdoor LED wall washer lighting stage bar waterproof fixture
Specification
| Model No.: MS-WW-RGB-A(36W) | ||
| Electric Parameter |
Power | 36W |
| LED Drive Current | 350mA | |
| Input Voltage | AC110-220/DC24V | |
| Power Efficiency | >90% | |
| Environment Parameter |
Humidity | 0～85%RH |
| Storage Temp. | -40℃～+80℃ | |
| Operating Temp. | -25℃～ +50℃(-13°F ～ +122°F) | |

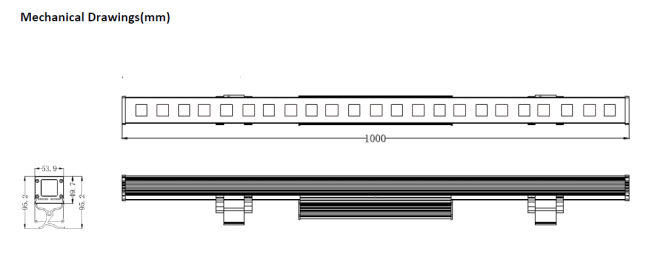

| Physical Parameter | Dimension | 1000mmx54mm(W)x95mm(H) |
| Weight | 3.2kg | |
| Material | aluminum & tempered glass | |
| Housing Color | silver | |
| IP Grade | IP65 | |
| Optical Parameter |
LED Brand | CREE |
| LED Unit Power | 1W | |
| LED Quantity | 36pcs | |
| Light Source | 12R12G12B/36R/36G/36B/36W/36Y | |
| Lens Angle | 10°/15°/25°/ 45°/ 15°x50° | |
| White Color Temperature | Warm White(2700～3500K); Pure White(3500～5500K); Cool White(>5500K) |
|
| LED Wave Length | Red: 620 - 630nm; Green:520 - 525nm; Blue:465 - 470nm; Amber:590 - 595nm |
|
| Life Time | 50,000hrs | |
| Controller | DMX512 / On-Off | |
Features
1. Lamp shells of high-quality aluminum, anodized surface. Elegant and delicate light body,excellent heat dissipation.
3.High intensity,corrosion resistance aviation aluminium,light source close to shell,unique outline,good cooling.
4. 110V/220V high-power input
5.Adopt sponge structure patent waterproof technology,break through traditional sealant 6.Connect to DMX controller to realize jump change,frequent change,chase,smooth,scanning change.
7.Or use USB to connect to computer to realize sychronism change.
8.No need to set IP ,write IP at the same time when connected to led lighting.
9.It changes with DMX controller when DMX signal is available,it changes with the first light when DMX signal is not available.
Application
1.Tunnel,Subway,Underground
2. Gymnasium,Sports Stadium Lighting
3. Building, Billboard Lighting
4. Garage Lighting,Gas Station led linear light
5. Factory Lighting,Workshop
6. Signboard, building,square decoration and lighting
7. Highway Lighting,Station,Dock Lighting
