RGB IP65 36W LED Wall Washer Lighting Fixture Outdoor With DMX Driver
RGB rotaing color LED wall washer light lighting fixture outdoor with DMX driver
Description
1. Design: Compact, elegant and humanized design, make the light itself a work of art combination with the environment. Sufficient heat dissipation, safe and good protection.
2. Housing: 6030 aluminum alloy with extrusion technology and oxidation treatment, durable and anti-corrosion.
3. Glass: High transparency tempered glass, low light loss, high brightness.
4. LED: imported LED, high stability, long life-span.
5. Effect: There are R,G,B,W,Y LED for option, reach the mixed light effect with short distance.
6. Lens: Multi-angle and spread-light lens design, not only meet all kinds of lighting design requirements, but also maximizing the light utilization rate.
7. Control: DMX512 control/ On-Off control.
8. Wiring & Installation: Simple & neat wiring, make the installation and maintenance more fast and easy.
9. Level: IP65. Silicon rubber sealing technology securing perfect waterproof performance.
Advanges
1. Exquisite extruded anodized aluminum housing
2. Various kinds of beam-angle for option
3. Up to 50,000hrs long life-span
4.Multi-positional & constant torque mounting
5.Light Source: RGB multi-color & mono-color
6.Control Mode: DMX/on-off/wifi
7.IP65
Specification
| Model No.: MS-WW-RGB-A(36W) | ||
| Electric Parameter |
Power | 36W |
| LED Drive Current | 350mA | |
| Input Voltage | AC110-220/DC24V | |
| Power Efficiency | >90% | |
| Environment Parameter |
Humidity | 0～85%RH |
| Storage Temp. | -40℃～+80℃ | |
| Operating Temp. | -25℃～ +50℃(-13°F ～ +122°F) | |
| Physical Parameter | Dimension | 1000mmx54mm(W)x95mm(H) |
| Weight | 3.2kg | |
| Material | aluminum & tempered glass | |
| Housing Color | silver | |
| IP Grade | IP65 | |
| Optical Parameter |
LED Brand | CREE |
| LED Unit Power | 1W | |
| LED Quantity | 36pcs | |
| Light Source | 12R12G12B/36R/36G/36B/36W/36Y | |
| Lens Angle | 10°/15°/25°/ 45°/ 15°x50° | |
| White Color Temperature | Warm White(2700～3500K); Pure White(3500～5500K); Cool White(>5500K) |
|
| LED Wave Length | Red: 620 - 630nm; Green:520 - 525nm; Blue:465 - 470nm; Amber:590 - 595nm |
|
| Life Time | 50,000hrs | |
| Controller | DMX512 / On-Off | |
Application
Waterfall, bulding outline, bridge, river,museum, etc.

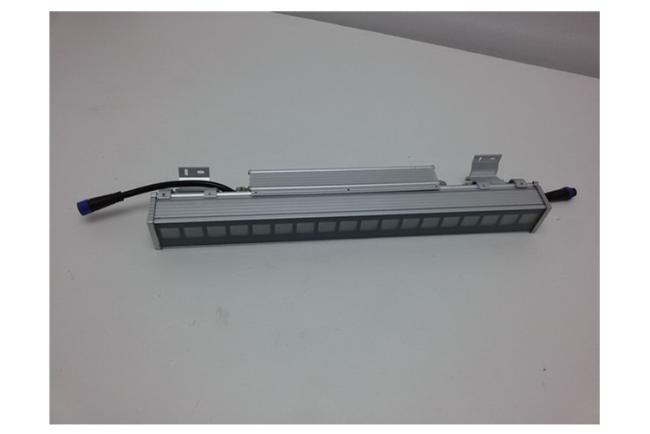

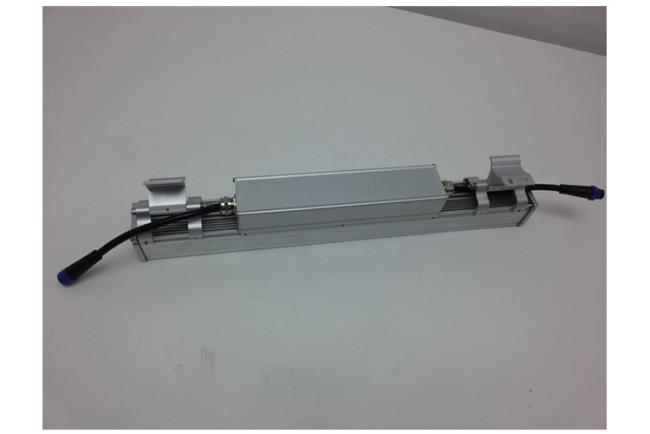

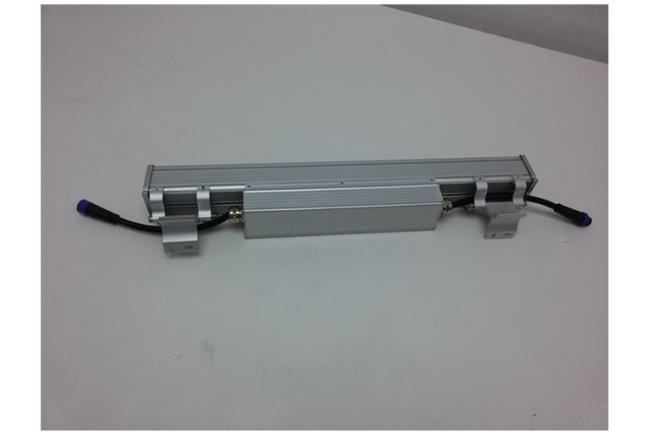

Pictures
