RGB 3 in1 1000mm Ra80 Linear LED Wall Washer 1000mmLx36mmWx61mmH
1000mm length RGB 3in1 LED chip LED linear light outdoor lighting IP66 waterproof rating
Specification
| Model No. | MS-WW-RGB-L4 |
| Rated Power | 12W |
| Dimension | 1000mm(L)x36mm(W)x61mm(H) |
| Net Weight | 1.5kg |
| Q'ty of LEDs | 48pcs |
| Pixels per Bar | 8 pixels |
| DMX Channel per Bar | 8x3-CH |
| Cable outlet | one in,one out |
| CRI | Ra>80 |
| Input Voltage | 24VDC |
| LED Brand | Nichia/CREE/EPISTAR |
| Lens | 15°/25°/30°/45°/60°/80°/100°120° |
| Light Color | SMD (3-in-1) or mono-color |
| Material | L6063Aviation Aluminum/Frosted tempered glass |
| Typical Light Efficiency | >100lm/W(6500K),>55lm/W(RGB) |
| Operating Humidity | 0-99%RH |
| Operation Temperature | -25℃-45℃ |
| Life Time | 50,000 hrs |
| IP Rating | IP66 |
| Control Mode | DMX512 for RGB version/on-off switch for mono version |
| Mounting | surface-mounting |
| Body color | Grey |
Features
1. 48 x 3-in-1 RGB or Monochromatic LEDs per 1000mm
2. Architectural grade anodized mounting profile, no visible fasteners
3. Modules + Aluminum Mounting Profile + Diffuser/Cover + Power-Data Equipment
4. Fully sealed for use in dry, damp or wet locations
5. 12W per meter
6. Frame per second: >100 FPS at DMX512 control
7. Dimmable range: 0~255 steps at DMX512 dimming control
8. Built-in constanct-current circuit with PWM signal>400Hz
1.Any inquiries will be replied within 2 hours on our work day
2.Provide sample for testing
3.OEM/ODM available:
1) Silk print logo on the light
2) Customized color box by 500pcs
3) Any your idea on lighting we can help you to design and put it into production
4.High quality, reasonable & competitive price, fast lead time
5.After-sale service
1) All products will have been strictly quality checked in factory before packing
2) All products will be well packed before shipping
3) If any quality problem during warranty ,free repair or replacement
6.Fast delivery
Sample order will shipping 1-3 days, bulk order for 5-18 days
7.Payment
You can pay for the order via: T/T, Western Union, Paypal & Money gram
8.Shipping
We have strong cooperation with DHL/TNT/UPS/FEDEX,EMS
Bulk order shipping by air or by sea

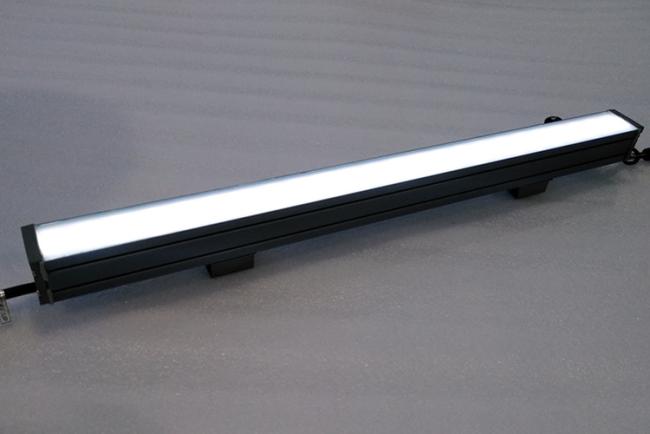

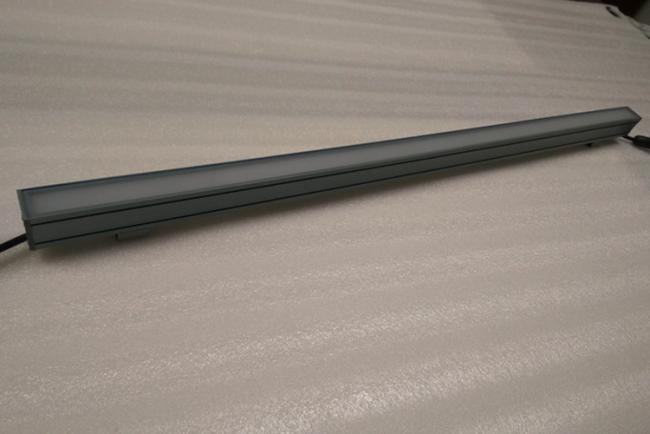

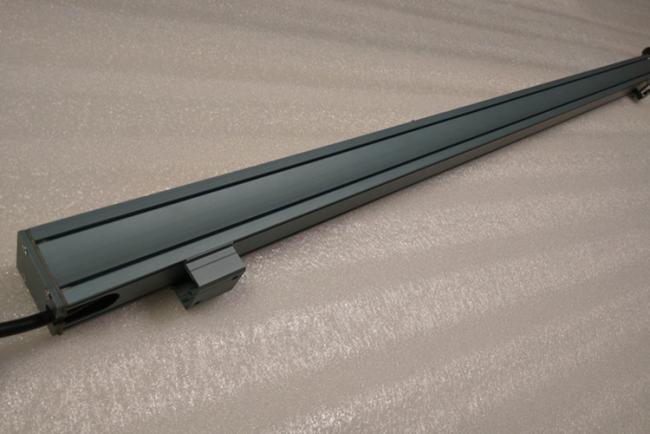

Pictures
