IP66 led inground light , led outdoor wall wash lighting Anodized aluminum
DC24V IP66 outdoor underground light led inground light wall washer lighting
Specification
| Model No.: MS-WW-RGB-E(48W) | ||
| Electric Parameter |
Power | 48W |
| LED Drive Current | 350mA | |
| Input Voltage | DC24V | |
| Power Efficiency | >90% | |
| Environment Parameter |
Humidity | 0～85%RH |
| Storage Temp. | -40℃～+80℃ | |
| Operating Temp. | -25℃～ +50℃(-13°F ～ +122°F) | |
| Physical Parameter | Dimension | 1060mmx85mm(W)x101mm(H) |
| Weight | 10kg | |
| Material | aluminum & tempered glass | |
| Housing Color | Gray | |
| IP Grade | IP66 | |
| Optical Parameter |
LED Brand | CREE |
| LED Unit Power | 3W | |
| LED Quantity | 36pcs | |
| Light Source | 12R12G12B/36R/36G/36B/36W/36Y | |
| Lens Angle | 10°/15°/25°/ 45°/ 15°x50° | |
| White Color Temperature | Warm White(2700～3500K); Pure White(3500～5500K); Cool White(>5500K) |
|
| LED Wave Length | Red: 620 - 630nm; Green:520 - 525nm; Blue:465 - 470nm; Amber:590 - 595nm |
|
| Life Time | 50,000hrs | |
| Controller | DMX512 / On-Off | |
Description
MS-WW-RGB-E high power led wall washer fixtures,48w, RGB color, specious design aluminum embedded parts for the installation, it make sure the lgith easy install and have the best performance.
All of the material used are very good brand, LEDLink lens, Cree led, Meanwell power supply and tempered glass to go for high performance and reliability.
Maysee provides 3-year warranty and the best competitive technical solution accord with any special requirement from customers.
Features
1. Aluminum bracket for installation inground
2. 48w RGB high power led wall washer fixtures
3. Easy for cable connection and installation layout
4. IP66
Application
1. Architectural lighting
2. Downlighting or uplighting for wall wash
3. Landscape lighting
4. Road and bridge lighting
5. Museum and gallery lighting
Dimension

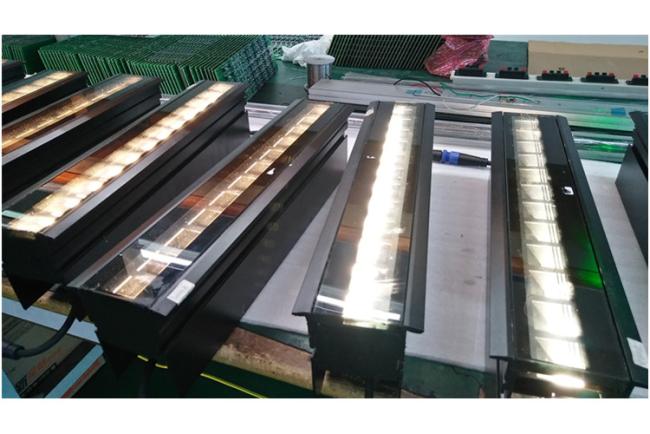

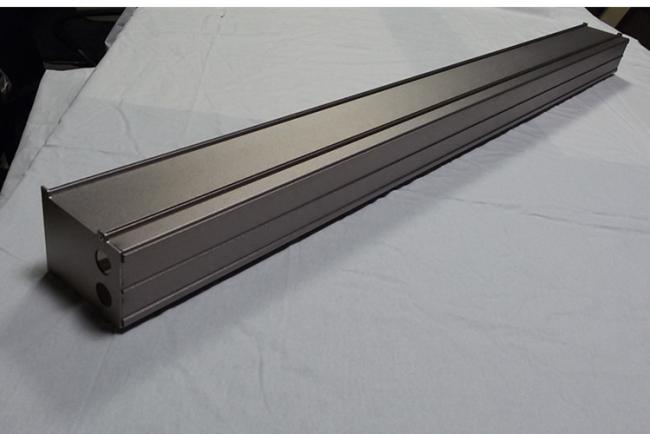

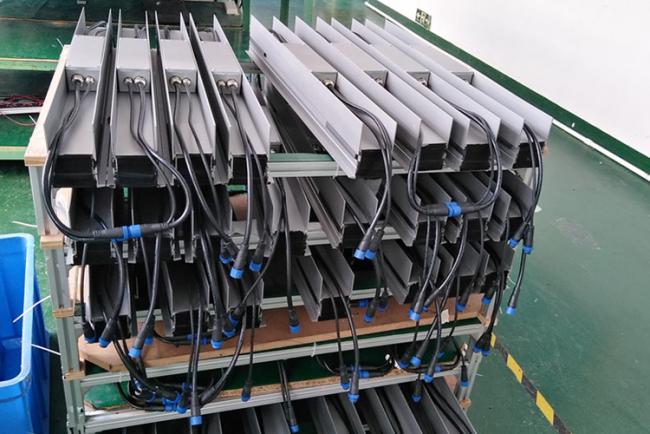

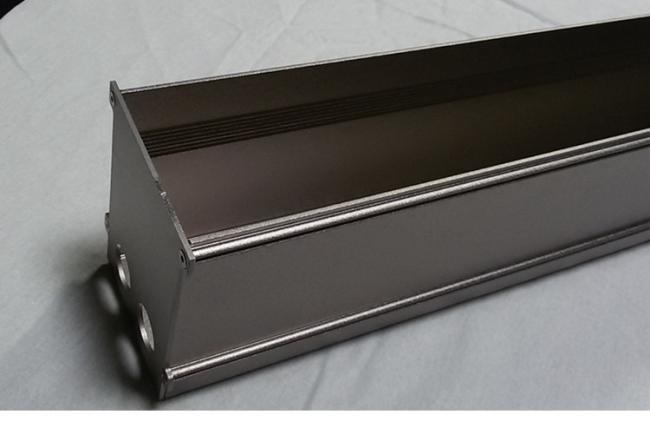

Pictures
