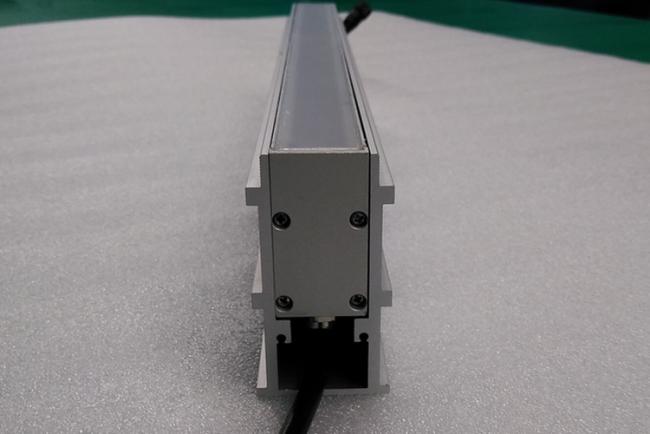

Inground LED Linear Light With Aluminum Mounting Profile outdoor waterproof IP67
Inground LED Linear Light With Aluminum Mounting Profile outdoor waterproof IP67
Features
1. Specious design for outdoor inground led linear wall washer light
2 Modules + Aluminum Mounting Profile
3. Fully sealed for use in dry, damp or wet locations
4. 96 x 3-in-1 RGB or Monochromatic LEDs per 1000mm
5. Architectural grade anodized mounting profile, no visible fasteners
6. Frame per second: >100 FPS at DMX512 control
7. Dimmable range: 0~255 steps at DMX512 dimming control
8. Built-in constanct-current circuit with PWM signal>400Hz
9. IP67
Dimension of light
Dimensiion of mounting profile
Specification
| Model No. | MS-WW-RGB-L6 |
| Rated Power | 12W |
| Length | 1000mm |
| Net Weight | 3.2kg(Including mounting profile) |
| Q'ty of LEDs | 96pcs |
| Pixels per Bar | 8 pixels |
| DMX Channel per Bar | 8x3-CH |
| Pixel Pitch | 12.5mm |
| WidthxDepth | 25mmx46mm |
| Input Voltage | 24-48VDC |
| LED Brand | CREE |
| Lens | 120 |
| Light Color | SMD (3-in-1) or mono-color |
| Material | anodized aluminum housing & Acrylic diffuser |
| Bar Intensity | 120Lm/W (White 6500k) |
| Operating Humidity | 0-99%RH |
| Operation Temperature | -20℃-50℃ |
| Life Time | 50,000 hrs |
| IP Rating | IP67 |
| Control Mode | DMX512 for RGB version/on-off switch for mono version |
| Mounting | surface-mounting |
| Warranty | 3-year |
Installation and connection
Application:
Outdoor inground led linear bar wall washer,
About Us
Maysee's LED Wall Washer Light adopts compact & elegant appearance design. Made of extruded anodized aluminum to meet the demand of sufficient heat dissipation and anti-corrosion. To keep the high reliability & long life-span, CREE LEDs are mostly preferred and applied for RGB mixed or mono-color illumination. Especially, the perfect silicon rubber sealing technology has successfully won the good reputation and established the mutual-trust between Maysee and customers.
Maysee is also devoted to developing creative and featured LED Wall Washer besides the popular standard series which is called the customized LED Wall Washer and is designed as per customers' special concerns and requirement.
For the customized lights, Maysee is always insisting on protecting the customer's rights and benefit , we would like to sign up the Non-Disclosure Agreement before project negotiation.
