24w Underwater LED Linear Strip Light 316 Stainless Steel Outdoor Decoration Lamp
Underwater LED linear light 24w LED strip light 316 stainless steel material outdoor decoration lamp
This is specious design for LED linear light work underwater,it use as waterwall,swimming pool light,led foutain decoration light,LED pond lighting.This LED linear light reach IP68 waterproof rating. The light sealed by the 316 stainless steel cover at the both side,it's never rust.
Application
1.Waterfall, pool,pond,
2. Landscape lighting
3. Road and bridge lighting
4. Museum and art gallery lighting
5. Sculpture and statue illumination
6. Bars, restaurants, clubs, hotels
Specification
| Model No.: MS-WW-RGB-D | |
| LED Q'ty | 24pcs/48pcs/96pcs |
| Light Source | Single color or RGB color |
| Rated Power | 12W/18W/24W |
| Dimension | Dia44x1000mm |
| Material | aluminum & 316 stainless steel |
| N.W. | 2.1kg |
| Input Voltage | 24VDC |
| Control Mode | on/off or DMX512 |
| LED Type | CREE |
| Unit LED Power | 3W |
| Lens-angle | 10°/15°/25°/ 45°/ 15°x50°, Option Opal/Frosted diffuse |
| Life Time | 50,000hrs |
| IP Rating |
IP68
|
2D Drawings
Control Mode
DMX Control
RGB light is the DMX512 signal input directly,each light address by DMX controller.
The cable is 4wires, DMX+,DMX-,DC24V+.DC24V-,
Power On/off control
It's a very simple connection between the DC24V switch power supply and LED linear light. It is mainly used for showing the mono-color based on the static & constant working status.

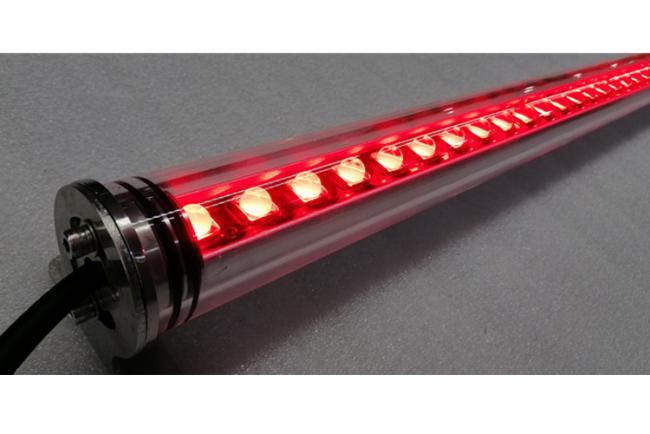

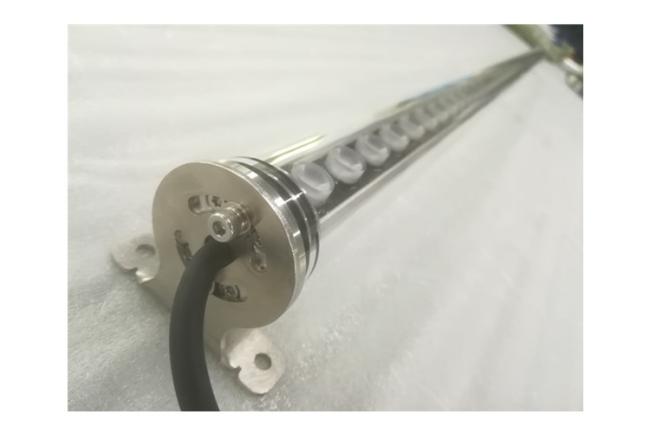

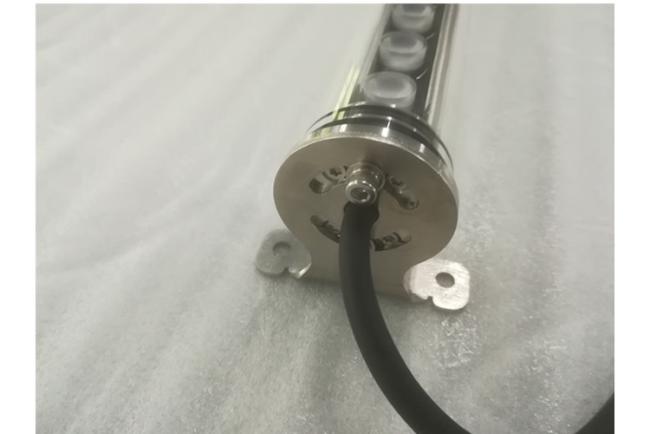

Product photo
