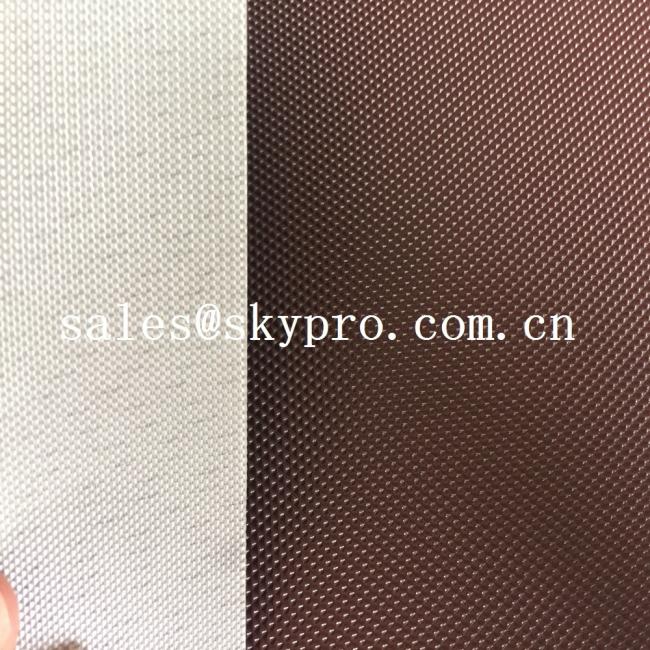

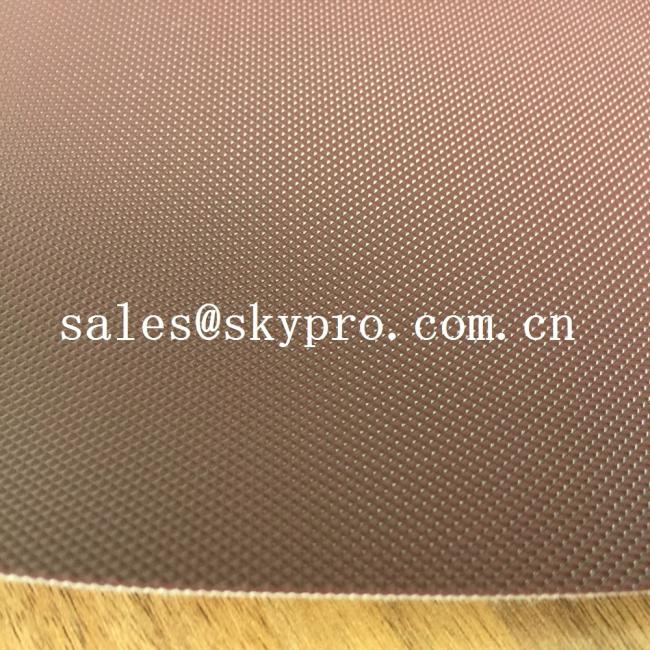

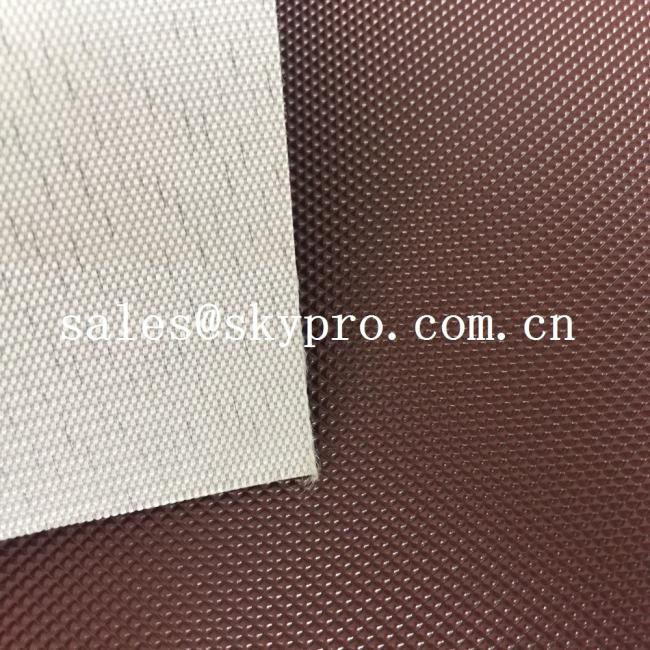

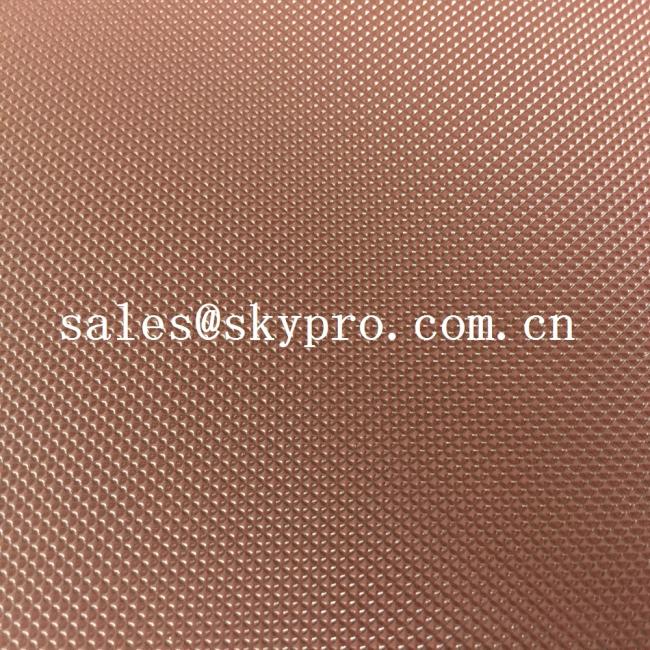

Black Diamond Bottom PVC Conveyor Belt Fabric Food Grade Treadmill Walking Belt
PVC belt conveyor fabric for food grade with black diamond bottom treadmill walking belt
specifications:
| Belt Dimension | |||
| Colour | Natural/transp. | ||
| Total Thickness(Top/Bottom) | 3.0mm | ||
| Cover Thickness(Top/Bottom) | 1.0mm | ||
| Weight | 3.3kg/m2 | ||
| Technical Data | |||
| Tensile Strength | 160N/mm | ||
| Stretching Strength,Effective Pull at 1% elongation | 10N/mm | ||
| Cover Hardness(ShoreA) | 75ShoreA | ||
| Min. Diameter | 40mm | ||
| Temperature Range | -10/+80℃ | ||
| Max. Production Width | 2.6m | ||
| Application | |||
| Industry | All kind of light duty application | ||
Features:
lLow Noise, Flame Retardant
lHigh Abrasion Resistance
lPlasticizer Free
lExcellent Matching Printing
Packing and transportation:
| Packing way | Packed in roll or flat sheet,50-100kg/roll or according to specific requests from clients |
| Packing material | Inner PE film+ outer Woven plastic bags as standard, palletized for extra reinforcement if necessary |
| Shipping marks | Neutral packing with printed marks. |
| Delivery time | 15 days since receipt of PO and down payment |
| Freight | Sea(FCL & LCL) or air freight |
| Special size | We provide cutting services for special sizes |
| Lamination | We provides extra lamination with PSA, textiles or other materials. |
FAQ(Frequently Asked Questions)
1. What is the capability of your company ?
Skypro is a professional manufacturer of rubber sheet for more than two decades.
Top 10 biggest rubber factory in China.
2.What is production capability each year?
We produce more than 18000 tons of rubber sheet products each year.
3.How can I get some samples?
We are pleased to offer you free samples. New clients are expected to pay for the delivery cost, this charge will be deducted from the payment for formal order.
