3 Ports gigabit Industrial Ethernet Switch 2 10M / 100M / 1000M RJ45 ports

3 Ports gigabit Industrial Ethernet Switch 2 10M / 100M / 1000M RJ45 ports

OFS-IGSF1T2-20

OFS-IGWSF1T2A/B-20

OFS-IGSF1T2

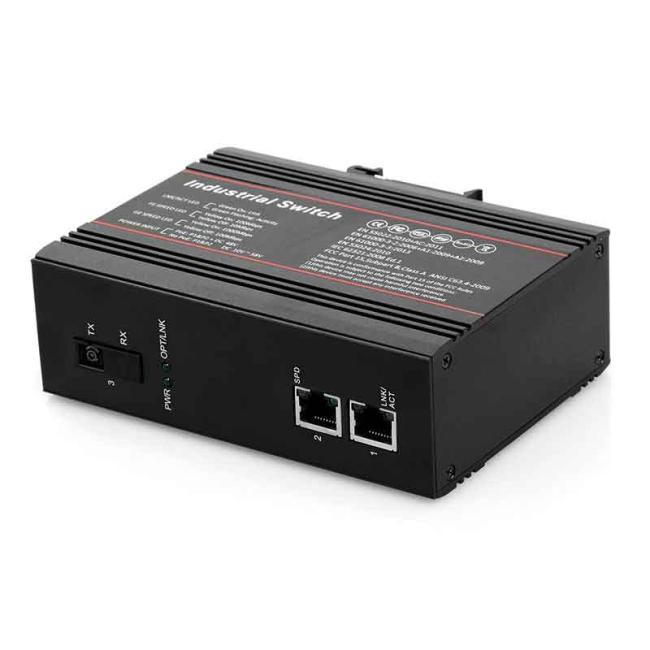

Product description

The product is an unmanaged industrial level Gigabit Ethernet switch, with 1 Gigabit Fiber port, 2 10/100/1000Base-T adaptive Ethernet interface RJ45. It help users to realize the Ethernet data exchange, convergence and long-distance optical transmission function. The equipment has the advantages of no fan, low power consumption, easy to use, small size, simple maintenance and so on. Product design in line with the Ethernet standard, add lightning protection, anti-static protection measures, -40 DEG C ~ +85 wide range of working temperature, stable and reliable performance. The device can be widely used in intelligent transportation, telecommunications, security, finance and securities, customs, maritime, electric power, water conservancy and oil fields and other broadband data transmission.

Key Features

Input voltage: DC10~58V (dual power redundancy backup)

Working temperature: -40 ℃~ + 85 ℃

Housing: IP40 protection grade, DIN rail type, metal aluminum, no fan design

Inspection report: through the Ministry of public security inspection report, CCC/FCC/CE/ROHS

Specifications

PortS Quantity: 3

Fiber Ports: one 1000BaseFX ports (SC/ST/FC/LC connector, optional)

10/100/1000M RJ45:two 10/100/1000BASE-T RJ45

Transmission mode: full duplex mode

standard:IEEE 802.3,IEEE 802.3u ,IEEE 802.3I,IEEE 802.3z,IEEE 802.3at

Application level:L2

backplane bandwidth:10Gbps

Packet forwarding rate:7.44Mpps

MAC: 8K

Buffer:1M

delay time:<4μs

Exchange: Store - forward

LED

Power

TX,FX(Link/ACT)

Housing: metal material

Cooling: natural cooling, no fan

Dimensions: 143 x 104 48mm x (wide x deep x high)

weight: 0.85Kg

Installation mode: DIN card rail type

Operating temperature: -40 ℃ ~ +85℃

Storage temperature: -40 ℃ ~ +85℃

Relative humidity: 5~95% (no frost)

Transmission distance twisted pair: 100m (using CAT5e, CAT6 network cable))

transmission distance

Twisted pair: 100m (CAT5e, CAT6)

Multi-mode: 550m

Single-mode: 20, 40,60, 80,100,120Km,optional

MTBF:100,000 hour

Power

Input voltage: DC10~58V (dual power redundancy backup)

Access terminal: Phoenix terminal

Power (full load) <4W

Warranty period: 5 years

Certification: Ministry of public security inspection report,CCC , CE,FCC, RoHS

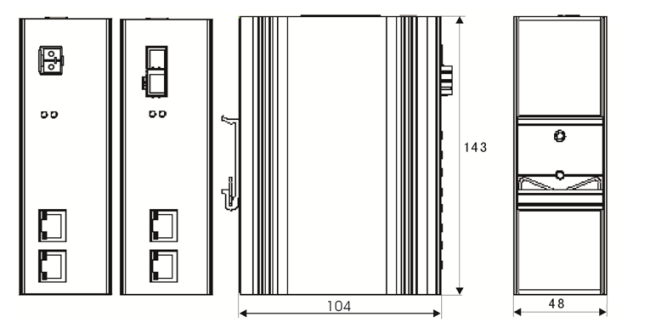

Product front panel

Ordering Information
