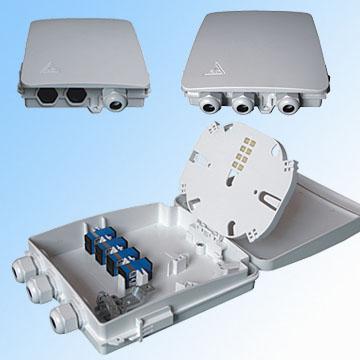

Indoor 8 Cores Ftth Terminal Box Fiber Optic Wall Mounting With Plc Splitter / Pigtail And Adapters
FTTH terminal box wall-mounting indoor / outdoor 8 cores with PLC splitter / pigtail and adapters
OFS-FTH-308
Introduction
OFS-FTH-308-1 is a new generation product for fiber to the home. The box is light and compact. It is especially for connecting and protection for fiber cable of FTTH.
Features
It is suitable for wall-mounting installation;
It is IP65;
It is suitable for SC adapters installation and usage;
It is easy to access the box by sliding shackle;
It is applicable for outdoor cables or indoor soft cables;
Size: 210×175×50mm;
The maximum capacity is 8 pieces SC adapters installation and usage;
The Max capacity is 12 fibers for fusion of direct fusion;
It is allowed to preinstall PLC optical splitter with the Max optical distribution ratios 1:8. It applies to various cables and fast connector;
Specifications
| Model | Capacity | Dimension | Carton Dimension | G.W/CTN | QTY/CTN |
| OFS-FTH-308 | 8 fibers | 210×175×50mm | 57*47*29CM | 14.8KG | 30PCS |

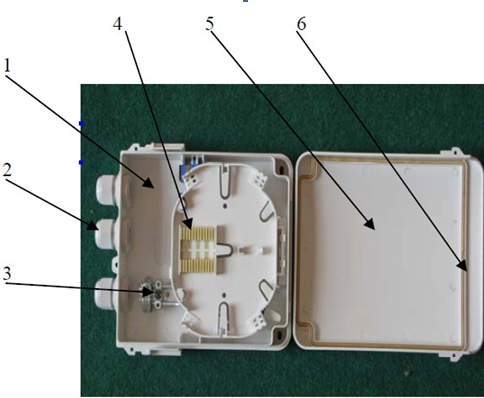

Internal instruction
1. base
2. cable gland
3. fixing cable parts
4. splice chip
5. cover
6. sealing ring

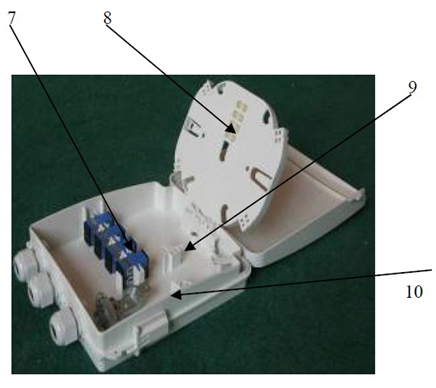

7. for adapter fixing
8.splice tray
9. for coiling cable
10. sliding shackle
