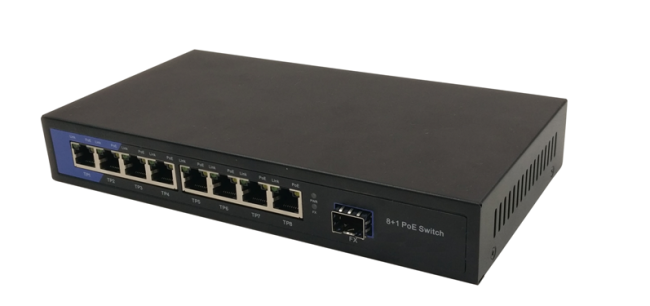

48VDC PoE Network Switch 1000FX SFP Or SC Port And 8 10 / 100 / 1000M RJ45 Ports Each TX Port 15.4W
Power over Ethernet switch 1000FX SFP or SC port and 8 10 / 100 / 1000M RJ45 ports each TX port 15.4W
OFS-PE-GSF1T8
OFS-PE-GSF1T8 series is a Layer 2 + Optical Ethernet switch with 1000Mbps Optical fiber ports and 8*10/100/1000Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio. OFS-PE-GSF1T8’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.
The OFS-PE-GSF1T8 series switches enable centralization of the power supply and provide up to 15.4 (30) watts of power per port. The switches can be used to power IEEE 802.3af/at compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.
Key Features
* 8x10/100/1000BaseTX Ports + 1000BaseFX LC/SC/ST/FC(Optional) Optical fiber ports
* Backplane broadband : 19G
* 8K address table for auto-learned unicast addresses
* Flexible load distribution control and fail-over function
Performance
* IEEE Protocol:
o 802.3 10Base-T Ethernet
o 802.3u 100Base-TX and 100Base-FX fast Ethernet
o 802.3x Flow Control and Back Pressure
o 802.1p Class of Service
o 802.1x
o IEEE802.3af
* Non-blocking store-and-forward shared-memory switch architecture
* MAC address:8K
Port Configuration
* RJ45 Port: Auto-negotiation, 10/100/1000Base-T, Full/Half Duplex, Auto-MDI/MDIX, on copper cable of cat5# with operation distance of less than 100 meters.
* POE power supply port:TP1~TP8,power provided over pairs “+”4/5 and “-”7/8
* 1000Base-FX Optical Port: LC/SC/ST/FC Optical fiber ports
* Single-mode:20, 40, 60, 80,100, 120Km,optional, depend on your SFP module
* Multi-mode: 2, 5Km ,optional, depend on your SFP module
* Wavelength: 850nm, 1310 nm, 1550nm
* Indicator: TP1-8 link/ACT, TP1-8 PoE,Power, FX
Power Input options
* Input Voltage: 48VDC, external power
* Total power:5w+8*15.4w,
* Overload Current Protection
* Support dual power backup
Environmental Limits
* -10°C ~+ 50°C( Wide Temperature)
* Storage Temperature:-20°C～+ 70°C
* Humidity: 5%～95%
Order Information
| Model | Product description |
| OFS-PE-GSF1T8 | 10/100/1000M Ethernet Dual Fiber Switch with 8 UTP ports and 1000M SFP fiber port,TP1~8 PsE. |
| OFS-PE-GSF1T8-2 | 10/100/1000M Ethernet Dual Fiber Switch with8 UTP ports and 1000M multimode fiber port, 850 or 1310nm of optical wavelength, the max distance of fiber up to 2km.TP1~8 PsE. |
| OFS-PE-GSF1T8-20 | 10/100/1000M Ethernet Dual Fiber Switch with 8 UTP ports and 1000M singlemode fiber port, 1310 or 1550nm of optical wavelength, the max distance of fiber up to 20～100km.TP1~8 PsE. |
| OFS-PE-GWSF1T8A-20 | 10/100/1000M Ethernet Single Fiber Switch with 8 UTP ports and 1000M singlemode fiber port, 1310nm of optical wavelength, the max distance of fiber up to 20～100km.TP1~8 PsE. |
| OFS-PE-GWSF1T8B-20 | 10/100/1000M Ethernet Single Fiber Switch with 8 UTP ports and 1000M singlemode fiber port, 1550nm of optical wavelength, the max distance of fiber up to 20～100km.TP1~8 PsE. |
| OFS-PE-GSF1T8-XX | 10/100/1000M Ethernet Single Fiber Switch with 8 UTP ports and 1000M singlemode fiber port, 1310/1550nm of optical wavelength,max optical fiber distance from 20 to 120 km, xx for the amount of distance.TP1~8 PsE. |
