Ethernet Fiber Optic Switch 2*100M Fiber Ports And 3*10/100M RJ45 Ports SC Or FC 100Mbps
Ethernet switch 2 * 100M fiber ports and 3 * 10 / 100M RJ45 ports SC or FC 100Mbps full duplex

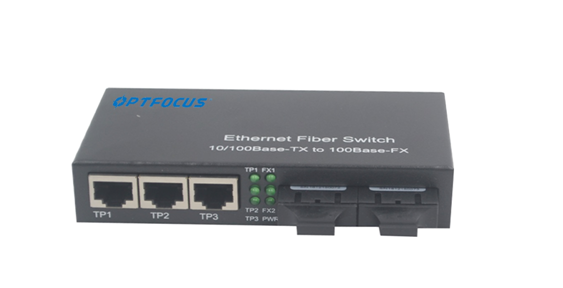

OFS-SF2T3
OFS-SF2T3 Series provides two 100Moptical fiber ports and three 10/100MUTP ports. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. it is applicable to use in small patterns of Optical Fiber Ethernet.
Main features
◆With two fiber and three UTP ports, OFS-SF2T3 can convert Optical－Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX).
◆Auto negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half Duplex.
◆Support Flow control and Broadcast storm protection
◆Supporting the max 1536 bytes frame
◆Internal Circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
Technical Specifications
◆Operating standards: IEEE802.3u 100Base-TX and 100Base-FX
◆Connector:
UTP: RJ-45,10/100Mbps;
Fiber: SC/FC,100Mbps (Full Duplex)
◆Cable
UTP cable: Cat. 5 (the max distance up to 100m)
Fiber (multimode): 50/125, 62.5/125μm(the max distance up to 2km)
Fiber (singlemode): 8/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
◆Flow control
Full Duplex: IEEE802.3x flow control
Half Duplex: bake pressure flow control
◆LED Light: PWR, FX 1Link/Act, FX 2Link/Act,TP1 Link/Act, TP2 Link/Act,TP3 Link/Act
◆Power supply: AC100 ～ 240V, DC5V 1A;
◆Environment temperature:-10 ～ +50℃
◆Storage temperature:::-20 ～ +70℃
◆Humidity::5% ～ 90%
◆Dimensions:27 × 70 × 123mm
Fiber Optic Information
| Type | connector | Fiber type | Max distance | Wavelength | TX power | Sensitivity | Link Budget |
| OFS-SF2T3-2 | SC | multimode | 2km | 850 or 1310nm | -20～-12dBm | -30dBm | 10dBm |
| OFS-SF2T3-20 | SC | singlemode | 20km | 1310nm | -14～-8dBm | -32dBm | 18dBm |
Fiber Optic Information
| Model | Product description |
| OFS-SF2T3-X | 10/100MEthernet Dual Fiber Switch with 3 UTP ports and 2 multimode fiber port, 850 or 1310nm of optical wavelength, the max distance of fiber up to2km. |
| OFS-SF2T3-XX | 10/100MEthernet Dual Fiber Switch with 3 UTP ports and 2 singlemode fiber port, 1310 or 1550nm of optical wavelength, the max distance of fiber up to 20～100km. |
| OFS-SF2T3WS01/02-XX | 10/100MEthernet Single Fiber Switch with 3 UTP ports and 2 singlemode fiber port, 1310/1550nm of optical wavelength, the max distance of fiber up to 20～100km. |
