Single Mode Gigabit Media Converter 2.5W Power Consumption With 1 Years Warranty
100 Mbps mini Fiber to ethernet media converter with dual fiber single mode SC 20km
Product Description
Technical Specifications
| Technical items | Description | |
| Product Name | 10/100M Media Converter | |
| Product Model | OFS-DSS-20 | |
| Connector | Dual Fiber: 1* 100Mbps,SC/ST/FC Optional | |
| RJ45: 1*10/100Mbps,Auto MDI/MDI-X | ||
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) | |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | ||
| Fiber Media | Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km) | |
| Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km) | ||
| Forwarding Mode | Store-and-Forward | |
| Forwarding Rate: | 148800pps/port | |
| Operating standard | EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x | |
| Power (external) | Input:AC 100~250VOutput:DC 5V 1A ,(default). | |
| or Input:DC:-36V~-72V；Output:DC 5V 1A .(Optional) | ||
| Power consumption | 2.5W | |
| LED | Power, FX 100,Link/Act, TX 100,FDX, Link/Act. | |
| Working Environment | Working temperature: -10～55℃ ; | |
| Storage temperature: -20～75℃ | ||
| Relative Humidity: 5%~95 %( no condensation) | ||
| Packing List | 1× Media Converter | |
| 1×User Manual/Certificate of quality/Warranty card | ||

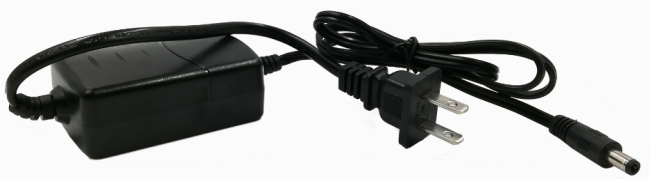

| 1×power adapter | ||
| MTBF | 100,000 hours | |
| Weight & Size | Product Weight: 0.5 KG | |
| Packing weight: 1.1 KG | ||

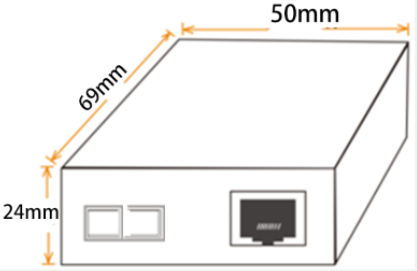

| Product size (L×W×H): 69*50*24mm | ||

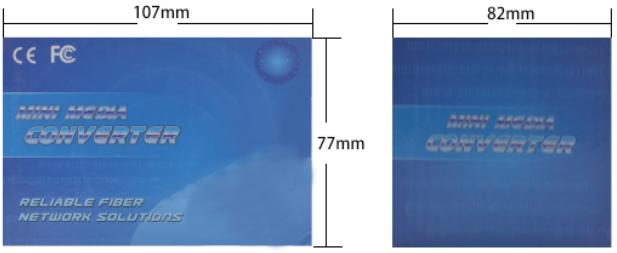

| Packing size(L×W×H):107cm× 82 cm×77 cm | ||
| Warranty | 1-years | |
Feature:
-
1 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps fiber
-
Comply with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Standard
-
Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
-
UTP port supports MDI / MDI-X auto crossover.
-
Supporting 1552 bytes packet
-
Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
-
Data Transfer Rate:
- TP: 10/100Mbps - FX: 100Mbps -
Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP) -
LED indicators: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act
-
Design of external power supply for selection by end-users

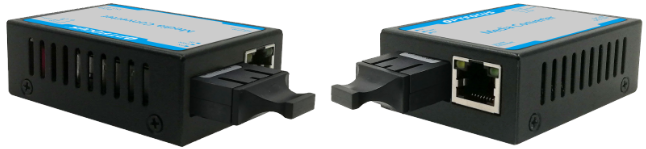

Product Exhibition
OEM&ODM Support 10/100M Ethernet Fiber Media Converter

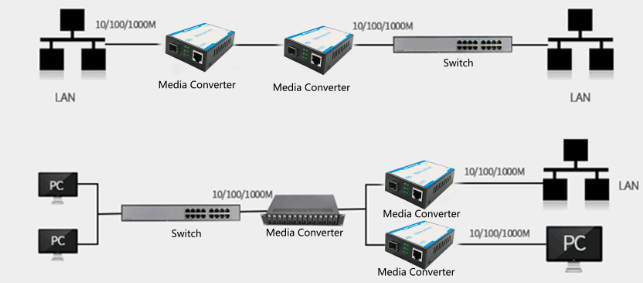

Application
