SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface
Durable unmanaged 1000 Mbps Gigabit SFP slot Mini media converter with 10/100/1000M RJ45 interface
Product Description
Technical Specifications
| Technical items | Description |
| Product Name | 10/100/1000M Media Converter |
| Product Model | OFS-GASS-1 |
| Connector | Fiber: 1* 1000Mbps, SFP |
| RJ45: 1*10/100/1000Mbps, Auto MDI/MDI-X | |
| Network Media | 10BASE-T: Cat3 ,4 ,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| 1000BASE-TX: Cat6 or later UTP(≤100 meter) | |
| Fiber Media | Fiber (Multimode): 50/125 , 62.5/125μm (the max distance up to 2km or 5km) |
| Fiber (Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km) | |
| Forwarding Mode | Store-and-Forward |
| Forwarding Rate | 1488000pps/port |
| Operating standard | EEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab IEEE802.3x |
| external Power | Input:AC 100~250VOutput:DC 5V 1A ,(default) |
| or Input:DC:-36V~-72V; Output:DC 5V 1A (Optional) | |
| Power consumption | 2.5W |
| LED | Power, Link/Act, TX 1000, 100, FDX, Link/Act. |
| Working Environment | Working temperature: -10～55℃; |
| Storage temperature: -20～75℃ | |
| Relative Humidity: 5%~95 %(no condensation) | |
| Installation | DIN-Rail or Wall mounts ,Optional ,Default device is not |
| Packing List | 1× Media Converter |
| 1×User Manual/Certificate of quality/Warranty card | |

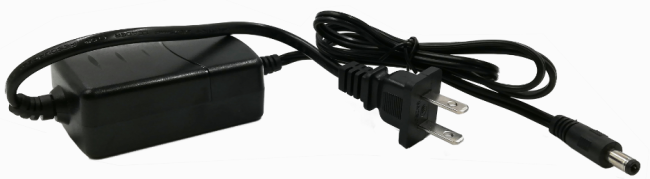

| 1×power adapter | |
| MTBF | 100 ,000 hours |
| Weight & Size | Product Weight: 0.5 KG |
| Packing weight: 1.1 KG | |

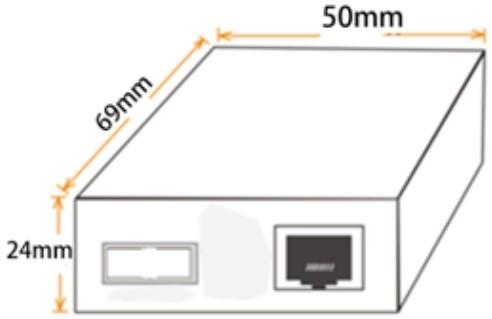

| Product size (L×W×H): 69*50*24mm | |

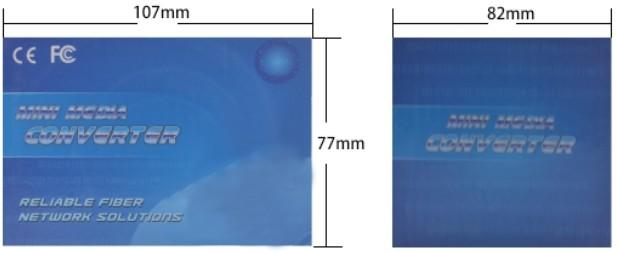

| Packing size(L×W×H): 107mm*77mm*82mm | |
| Warranty | 1-years |
| DIP Switch: | ||
| SW1 | ON | Enable LFP |
| OFF | Disable LFP | |
| SW2 | ON | Cut-through |
| OFF | Store-and-Forward | |
| SW3 | ON | traffic control on |
| OFF | traffic control off | |
| SW4 | ON | 100M |
| OFF | 1000M | |
Features:
-
1 Port 10/100/1000Mbps with Auto Uplink TM , 1 port 1000Mbps SFP
-
-
10/100/1000Mbps Auto-negotiation, auto-MDI-MDI-X
-
Comply with IEEE 802.3, IEEE 802.3u 10/100/1000Base-TX, 1000Base-FX Standard
-
Auto negotiation function allows UTP port to auto select 100M or 1000M and Full Duplex or Half Duplex
-
Supporting 1552 bytes packet
-
Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
-
Data Transfer Rate:
- TP: 10/100/1000Mbps
- FX: 1000Mbps
-
Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
-
LED indicators: Power, FX Link/Act, TX 1000, 100TX FDX, TX Link/Act
-
Supports link fault pass through function.
-
Design of internal or external power supply for selection by end-users
-
Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

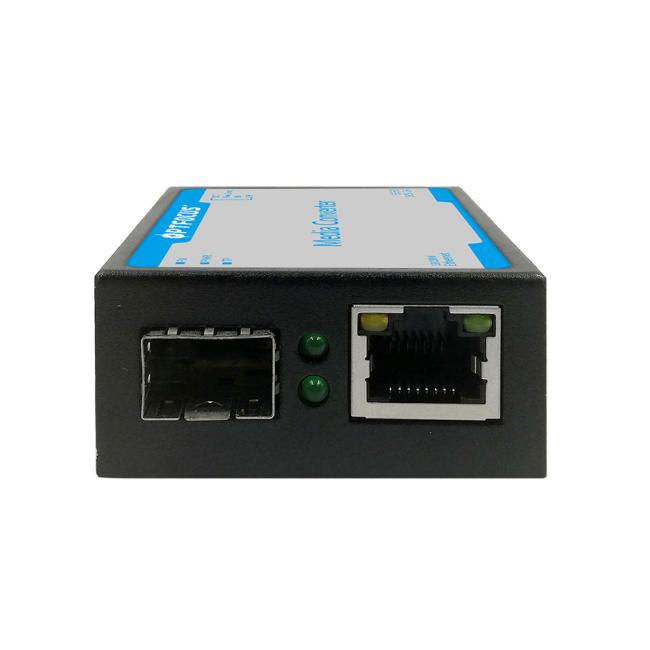

Product Exhibition
Internal Power Supply 10/100/1000M Ethernet Fiber Media Converter
10/100/1000Base-T RJ45, 1000M fiber ports (SFP), without SFP module, external PS, Mini

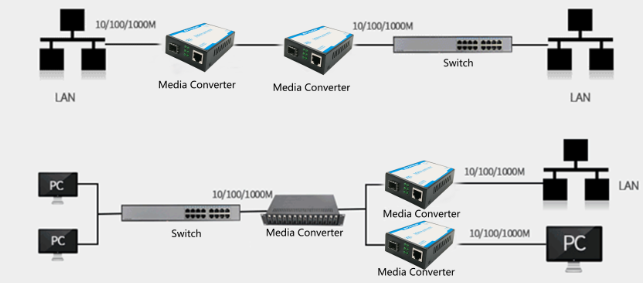

Application
