Product Description
Technical Specifications
| Technical items | Description |
| Product Name | 10/100M PoE Media Converter |
| Product Model | OFS-PE-WS01-20 |
| Interface | 1x 10/100Base-T RJ45 port |
| 1x 100Mbps Fiber port ,SC/ST/FC Optional | |
| standard | IEEE802.3i 10BASE-T |
| IEEE802.3u 100BASE-TX | |
| IEEE 802.3 10Base-T | |
| IEEE 802.3u 100Base-TX | |
| Forwarding Mode | Store-and-Forward |
| LED Indicators | Power: PWR; Link: Link/Act;PoE |
| PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports: 2 port support PoE | |
| Power Output: Max. 15.4 watts (IEEE 802.3af) | |
| Max. 30 watts (IEEE 802.3at) | |
| PoE port Auto detect AF/AT devices | |
| Output Voltage: DC52V | |
| Power Pin Assignment:4/5+;7/8- | |
| Power Supply | Input Voltage: DC52V (48～55V) |
| Power | 3W(When the PD device is not connected) |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter), | |
| Fiber Media | Multi-mode: 2KM |
| Single-mode: 20/40/60/80/100KM | |
| Forwarding Rate: | 148800pps/port |
| Working Environment | Working temperature: -10～55℃ ; Storage temperature: -20～75℃ |
| Relative Humidity: 5%~95 %( no condensation) | |
| Installation | DIN-Rail or Wall mounts,Optional,Default device is not |
| Packing List | 1× Media Converter |
| 1×User Manual/Certificate of quality/Warranty card | |

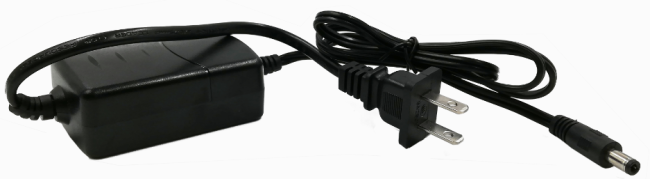

| 1×power adapter | |
| MTBF | 100,000 hours |
| Weight & Size | Product Weight: 0.5 KG |
| Packing weight: 1.1 KG | |

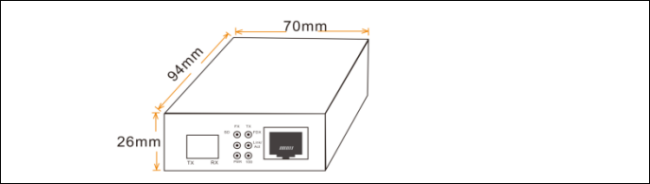

| Product size (L×W×H): 93mm× 70mm× 26mm | |

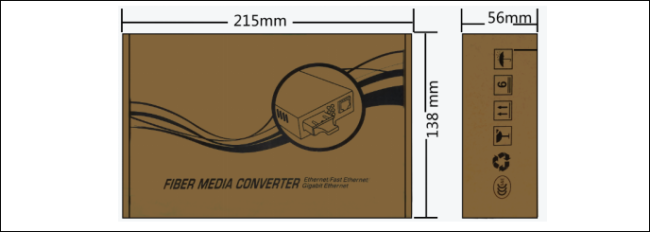

| Packing size(L×W×H): 215mm×138 mm× 56mm | |
| Warranty | 1-years |
DIP Switch:
| DIP Switch | Dip Function | ||
| AUTO | 1 | TP at auto-negotiation(default) | |
| FORCE | Force TP at 10M or at half duplex | ||
| TP | 100 | 2 | TP at 100M (default) |
| 10 | TP at 10M when TP at Force | ||
| FDX | 3 | TP at full duplex(default) | |
| HDX | TP at half duplex when TP at Force | ||
| LFP DIS | 4 | Disable Link Fault Pass-Through(default) | |
| LFP | Enable Link Fault Pass-Through | ||
Feature:
-
1 Port 10/100Mbps with Auto Uplink, 1 port 100Mbps port
-
10/100Mbps Auto-negotiation , auto-MDI-MDI-X
-
1 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)
-
LED indicators for monitoring power/link/activity
-
Supports 10/100Mbps-Full/Half-duplex
-
Supports Wall-mount and DIN-Rail installation for lightning protection,Optional.
-
Supports Broadcast Storm Control
-
Excellent heat elimination without cooling fan.
-
Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
-
Harsh industrial environment or higher requirement
-
-10℃-55℃ operating temperature range

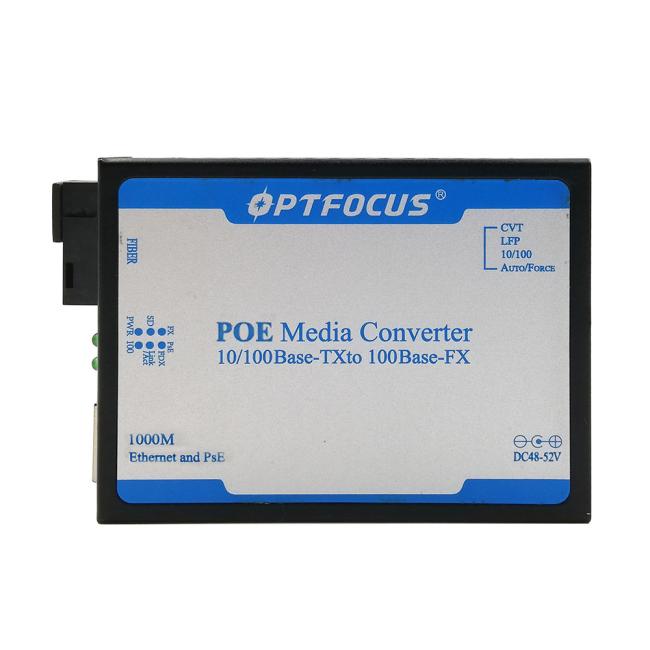

Product Exhibition
Most popular & high quality 1port 100M PSE + 1port 100M 20KM PoE SWitch

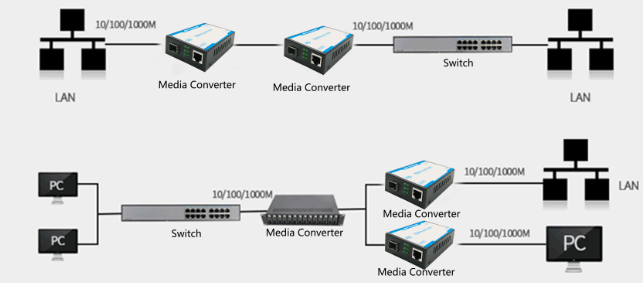

Application
