Dual Fiber SM SC Industrial Gigabit Switch For Urban Intelligent Traffic Monitoring System
Price:
Negotiable
MOQ:
1
Delivery Time:
5-7 working days
Brand:
OPTFOCUS
Product Description
1 gigabit Industrial Ethernet Switch Dual fiber SM SC with 20KM suitable for harsh environment
Product Description
| Technical items | Description |
| Product Name | 1 Port 10/100/1000M Industrial Media Converter |
| Product Model | OFS-IGS-20 |
| Interface | 1x 10/100/1000Base-T port + 1x 1000Mbps SC/ST/FC(Optional) |
| standard | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; |
| IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x; | |
| Forwarding Mode | Store-and-Forward |
| Protection | Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; Link/Act,1000 |
| Power Supply | Input Voltage: DC52V (48～57V) /Terminal block |
| Power (full load) | 3W |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter), | |
| 1000BASE-TX: Cat6 or later UTP(≤100 meter), | |
| Fiber Media | Multi-mode: 2KM |
| Single-mode: 20/40/60/80KM | |
| Performance Specification | Bandwidth: 2Gbps |
| Packet Buffer Memory:512K | |
| Packet Forwarding Rate:1488000pps/port | |
| Operating temperature | -40 ℃ ~ +85 ℃ |
| Storage temperature: | -40 ℃ ~ +85 ℃ |
| Relative humidity | 5~95% (no frost) |
| Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: |
| IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) | |
| IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) | |
| IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV | |
| IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV | |
| IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) | |
| IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) | |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail or Wall mounts |
| Packing List | 1×Industrial Media Converter (plus terminal block) |
| 1×User Manual/Certificate of quality/Warranty card | |
| 1×DIN-Rail mounting kit | |
| Certification | CE mark, commercial; FCC Part 15 Class B; VCCI Class B |
| EN 55022 (CISPR 22), Class B | |
| MTBF | 300,000 hours |
| Weight & Size | Product Weight: 0.5 KG |
| Packing weight: 1.1 KG | |

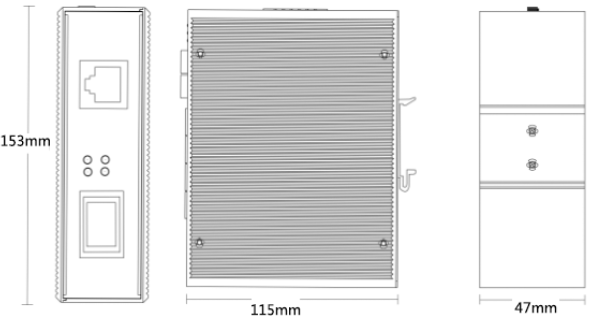

| Product size (L×W×H): 15.3cm× 11.5cm× 4.7cm | |

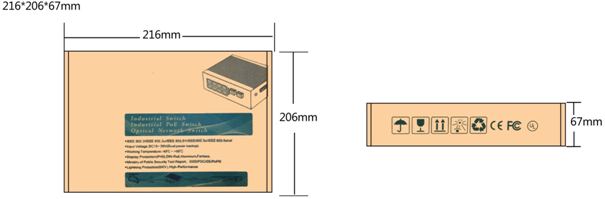

| Packing size(L×W×H): 21.6cm× 20.6 cm× 6.7 cm | |
| Warranty | 5-years |
Feature:
- 1 Port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000Mbps Fiber
- Automatic MAC address learning and aging
- Automatically support IGMP (Multicasting)
- 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
- LED indicators for monitoring power/link/activity
- Supports10/100/1000Mbps-Full/Half-duplex
- Supports Wall-mount and DIN-Rail installation for lightning protection
- Supports Daisy-Chain connection
- Supports Broadcast Storm Control
- Supports Relay output for power failure
- Super lightening protection, IP40 protection.
- Excellent heat elimination without cooling fan.
- Redundant dual DC power inputs.
- Redundant Power Inputs
- Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
- Harsh industrial environment or higher requirement
- -40℃-85℃ operating temperature range

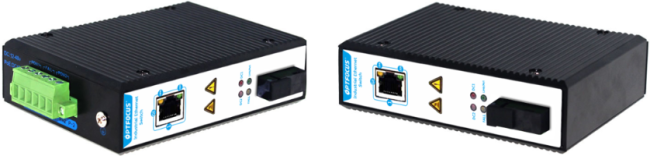

Product Exhibition
Most popular & high quality 1000M 20KM SC/ST/FC connector industrial media converter

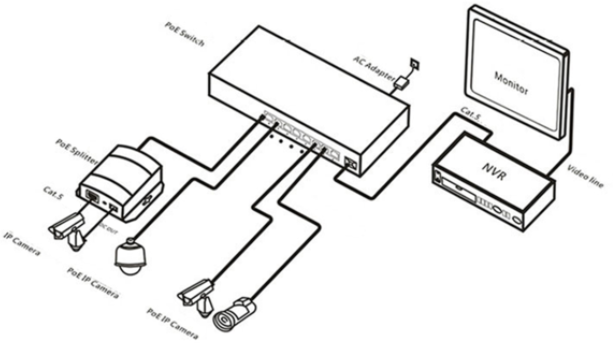

Application
