Mini Size Gigabit Media Converter 1000 Mbps 69 * 50 * 24mm For Harsh Environment
Price:
Negotiable
MOQ:
1
Delivery Time:
5-7 working days
Brand:
OPTFOCUS
Product Description
1000 Mbps Gigabit SFP Fiber media convertor with Mini size suitable for harsh environment
Product Description
| Technical items | Description |
| Product Name | 10/100/1000M Media Converter |
| Product Model | OFS-GASS-1 |
| Connector | Fiber: 1* 1000Mbps,SFP |
| RJ45: 1*10/100/1000Mbps,Auto MDI/MDI-X | |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| 1000BASE-TX: Cat6 or later UTP(≤100 meter) | |
| Fiber Media | Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km) |
| Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km) | |
| Forwarding Mode | Store-and-Forward |
| Forwarding Rate: | 1488000pps/port |
| Operating standard | EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x |
| Power | Input:AC 100~250VOutput:DC 5V 1A ,(default). |
| or Input:DC:-36V~-72V；Output:DC 5V 1A (Optional) | |
| Power consumption | 2.5W |
| LED | Power,Link/Act, TX 1000,100,FDX, Link/Act. |
| Working Environment | Working temperature: -10～55℃ ; |
| Storage temperature: -20～75℃ | |
| Relative Humidity: 5%~95 %( no condensation) | |
| Installation | DIN-Rail or Wall mounts,Optional,Default device is not |
| Packing List | 1× Media Converter |
| 1×User Manual/Certificate of quality/Warranty card | |

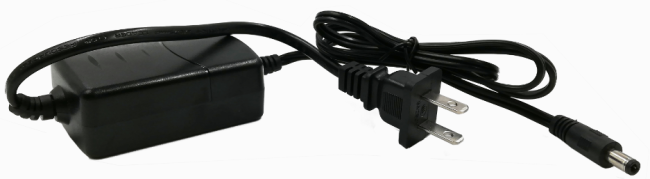

| 1×power adapter | |
| MTBF | 100,000 hours |
| Weight & Size | Product Weight: 0.5 KG |
| Packing weight: 1.1 KG | |

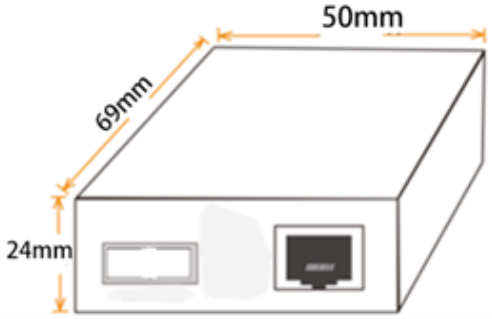

| Product size (L×W×H): 69*50*24mm | |
| Packing size(L×W×H): 107mm*77mm*82mm | |
| Warranty | 1-years |
Feature:
- 1 Port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000Mbps SFP
- 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
- Comply with IEEE 802.3, IEEE 802.3u 10/100/1000Base-TX, 1000Base-FX Standard
- Auto negotiation function allows UTP port to auto select 100M or 1000M and Full Duplex or Half Duplex
- Supporting 1552 bytes packet
- Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
- Data Transfer Rate:
- TP: 10/100/1000Mbps
- FX: 1000Mbps - Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP) - LED indicators: Power, FX Link/Act, TX 1000, ,100TX FDX, TX Link/Act
- Supports link fault pass through function.
- Design of internal or external power supply for selection by end-users
- Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

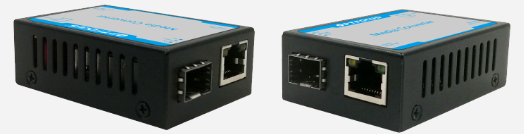

Product Exhibition
Most popular & high quality Internal Power Supply 10/100/1000M Ethernet Fiber Media Converter

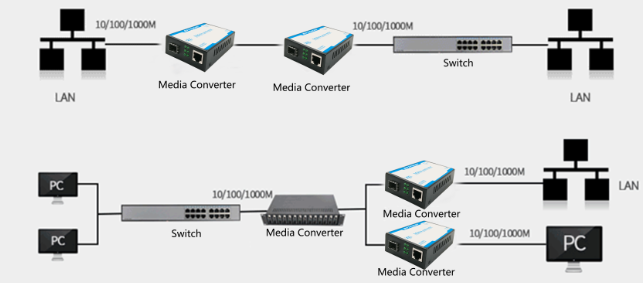

Application
