10 / 100M Single Fiber Media Converter 94.5 * 70 * 26mm 2.5W Power Consumption
Price:
Negotiable
MOQ:
1
Delivery Time:
5-7 working days
Brand:
OPTFOCUS
Product Description
High performance Fiber media convertor 10/100M single fiber SM with 20KM
Product Description
| Technical items | Description |
| Product Name | 10/100M Media Converter |
| Product Model | OFS-WS01-20 |
| Connector | Single Fiber: 1* 100Mbps,SC/ST/FC Optional |
| RJ45: 1*10/100Mbps,Auto MDI/MDI-X | |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| Fiber Media | Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km) |
| Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km) | |
| Forwarding Mode | Store-and-Forward |
| Forwarding Rate: | 148800pps/port |
| Operating standard | EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x |
| Power | Input:AC 100~250VOutput:DC 5V 1A ,(default). |
| or Input:DC:-36V~-72V；Output:DC 5V 1A .(Optional) | |
| USB power supply(Optional). | |
| Power consumption | 2.5W |
| LED | Power, FX 100,Link/Act, TX 100,FDX, Link/Act. |
| Working Environment | Working temperature: -10～55℃ ; |
| Storage temperature: -20～75℃ | |
| Relative Humidity: 5%~95 %( no condensation) | |
| Installation | DIN-Rail or Wall mounts,Optional,Default device is not |
| Packing List | 1× Media Converter |
| 1×User Manual/Certificate of quality/Warranty card | |

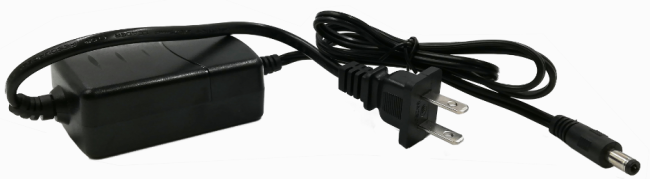

| 1×power adapter | |
| MTBF | 100,000 hours |
| Weight & Size | Product Weight: 0.5 KG |
| Packing weight: 1.1 KG | |

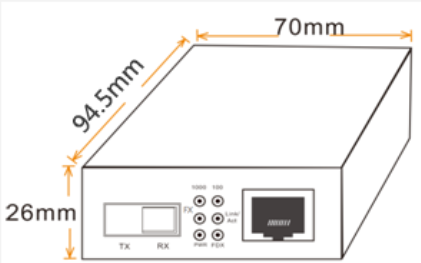

| Product size (L×W×H): 94.5*70*26mm | |

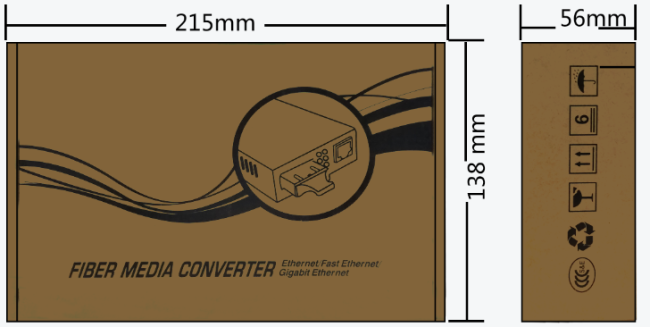

| Packing size(L×W×H):215*138*56mm | |
| Warranty | 1-years |
DIP Switch:
| DIP Switch | Dip Function | ||
| AUTO | 1 | TP at auto-negotiation(default) | |
| FORCE | Force TP at 10M or at half duplex | ||
| TP | 100 | 2 | TP at 100M (default) |
| 10 | TP at 10M when TP at Force | ||
| FDX | 3 | TP at full duplex(default) | |
| HDX | TP at half duplex when TP at Force | ||
| LFP DIS | 4 | Disable Link Fault Pass-Through(default) | |
| LFP | Enable Link Fault Pass-Through | ||
Feature:
- 1 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps fiber
- Comply with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Standard
- Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
- UTP port supports MDI / MDI-X auto crossover.
- Supporting 1552 bytes packet
- Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
- Data Transfer Rate:
- TP: 10/100Mbps - FX: 100Mbps - Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP) - LED indicators: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act
- Supports link fault pass through function.
- Design of internal or external power supply for selection by end-users
- Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

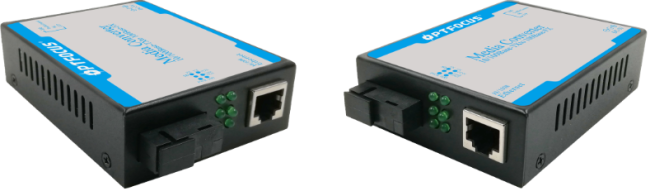

Product Exhibition
Most popular & high quality LFP&Jumbo Frame Support 10/100M Ethernet Fiber Media Converter

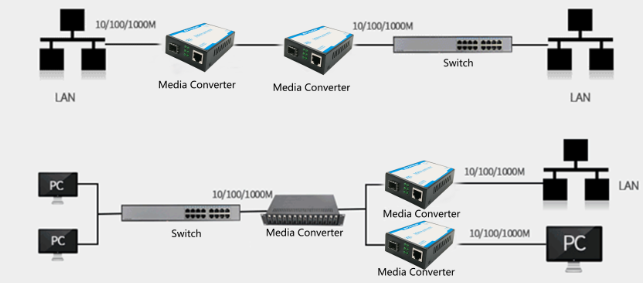

Application
