Durable 10 / 100M Fiber Optic Ethernet Switch 1310nm With LED Indicators
Price:
Negotiable
MOQ:
1
Delivery Time:
5-7 working days
Brand:
OPTFOCUS
Product Description
Durable 10 / 100M Fiber Optic Switch 1FX SM 1310nm 20KM and 2TX ports
Product Description
| Technical items | Description |
| Product Name | 2-port 10/100Mbps + 1-port 100Mbps Fiber |
| Product Model | OFS-SF1T2-20 |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x; |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| Fiber Media | Multi-mode: 2KM |
| Single-mode: 20/40/60/80/100KM | |
| Fiber port :SC/ST/FC Optional | |
| Performance Specification | Bandwidth: 1Gbps |
| Packet Buffer Memory:1M | |
| Packet Forwarding Rate:148800pps/port | |
| MAC Address Table:1K | |
| Forwarding Mode | Store-and-Forward |
| LED Indicators | Power: PWR; FX Link;TP 100 ;TP Link/Act |
| Power Supply | Input: AC100 ～ 250V, |
| Output:DC5V 2A. | |
| Max power | 3W |
| Environment temperature | 0 ～ +55℃ |
| Storage temperature | -20 ～ +70℃ |
| Humidity | 5% ～ 90% |
| Dimensions | 26 × 70 × 93mm |
| Installation | DIN-Rail or Wall mounts,Optional,Default device is not |
| Packing List | 1× Switch |
| 1×User Manual/Certificate of quality/Warranty card | |
| 1×power adapter | |
| MTBF | 100,000 hours |
| Weight & Size | Product Weight: 0.5 KG |
| Packing weight: 1.1 KG | |
| Product size (L×W×H): 140mm×93mm× 28mm | |

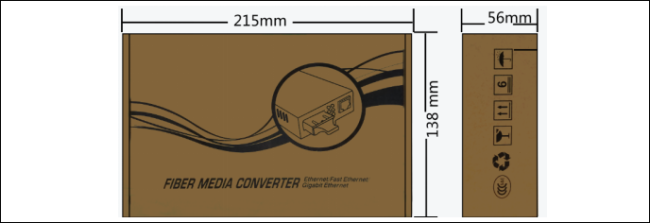

| Packing size(L×W×H): 215mm×138 mm× 56mm | |
| Warranty | 1-years |
Feature:
- 2 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps Fiber port.
- Automatic MAC address learning and aging
- 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
- LED indicators for monitoring power/link/activity
- Supports10/100Mbps-Full/Half-duplex
- Supports Wall-mount and DIN-Rail installation ,Optional.
- Supports Broadcast Storm Control
- Excellent heat elimination without cooling fan.
- Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
- Harsh environment or higher requirement
- -10℃-55℃operating temperature range.
Product Exhibition
Most popular & high quality 16-port 10/100Mbps + 1-port 1000Mbps SFP Fiber Switch
Application
