140mm × 93mm × 28mm Fiber Optic Switch For Urban Intelligent Traffic Monitoring System
Price:
Negotiable
MOQ:
1
Delivery Time:
5-7 working days
Brand:
OPTFOCUS
Product Description
High reliability gigabit Fiber Optic Switch 10 / 100 / 1000M dual fiber and 4 rj45
Product Description
| Technical items | Description |
| Product Name | 4-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber |
| Product Model | OFS-GSF2T4 |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| 1000BASE-TX: Cat6 or later UTP(≤100 meter) | |
| Fiber Media | Multi-mode:550M- 2KM |
| Single-mode: 20/40/60/80/100KM | |
| Performance Specification | Bandwidth: 12Gbps |
| Packet Forwarding Rate:1488000pps/port | |
| MAC Address Table:4K | |
| Forwarding Mode | Store-and-Forward |
| LED Indicators | Power: PWR;FX Link/Act;TP 1000; |
| TP Link/Act | |
| Power Supply | Adapter: |
| Input: AC100 ~ 250V, Output:DC5V 2A. | |
| Max power | 5W |
| Environment temperature | 0 ～ +55℃ |
| Storage temperature | -20 ～ +70℃ |
| Humidity | 5% ～ 90% |
| Installation | DIN-Rail or Wall mounts,Optional,Default device is not |
| Packing List | 1× Switch |
| 1×User Manual/Certificate of quality/Warranty card | |
| 1×power adapter | |
| MTBF | 100,000 hours |
| Weight & Size | Product Weight: 0.5 KG |
| Packing weight: 1.1 KG | |

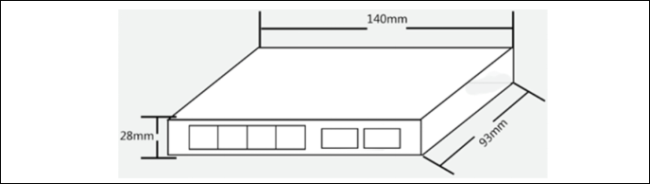

| Product size (L×W×H): 140mm×93mm× 28mm | |

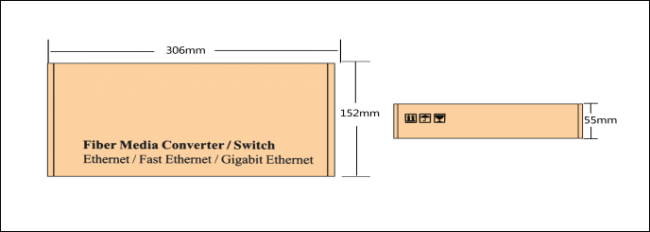

| Packing size(L×W×H): 306mm×152 mm× 55mm | |
| Warranty | 1-years |
Feature:
- 4 Port 10/100/1000Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Slot
- Automatic MAC address learning and aging
- 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
- LED indicators for monitoring power/link/activity
- Supports10/100/1000Mbps-Full/Half-duplex
- Supports Wall-mount and DIN-Rail installation ,Optional.
- Supports Broadcast Storm Control
- Excellent heat elimination without cooling fan.
- Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
- Harsh environment or higher requirement
- -10℃-55℃operating temperature range.

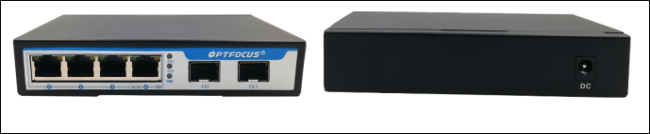

Product Exhibition
Most popular & high quality 4ports 10/100/1000M +2ports 1000M SFP Fiber Switch

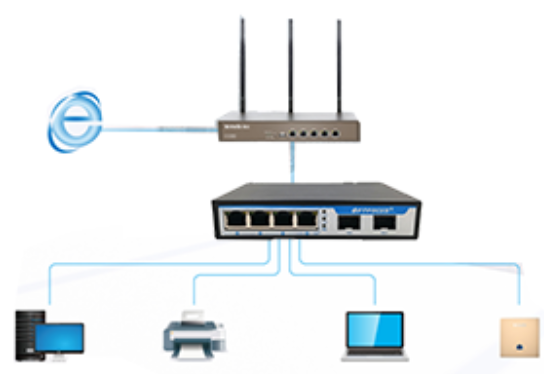

Application
